FRAME FITTINGS

VN1500L3 VULCAN 1500 NOMAD FI 2002 USA CALIFORNIA CANADA

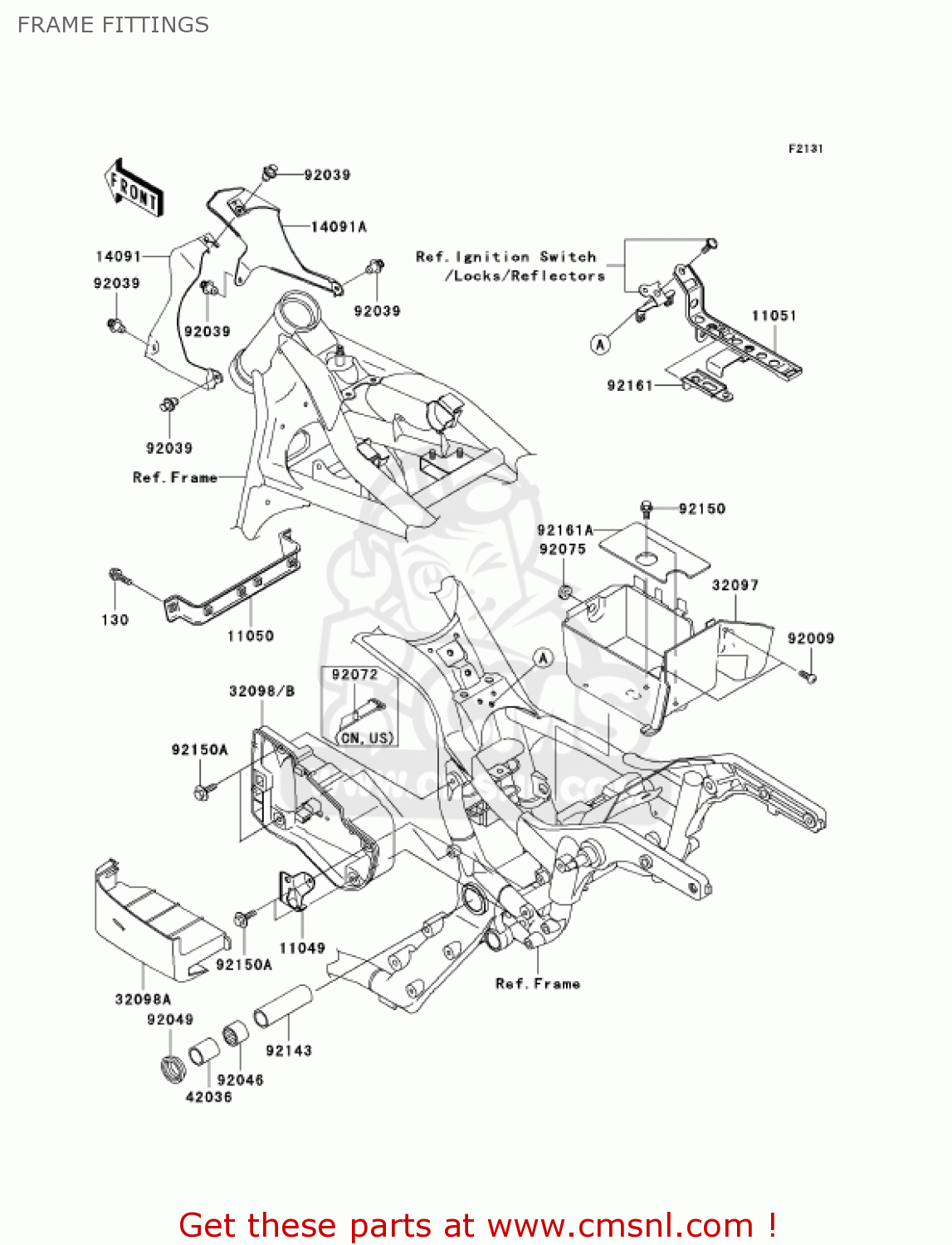

Frame fittings diagram VN1500L3 VULCAN 1500 NOMAD FI 2002 USA CALIFORNIA CANADA

FRAME FITTINGS VN1500L3 VULCAN 1500 NOMAD FI 2002 USA CALIFORNIA CANADA
FRAME FITTINGS VN1500L3 VULCAN 1500 NOMAD FI 2002 USA CALIFORNIA CANADA
FRAME FITTINGS VN1500L3 VULCAN 1500 NOMAD FI 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
11049
110491600
ref: 11049
BRACKET,LOCK
€ 12.50
11050
110501694
ref: 11050
BRACKET,REGULATOR
€ 18.50
11051
110511798
ref: 11051
BRACKET,BATTERY BAND
110511798
€ 20.50
14091
140911285
ref: 14091
COVER,HEAD PIPE,LH
€ 90.00
14091A
140911286
ref: 14091A
COVER,HEAD PIPE,RH
€ 87.00
32097
320971175
ref: 32097
CASE-BATTERY
€ 27.00
32098
320981125
ref: 32098
[CN,US
CASE-TOOL
€ 112.00
32098A
320981126
ref: 32098A
CASE-TOOL,COVER
€ 97.50
32098B
320981127
ref: 32098B
[CA]
TOOLCASE
€ 74.50
42036
420361330
ref: 42036
SLEEVE,L=45
420361330
€ 19.50
92009
920091402
ref: 92009
SCREW,6X10
920091402
€ 1.50
92039
920391227
ref: 92039
RIVET
920391227
€ 1.00
92046
920461202
ref: 92046
BEARING-NEEDLE,BM2824
920461202
€ 25.00
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92072
920721331
ref: 92072
[CN,US
BAND,L=470
920721331
€ 16.50
92075
920751067
ref: 92075
DAMPER,SIDE COVER
920751067
€ 3.00
92143
921431878
ref: 92143
COLLAR,20.2X27X90
921431878
€ 22.50
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
92150A
921501198
ref: 92150A
BOLT
921501198
€ 2.50
92161
921611096
ref: 92161
DAMPER,BATTERY BAND
€ 7.00
92161A
921611097
ref: 92161A
DAMPER,BATTERY
921611097
€ 3.50
