Genuine VN Kawasaki Parts delivered quickly!


RADIATOR

VN1500L1 VULCAN 1500 NOMAD FI 2000 USA CALIFORNIA CANADA

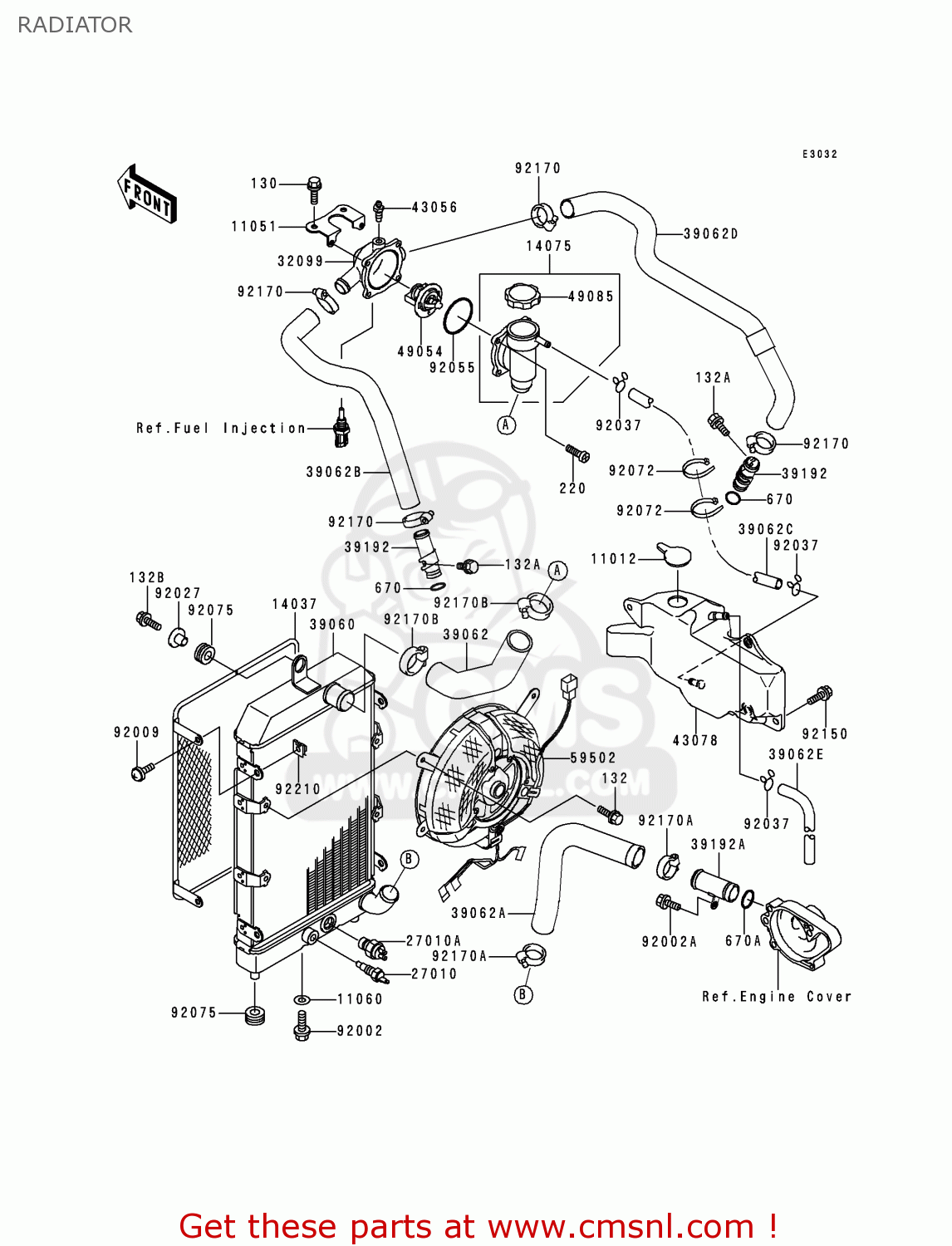

Radiator diagram VN1500L1 VULCAN 1500 NOMAD FI 2000 USA CALIFORNIA CANADA

RADIATOR VN1500L1 VULCAN 1500 NOMAD FI 2000 USA CALIFORNIA CANADA
RADIATOR VN1500L1 VULCAN 1500 NOMAD FI 2000 USA CALIFORNIA CANADA
RADIATOR VN1500L1 VULCAN 1500 NOMAD FI 2000 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132B
132J0625
ref: 132B
BOLT-FLANGED-SMALL
132J0625
€ 2.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
11012
110121585
ref: 11012
CAP
110121585
€ 4.50
11051
110511535
ref: 11051
BRACKET,THERMOSTAT CA
€ 6.00
11060
110601767
ref: 11060
GASKET,DRAIN PLUG (NAS)
110601767
€ 2.00
14037
140371251
ref: 14037
SCREEN
€ 52.00
14075
140751068
ref: 14075
CAP-ASSY
140751068
€ 134.00
27010
270101305
ref: 27010
SWITCH
270101305
€ 60.00
27010A
270101364
ref: 27010A
SWITCH,FAN
270101364
€ 117.00
32099
320991201
ref: 32099
CASE,THERMOSTAT
320991201
€ 36.50
39060
390601165
ref: 39060
RADIATOR
390601165
€ 607.50
39062
390621696
ref: 39062
HOSE-COOLING,THERMO-R
390621696
€ 22.00
39062A
390621697
ref: 39062A
HOSE-COOLING,RADIATOR
390621697
€ 22.00
39062B
390621785
ref: 39062B
HOSE-COOLING,FR HEAD-
€ 20.00
39062C
390621796
ref: 39062C
HOSE-COOLING,THERMO-R
390621796
€ 13.50
39062D
390621813
ref: 39062D
HOSE-COOLING,HEAD,RR-
€ 26.50
39062E
390621814
ref: 39062E
HOSE-COOLING,OVERFLOW
€ 16.00
39192
391921094
ref: 39192
PIPE-WATER
391921094
€ 15.50
39192A
391921096
ref: 39192A
PIPE-WATER
391921096
€ 18.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781164
ref: 43078
RESERVOIR
€ 26.00
49054
490541067
ref: 49054
THERMOSTAT
490541067
€ 46.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
59502
595021127
ref: 59502
FAN-ASSY
€ 596.00
92002
920021311
ref: 92002
BOLT,FLANGED,10X10
920021311
€ 3.50
92002A
920021569
ref: 92002A
BOLT,6X12
920021569
€ 2.50
92009
920091402
ref: 92009
SCREW,6X10
920091402
€ 1.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92072
920721237
ref: 92072
BAND,L=250
920721237
€ 2.00
92075
920751690
ref: 92075
DAMPER,10X24X12
920751690
€ 3.00
92150
921501392
ref: 92150
BOLT
921501392
€ 3.00
92170
921701032
ref: 92170
CLAMP,COOLING HOSE
921701032
€ 16.50
92170A
921701034
ref: 92170A
CLAMP,COOLING HOSE
921701034
€ 14.00
92170B
921701284
ref: 92170B
CLAMP,CABLE
921701284
€ 7.50
92210
922101125
ref: 92210
NUT
922101125
€ 3.00
670
670B2014
ref: 670
O RING,14MM
670B2014
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
