Genuine VN Kawasaki Parts delivered quickly!


AIR CLEANER

VN1500L1 VULCAN 1500 NOMAD FI 2000 USA CALIFORNIA CANADA

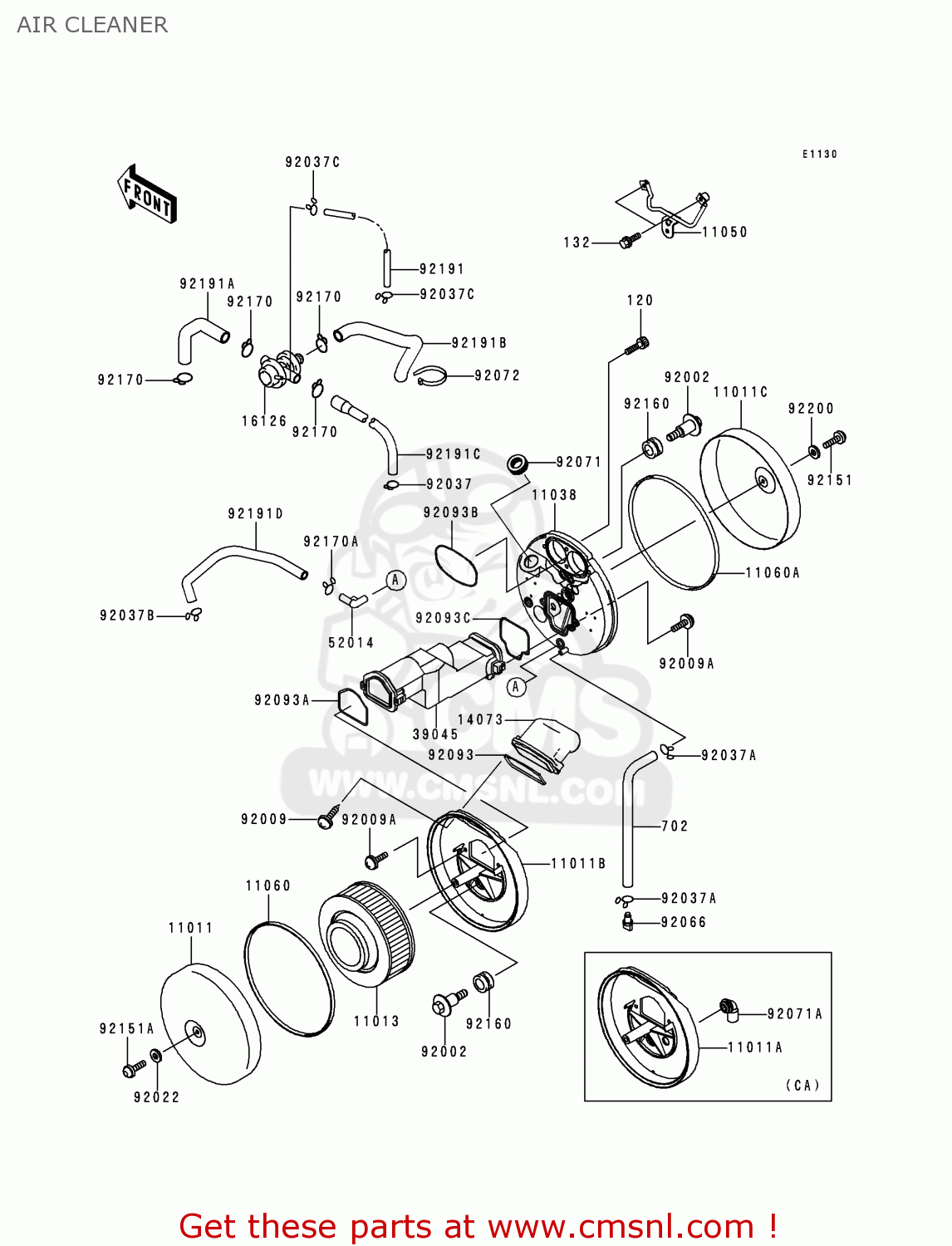

Air cleaner diagram VN1500L1 VULCAN 1500 NOMAD FI 2000 USA CALIFORNIA CANADA

AIR CLEANER VN1500L1 VULCAN 1500 NOMAD FI 2000 USA CALIFORNIA CANADA
AIR CLEANER VN1500L1 VULCAN 1500 NOMAD FI 2000 USA CALIFORNIA CANADA
AIR CLEANER VN1500L1 VULCAN 1500 NOMAD FI 2000 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11011
110111489
ref: 11011
CASE-AIR FILTER,OUTSI
110111489
€ 65.00
11011A
110111533
ref: 11011A
CA
AIR FILTER CASE,LH
€ 48.50
11011B
110111570
ref: 11011B
CNUS
CASE-AIR FILTER,LH
110111570
€ 73.50
11011C
110111576
ref: 11011C
CASE-AIR FILTER,OUTSI
€ 72.50
11013
110131248
ref: 11013
ELEMENT-AIR FILTER
110131248
€ 40.00
11038
110381119
ref: 11038
CASE-ASSY-AIR FILTER,
€ 57.50
11050
110501510
ref: 11050
BRACKET,AIR FILTER,LH
110501510
€ 24.00
11060
110601736
ref: 11060
GASKET,AIR FILTER CAS (NAS)
110601736
€ 13.00
11060A
110601968
ref: 11060A
GASKET,AIR FILTER CAS (NAS)
110601968
€ 12.50
14073
140731739
ref: 14073
DUCT,AIR FILTER
€ 19.00
16126
161261384
ref: 16126
VALVE,AIR SWITCH
€ 156.50
39045
390451060
ref: 39045
DUCT-ASSY,CENTER
€ 110.00
52014
520141083
ref: 52014
ELBOW
520141083
€ 5.50
92002
920021595
ref: 92002
BOLT,HEAD COVER
920021595
€ 8.50
92009
920091264
ref: 92009
SCREW,TAPPING,5X16
920091264
€ 0.50
92009A
920091905
ref: 92009A
SCREW
920091905
€ 1.50
92022
92022193
ref: 92022
WASHER,6.5X20X1.6,WHI
92022193
€ 3.50
92037
920371468
ref: 92037
CLAMP
€ 4.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371593
ref: 92037B
CLAMP
920371593
€ 5.00
92037C
920371712
ref: 92037C
CLAMP
920371712
€ 3.00
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92071
920711028
ref: 92071
GROMMET AIR FILTER
920711028
€ 4.50
92071A
920711114
ref: 92071A
CA
GROMMET,AIR FILTER
€ 16.50
92072
920721197
ref: 92072
BAND
920721197
€ 5.00
92093
920931408
ref: 92093
SEAL,AIR FILTER CASE
920931408
€ 7.50
92093A
920931459
ref: 92093A
SEAL,DUCT,LH
920931459
€ 4.50
92093B
920931485
ref: 92093B
SEAL
920931485
€ 4.00
92093C
920931491
ref: 92093C
SEAL,DUCT,RH
920931491
€ 4.00
92151
921511438
ref: 92151
BOLT,8X14
921511438
€ 1.50
92151A
921511503
ref: 92151A
BOLT,6X14
921511503
€ 1.50
92160
921601594
ref: 92160
DAMPER
921601594
€ 3.00
92170
921701445
ref: 92170
CLAMP,TUBE
921701445
€ 3.00
92170A
921701695
ref: 92170A
CLAMP
921701695
€ 1.50
92191
921911312
ref: 92191
TUBE,THROTTLE-VALVE
€ 6.00
92191A
921911359
ref: 92191A
TUBE,HEAD,FR-VALVE
921911359
€ 6.50
92191B
921911360
ref: 92191B
TUBE,VALVE-CLEANER
€ 13.00
120
120S0616
ref: 120
BOLT-SOCKET,6X16
120S0616
€ 1.00
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
132J0625
€ 2.50
702
702A07260
ref: 702
TUBE-RUBBER,7X10X260
702A07260
€ 4.50
92191C
921911369
ref: 92191C
TUBE,HEAD,RR-VALVE
€ 16.00
92191D
921911406
ref: 92191D
TUBE,BREATHER
921911406
€ 17.00
92200
922001463
ref: 92200
WASHER,8.5X20X1.6
922001463
€ 1.50
