RIGHT ENGINE COVER(S)(VN1500-H1)

VN1500H1 VN1500 CLASSIC TOURER 1998 AUSTRIA FG ST

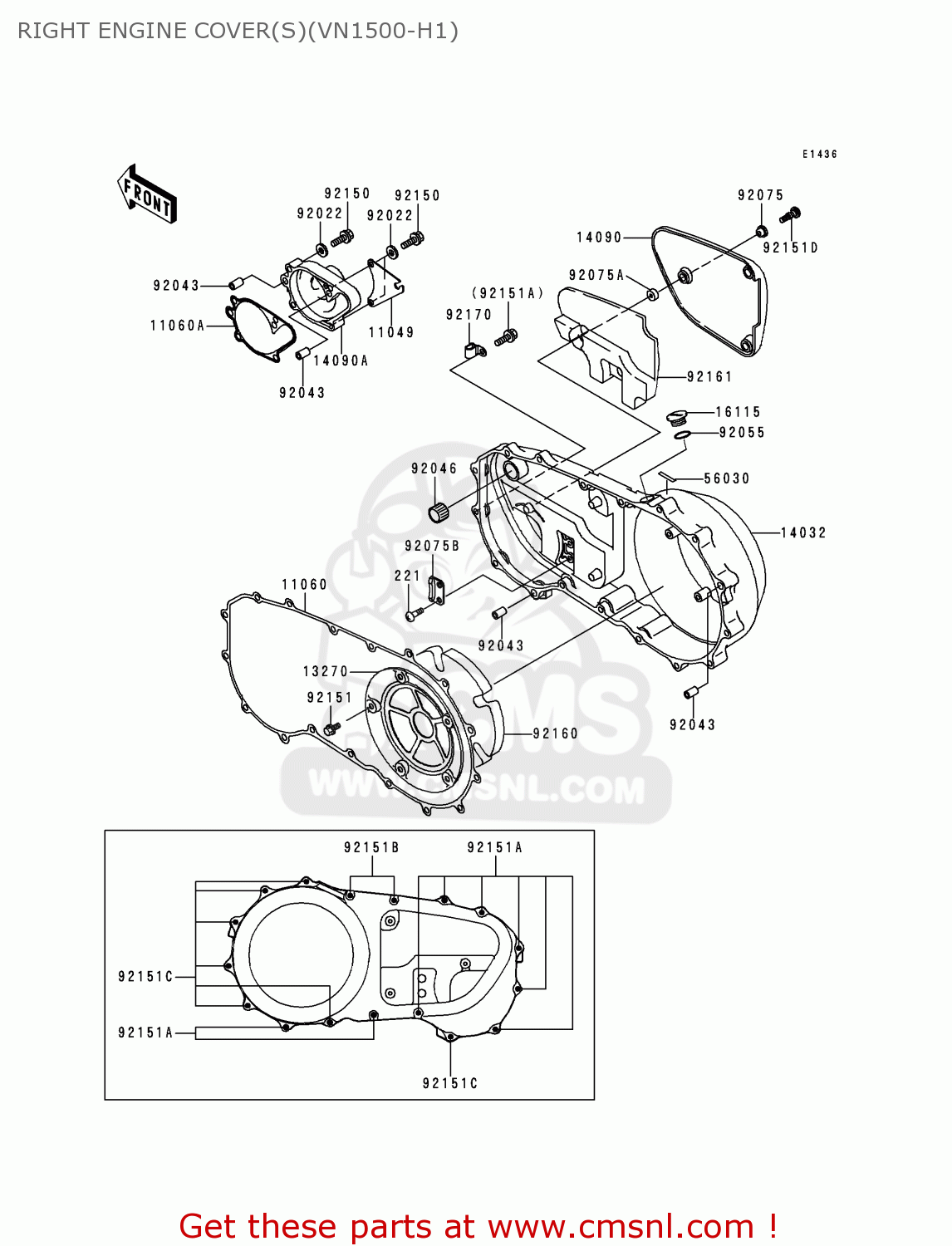

Right engine cover(s)(vn1500-h1) diagram VN1500H1 VN1500 CLASSIC TOURER 1998 AUSTRIA FG ST

RIGHT ENGINE COVER(S)(VN1500-H1) VN1500H1 VN1500 CLASSIC TOURER 1998 AUSTRIA FG ST
RIGHT ENGINE COVER(S)(VN1500-H1) VN1500H1 VN1500 CLASSIC TOURER 1998 AUSTRIA FG ST
RIGHT ENGINE COVER(S)(VN1500-H1) VN1500H1 VN1500 CLASSIC TOURER 1998 AUSTRIA FG ST
prices are in EUR
ref
part #
description
quantity
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
221B0612
€ 1.50
11049
110491789
ref: 11049
BRACKET
110491789
€ 4.00
11060
110601121
ref: 11060
GASKET,CLUTCH COVER (NAS)
110601121
€ 27.50
11060A
110601124
ref: 11060A
GASKET,WATER PUMP COV (NAS)
110601124
€ 8.00
13270
132701592
ref: 13270
PLATE
€ 14.00
14032
140321435
ref: 14032
COVER-CLUTCH
€ 427.50
14090
140901678
ref: 14090
COVER,CLUTCH OUTER
€ 146.00
14090A
140901932
ref: 14090A
COVER,WATER PUMP
140901932
€ 44.50
16115
161151063
ref: 16115
CAP-OIL FILLER
161151063
€ 19.00
56030
560301184
ref: 56030
LABEL,OIL CAPACITY
€ 2.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92046
920461163
ref: 92046
BEARING-NEEDLE,HK1212
920461163
€ 13.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92075
920751855
ref: 92075
DAMPER
920751855
€ 5.50
92075A
920751856
ref: 92075A
DAMPER
920751856
€ 6.00
92075B
920751905
ref: 92075B
DAMPER
920751905
€ 6.00
92150
921501021
ref: 92150
BOLT,6X30
921501021
€ 2.50
92151
921511064
ref: 92151
BOLT,6X10
921511064
€ 1.50
92151A
921511130
ref: 92151A
BOLT,6X25
921511130
€ 2.00
92151B
921511134
ref: 92151B
BOLT,6X30
921511134
€ 1.50
92151C
921511135
ref: 92151C
BOLT,6X35
921511135
€ 2.50
92151D
921511273
ref: 92151D
BOLT,SOCKET,6X22.5
€ 4.50
92160
921601716
ref: 92160
DAMPER
921601716
€ 18.00
92161
921611139
ref: 92161
DAMPER
921611139
€ 28.00
92170
921701804
ref: 92170
CLAMP
921701804
€ 3.00
