FRONT HUB

VN1500H1 VN1500 CLASSIC TOURER 1998 AUSTRIA FG ST

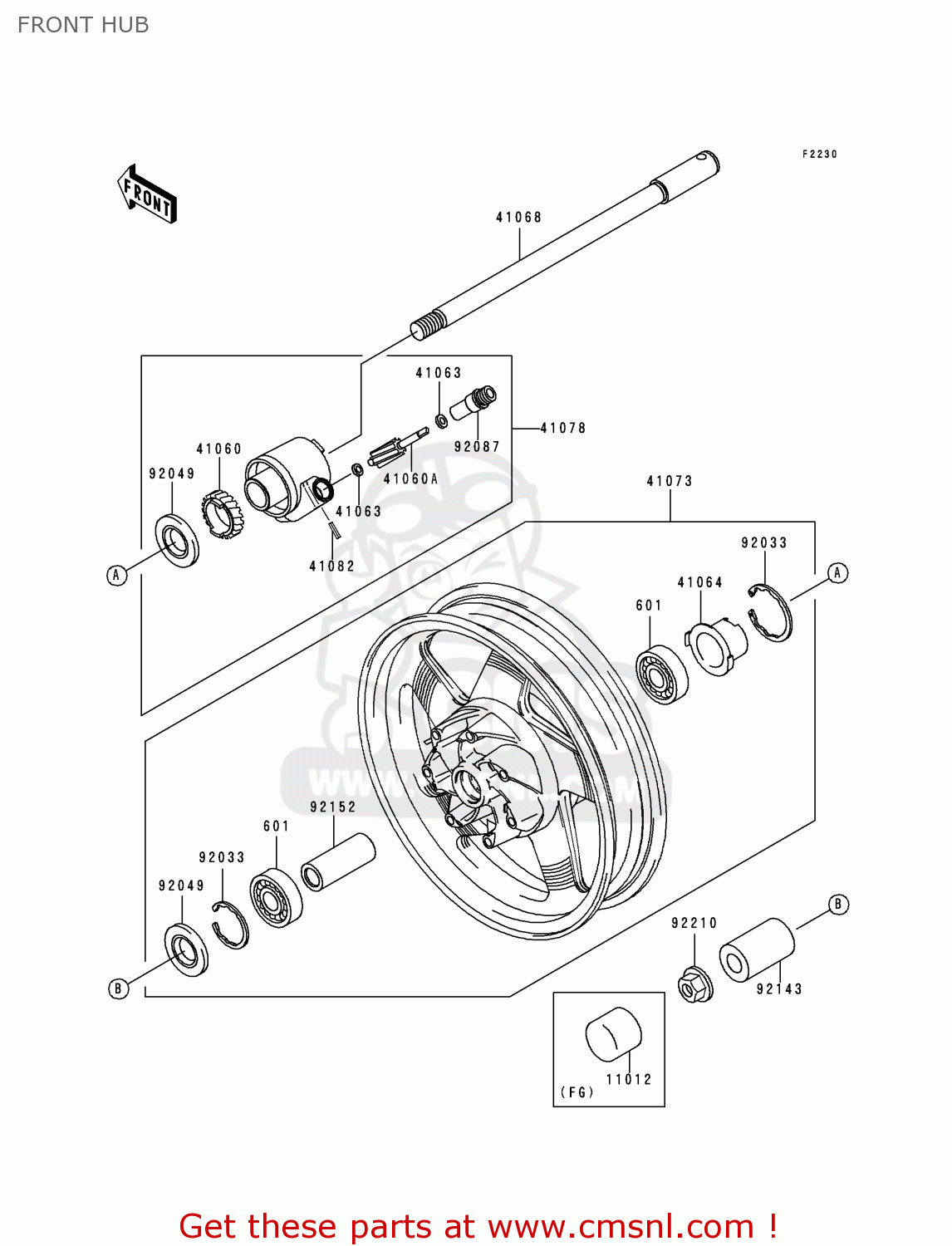

Front hub diagram VN1500H1 VN1500 CLASSIC TOURER 1998 AUSTRIA FG ST

prices are in EUR

ref

part #

description

quantity

601

601B6004UU
ref: 601

BEARING-BALL,#6004UUC

€ 27.00

11012

110121592
ref: 11012
FG

CAP,AXLE NUT

€ 5.00

41060

410601160
ref: 41060

GEAR-METER SCREW,25T

€ 17.50

41060A

410601161
ref: 41060A

GEAR-METER SCREW,9T

€ 17.50

41063

41063001
ref: 41063

WASHER-THRST SPD PINI

€ 3.00

41064

410641056
ref: 41064

RECEIVER-SPEEDOMETER

€ 16.00

41068

410681411
ref: 41068

AXLE,FR

€ 59.50

41073

410731631CX
ref: 41073

WHEEL-ASSY,FR,SILVER

€ 820.00

41078

410781103
ref: 41078

CASE-ASSY-METER GEAR

€ 117.00

41082

41082001
ref: 41082

PIN-SPRING

€ 2.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92087

920871056
ref: 92087

BUSHING-METER GEAR

€ 14.00

92143

921431837
ref: 92143

COLLAR,FR AXLE,LH,L=4

€ 21.50

92152

921521057
ref: 92152

COLLAR,FR HUB,L=100

€ 12.50

92210

922101158
ref: 92210

NUT,FLANGED,18MM

€ 7.00

FRONT HUB

all assemblies
