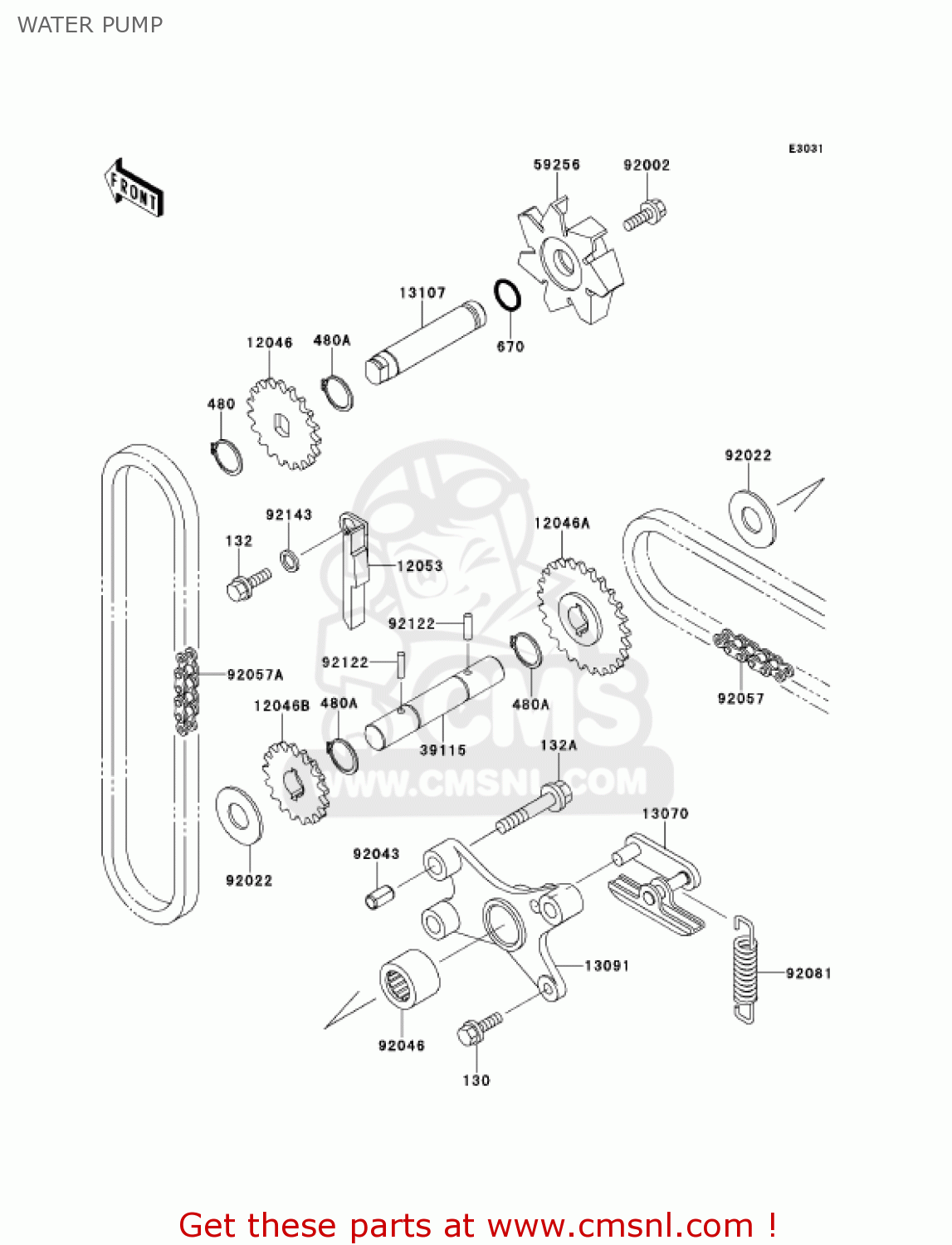

WATER PUMP

ref

part #

description

quantity

130

130D0514
ref: 130

BOLT-FLANGED

€ 2.00

132

132G0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0635
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

480A

480J1200
ref: 480A

CIRCLIP-TYPE-C,12MM

€ 0.50

670

670D1509
ref: 670

O RING,9MM

€ 3.00

12046

120461079
ref: 12046

SPROCKET,OIL PUMP,19T

€ 16.00

12046A

120461096
ref: 12046A

SPROCKET,CRANK IDLER,

€ 33.00

12046B

120461097
ref: 12046B

SPROCKET,IDLER,17T

€ 21.00

12053

120531227
ref: 12053

GUIDE-CHAIN

€ 11.50

13070

130701178
ref: 13070

GUIDE

€ 34.50

13091

130911471
ref: 13091

HOLDER

€ 26.00

13107

131071196
ref: 13107

SHAFT,IMPELLER

€ 19.00

39115

391151058
ref: 39115

SHAFT-IDLER

€ 17.00

59256

592561066
ref: 59256

IMPELLER

€ 29.50

92002

920021902
ref: 92002

BOLT,6X12

€ 1.50

92022

920221852
ref: 92022

WASHER,12X27.5X1.0

€ 3.00

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92046

920461163
ref: 92046

BEARING-NEEDLE,HK1212

€ 13.50

92057

920571230
ref: 92057

CHAIN,BS25HX46L

€ 4.00

92057A

920571231
ref: 92057A

CHAIN,BS25HX44L

€ 4.00

92081

920811791
ref: 92081

SPRING,IDLER SHAFT

€ 3.00

92122

921221126
ref: 92122

ROLLER,3X15.8

€ 2.50

92143

921431123
ref: 92143

COLLAR

€ 3.00
