Genuine VN Kawasaki Parts delivered quickly!


FRONT FORK

VN1500G1A VULCAN 1500 NOMAD 1999 USA CALIFORNIA CANADA

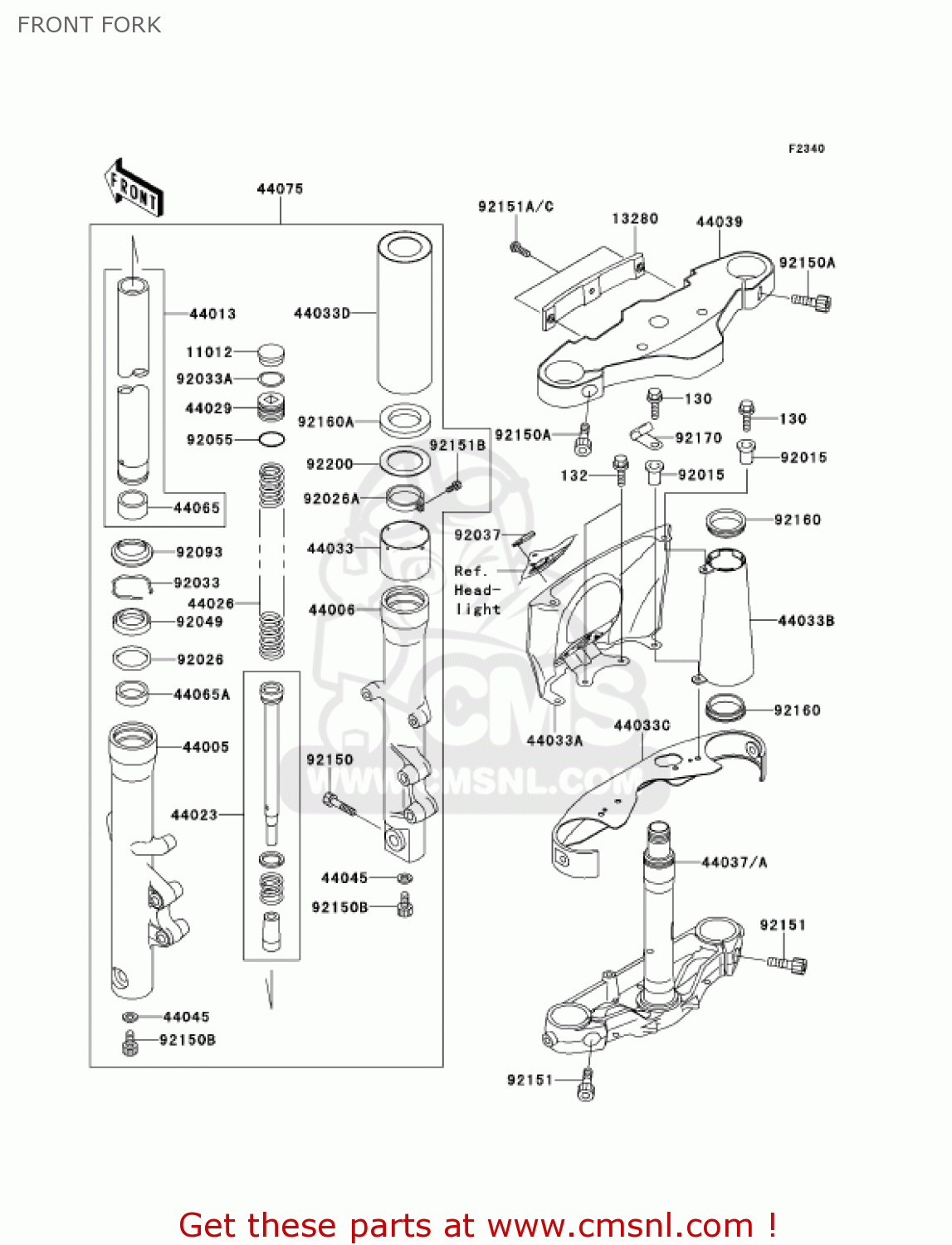

Front fork diagram VN1500G1A VULCAN 1500 NOMAD 1999 USA CALIFORNIA CANADA

FRONT FORK VN1500G1A VULCAN 1500 NOMAD 1999 USA CALIFORNIA CANADA
FRONT FORK VN1500G1A VULCAN 1500 NOMAD 1999 USA CALIFORNIA CANADA
FRONT FORK VN1500G1A VULCAN 1500 NOMAD 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121618
ref: 11012
CAP,FORK TOP
110121618
€ 10.00
13280
132801070
ref: 13280
HOLDER
€ 44.00
44005
440051384
ref: 44005
PIPE-LEFT FORK OUTER
€ 338.50
44006
440061384
ref: 44006
PIPE-RIGHT FORK OUTER
€ 396.00
44013
440131450
ref: 44013
PIPE-FORK INNER
€ 263.50
44023
440231129
ref: 44023
CYLINDER-SET-FORK
€ 106.50
44026
440261676
ref: 44026
SPRING-FRONT FORK
€ 67.00
44029
440291125
ref: 44029
SEAT-FORK SPRING
€ 29.50
44033
440331223
ref: 44033
COVER-FORK
440331223
€ 12.00
44033A
440331228
ref: 44033A
COVER-FORK,CNT
€ 85.50
44033B
440331229
ref: 44033B
COVER-FORK,UPP
440331229
€ 71.00
44033C
440331230
ref: 44033C
COVER-FORK,LWR
€ 132.00
44033D
440331236
ref: 44033D
COVER-FORK
€ 62.50
44037
440371368
ref: 44037
HOLDER-FORK UNDER
€ 358.00
44039
440391279
ref: 44039
HOLDER-FORK UPPER
€ 276.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440651126
ref: 44065
BUSHING-FRONT FORK,IN
440651126
€ 14.00
44065A
440651127
ref: 44065A
BUSHING-FRONT FORK
€ 16.00
44075
440751073
ref: 44075
DAMPER-SET-FORK
€ 1,693.00
92015
920151757A
ref: 92015
NUT,5MM
920151757A
€ 5.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
920261276
€ 6.50
92026A
920261515
ref: 92026A
SPACER
920261515
€ 13.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
920331223
€ 4.00
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92049
920491363
ref: 92049
SEAL-OIL,FORK
920491363
€ 17.50
92055
920551363
ref: 92055
RING-O,SPRING SEAT
920551363
€ 4.50
92093
920931268
ref: 92093
SEAL,FORK
920931268
€ 16.50
92150
921501029
ref: 92150
BOLT,SOCKET,10X40
921501029
€ 7.00
92150A
921501031
ref: 92150A
BOLT,SOCKET,8MM
921501031
€ 6.00
92150B
921501432
ref: 92150B
BOLT
921501432
€ 6.50
92151
921511083
ref: 92151
BOLT
921511083
€ 6.00
92151A
921511324
ref: 92151A
BOLT,SOCKET,6X20
€ 1.50
92151B
921511356
ref: 92151B
BOLT
921511356
€ 1.50
92160
921601892
ref: 92160
DAMPER
921601892
€ 2.50
92160A
921601927
ref: 92160A
DAMPER
921601927
€ 6.00
92170
921701900
ref: 92170
CLAMP
€ 4.00
92200
922001417
ref: 92200
WASHER
€ 4.50
130
130J0516
ref: 130
BOLT-FLANGED
€ 1.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
