FOOTRESTS
VN1500G1A 1999 USA CALIFORNIA CANADA

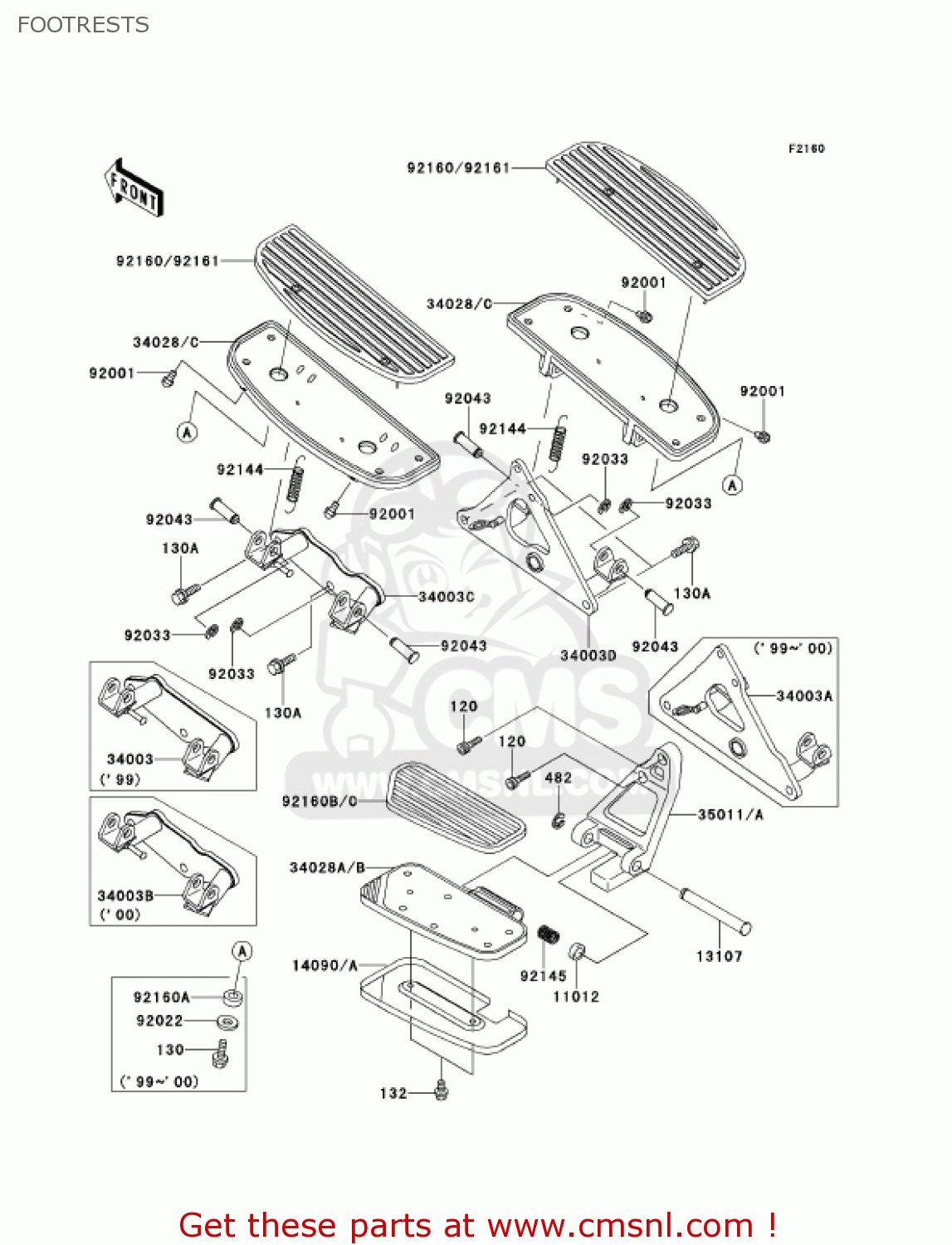

Footrests diagram VN1500G1A 1999 USA CALIFORNIA CANADA
FOOTRESTS VN1500G1A 1999 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120S0835
ref: 120
BOLT-SOCKET,8X35,BLAC
€ 3.00
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
130A
130J1030
ref: 130A
BOLT-FLANGED,10X30
€ 3.50
132
132E0608
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.50
482
482L0200
ref: 482
CIRCLIP-TYPE-E
€ 1.00
11012
110121498
ref: 11012
CAP
€ 4.00
13107
131071174
ref: 13107
SHAFT,REAR STEP
€ 10.50
14090
140901907
ref: 14090
COVER,REAR STEP,LH
€ 33.00
14090A
140901908
ref: 14090A
COVER,REAR STEP,RH
€ 28.00
34003
340031472
ref: 34003
HOLDER-STEP,FR,LH
€ 88.50
34003A
340031473
ref: 34003A
HOLDER-STEP,FR,RH
€ 91.00
34028
340281417
ref: 34028
STEP,FR
€ 106.50
34028A
340281459
ref: 34028A
STEP,RR,LH
€ 61.00
34028B
340281460
ref: 34028B
STEP,RR,RH
€ 66.50
35011
350111897
ref: 35011
STAY,REAR STEP,LH
€ 76.00
35011A
350111898
ref: 35011A
STAY,REAR STEP,RH
€ 67.00
92001
920011905
ref: 92001
BOLT,6X10
€ 3.50
92022
920221392
ref: 92022
WASHER,7X28X1.6,BLACK
€ 3.00
92033
920331166
ref: 92033
RING-SNAP,10MM
€ 2.50
92043
920431358
ref: 92043
PIN,12X37
€ 5.50
92144
921441266
ref: 92144
SPRING,BRAKE PEDAL RE
€ 5.50
92145
921451130
ref: 92145
SPRING,REAR STEP
€ 3.00
92160
921601727
ref: 92160
DAMPER,FRONT STEP
€ 47.00
92160A
921601728
ref: 92160A
DAMPER
€ 2.50
92160B
921601904
ref: 92160B
DAMPER,REAR STEP,LH
€ 27.50
92160C
921601905
ref: 92160C
DAMPER,REAR STEP,RH
€ 25.00
