CRANKCASE BOLT PATTERN

VN1500G1A 1999 USA CALIFORNIA CANADA

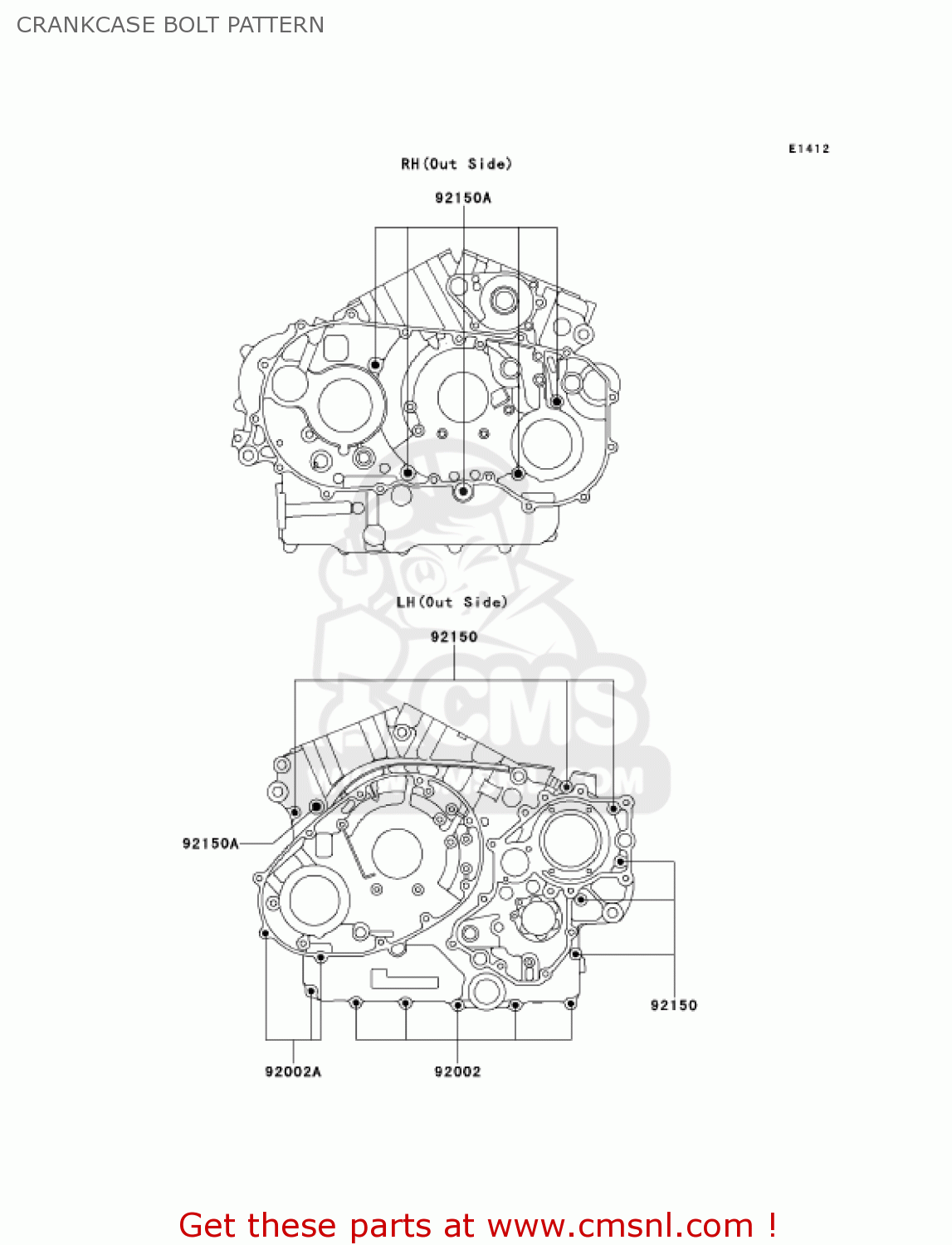

Crankcase bolt pattern diagram VN1500G1A 1999 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN VN1500G1A 1999 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN VN1500G1A 1999 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN VN1500G1A 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
92002
920021566
ref: 92002
BOLT,6X40
920021566
€ 3.00
92002A
920021568
ref: 92002A
BOLT,6X80
920021568
€ 4.00
92150
921501995
ref: 92150
BOLT,6X70
921501995
€ 2.00
92150A
921501996
ref: 92150A
BOLT,8X90
€ 3.00
