RADIATOR
VN1500C3 VULCAN 1500L 1996 USA CALIFORNIA

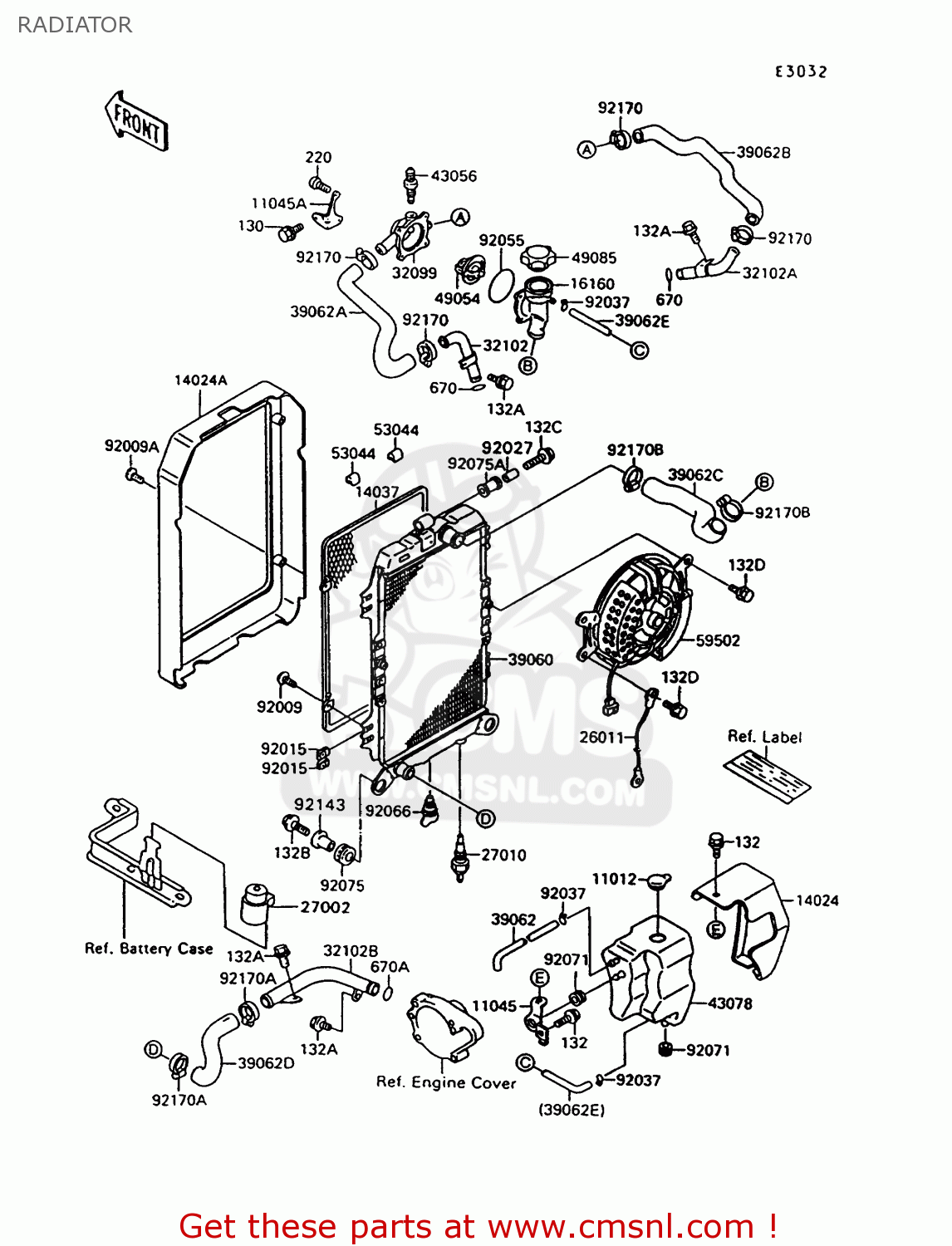

Radiator diagram VN1500C3 VULCAN 1500L 1996 USA CALIFORNIA
RADIATOR VN1500C3 VULCAN 1500L 1996 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11012
110121585
ref: 11012
CAP
€ 4.50
11045
110451436
ref: 11045
BRACKET,RESERVOIR
€ 5.50
11045A
110451437
ref: 11045A
BRACKET,THERMOSTAT
€ 5.50
14024
140241406
ref: 14024
COVER,RESERVOIR
€ 43.00
14024A
140241429H8
ref: 14024A
COVER,RADIATOR,EBONY
€ 150.50
14037
140371090
ref: 14037
SCREEN
€ 38.50
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
€ 134.00
26011
260111412
ref: 26011
WIRE-LEAD
€ 19.50
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27010
270101167
ref: 27010
SWITCH,FAN
€ 108.50
32099
320991093
ref: 32099
CASE,THERMOSTAT
€ 38.50
32102
321021413
ref: 32102
PIPE,HEAD,FR
€ 18.50
32102A
321021414
ref: 32102A
PIPE,HEAD,RR
€ 19.50
32102B
321021415
ref: 32102B
PIPE,PUMP COVER-HOSE
€ 37.50
39060
390601077
ref: 39060
RADIATOR
€ 653.50
39062
390621125
ref: 39062
HOSE-COOLING
€ 17.50
39062A
390621227
ref: 39062A
HOSE-COOLING,HEAD,FR
€ 16.50
39062B
390621228
ref: 39062B
HOSE-COOLING,HEAD,RR
€ 29.00
39062C
390621229
ref: 39062C
HOSE-COOLING,THERMO-R
€ 22.50
39062D
390621252
ref: 39062D
HOSE-COOLING,RADIATOR
€ 19.00
39062E
390621255
ref: 39062E
HOSE-COOLING
€ 16.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43078
430781085
ref: 43078
RESERVOIR
€ 50.50
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
53044
530441199
ref: 53044
TRIM
€ 3.00
59502
595021071
ref: 59502
FAN-ASSY
€ 446.00
92009
920091436
ref: 92009
SCREW
€ 2.00
92009A
920091481
ref: 92009A
SCREW,TAPPING,6X30
€ 3.00
92015
920151758
ref: 92015
NUT
€ 4.50
92027
92027209
ref: 92027
COLLAR
€ 1.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92066
920661293
ref: 92066
PLUG,DRAIN
€ 12.00
92071
920711115
ref: 92071
GROMMET,RESERVOIR TAN
€ 3.50
92075
920751665
ref: 92075
DAMPER
€ 5.00
92075A
920751920
ref: 92075A
DAMPER
€ 3.00
92143
921431063
ref: 92143
COLLAR
€ 6.00
92170
921701032
ref: 92170
CLAMP,COOLING HOSE
€ 16.50
92170A
921701034
ref: 92170A
CLAMP,COOLING HOSE
€ 14.00
130
130B0612
ref: 130
BOLT-FLANGED,6X12
€ 0.50
132
132E0610
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132E0612
ref: 132A
BOLT-FLANGED-SMALL
€ 3.50
132B
132E0625
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132E0640
ref: 132C
BOLT-FLANGED-SMALL
€ 3.50
132D
132J0610
ref: 132D
BOLT-FLANGED-SMALL,6X
€ 1.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
670
670B2014
ref: 670
O RING,14MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
92170B
921701284
ref: 92170B
CLAMP,CABLE
€ 7.50
