GENERATOR

VN1500C3 VULCAN 1500L 1996 USA CALIFORNIA

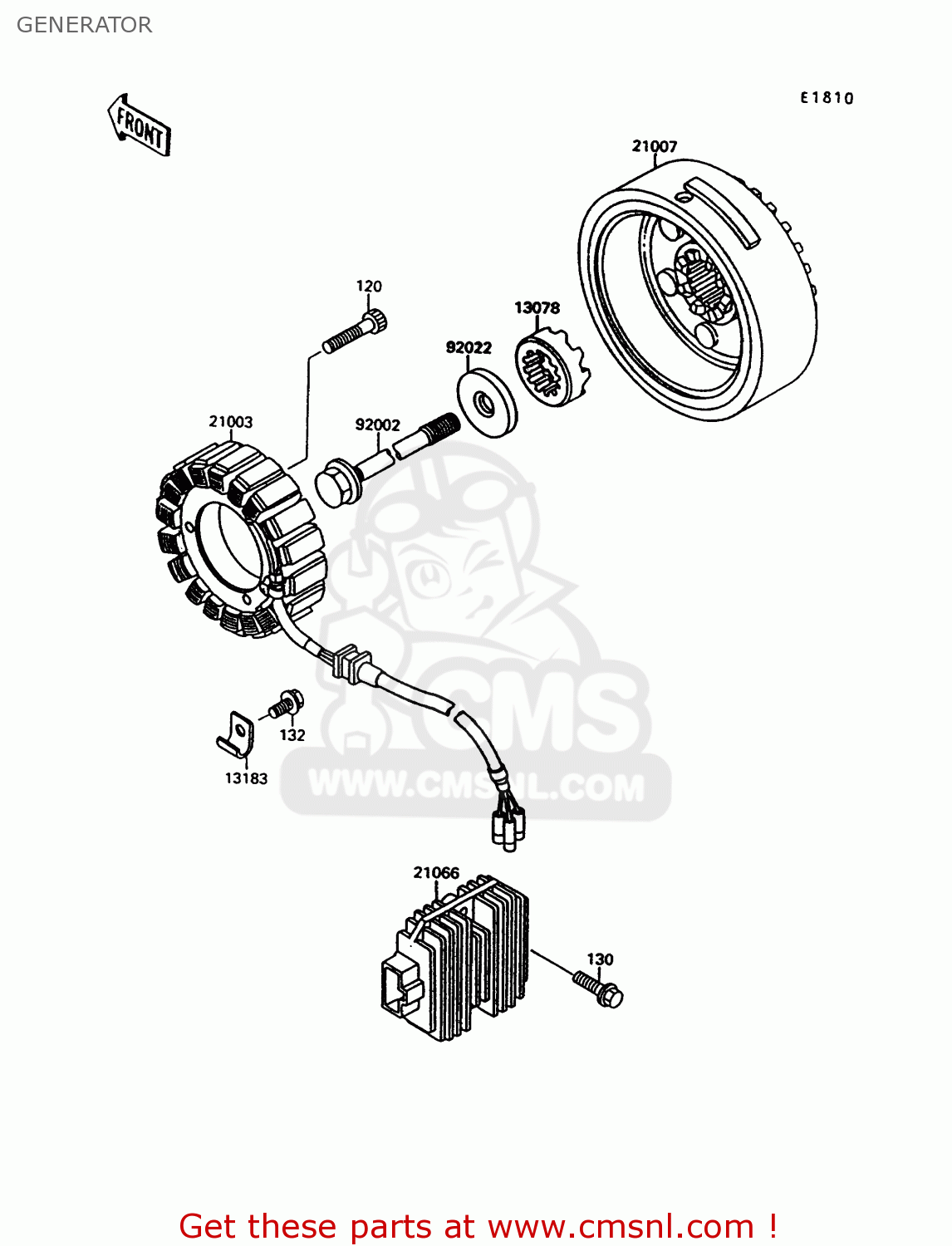

Generator diagram VN1500C3 VULCAN 1500L 1996 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

120

120P0635
ref: 120

BOLT,SOCKET,6X35

€ 1.50

130

130B0620
ref: 130

BOLT,HEX HEAD,6X20

€ 2.50

132

132E0610
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

13078

130781056
ref: 13078

RATCHET

€ 45.50

13183

131831072
ref: 13183

PLATE

€ 2.50

21003

210031164
ref: 21003

STATOR

€ 518.00

21007

210071154
ref: 21007

ROTOR

€ 410.50

21066

210661089
ref: 21066

REGULATOR-VOLTAGE

€ 173.50

92002

920021901
ref: 92002

BOLT,GENERATOR,12X112

€ 12.50

92022

920221904
ref: 92022

WASHER,GENERATOR

€ 9.50
