TURN SIGNAL

VN1500B6 VN15SE 1992 EUROPE UK FR AR FG IT NR SD ST

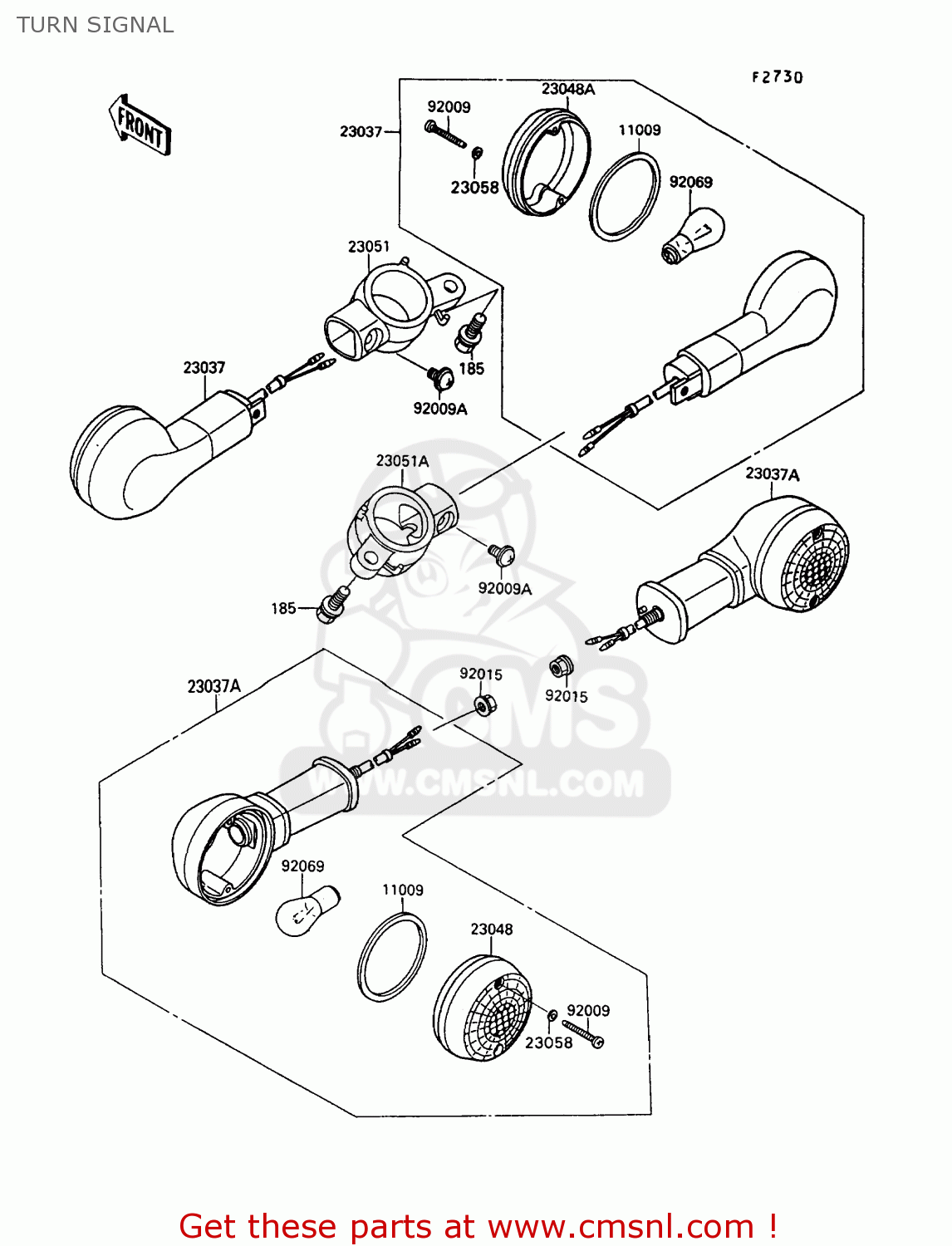

Turn signal diagram VN1500B6 VN15SE 1992 EUROPE UK FR AR FG IT NR SD ST

prices are in EUR

ref

part #

description

quantity

185

185N0822
ref: 185

BOLT-UPSET-WSP-SMALL,

€ 3.00

11009

110091413
ref: 11009

GASKET,SIGNAL LAMP (NAS)

€ 3.00

23037

230371251
ref: 23037

LAMP-ASSY-SIGNAL,FR

€ 60.00

23037A

230371252
ref: 23037A

LAMP-ASSY-SIGNAL,RR

€ 43.00

23048

230481065
ref: 23048

LENS-SIGNAL LAMP

€ 12.00

23048A

230481066
ref: 23048A

LENS-SIGNAL LAMP

€ 12.00

23051

230511194
ref: 23051

BRACKET-SIGNAL LAMP,F

€ 29.50

23051A

230511195
ref: 23051A

BRACKET-SIGNAL LAMP,F

€ 28.00

23058

23058002
ref: 23058

WASHER,PLAIN,4MM

€ 2.00

92009

920091069
ref: 92009

SCREW,TAPPING,4X25

€ 2.50

92009A

920091294
ref: 92009A

SCREW,6X8

€ 2.50

92015

920151366
ref: 92015

NUT,FLANGED,10MM

€ 3.00

92069

ref: 92069

TURN SIGNAL

all assemblies
