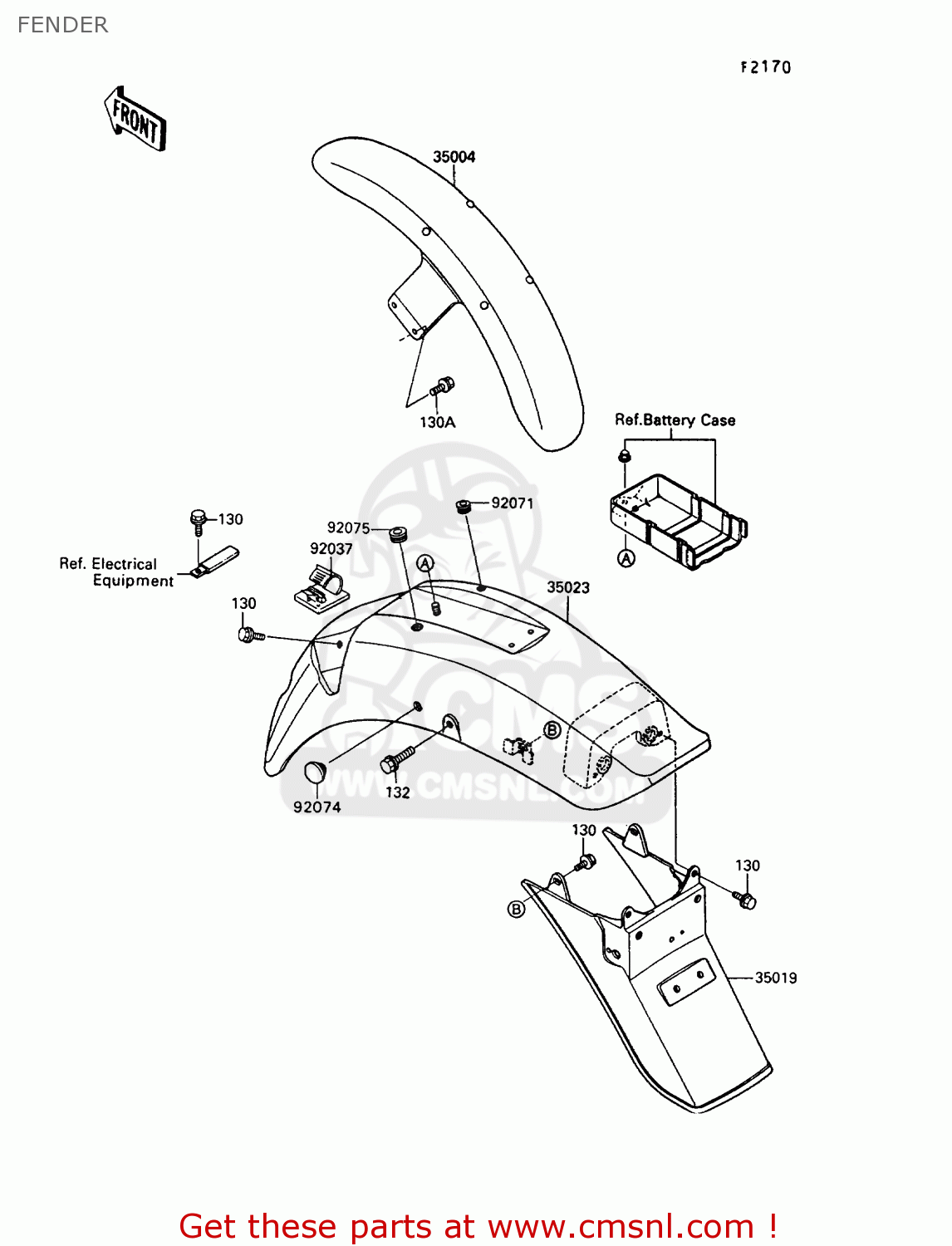

FENDER

VN1500B6 VN15SE 1992 EUROPE UK FR AR FG IT NR SD ST

Fender diagram VN1500B6 VN15SE 1992 EUROPE UK FR AR FG IT NR SD ST

prices are in EUR

ref

part #

description

quantity

130

130C0612
ref: 130

BOLT-FLANGED,6X12

€ 1.50

130A

130D0814
ref: 130A

BOLT-FLANGED

€ 0.50

132

132E0840
ref: 132

BOLT-FLANGED-SMALL

€ 4.00

35004

350041206L2
ref: 35004

FENDER-FRONT,L.C.RED

€ 258.50

35019

350191229
ref: 35019

FLAP,REAR FENDER

€ 114.00

35023

350231226L2
ref: 35023

FENDER-REAR,L.C.RED

€ 458.00

92037

920371816
ref: 92037

CLAMP,HARNESS

€ 5.00

92071

920711148
ref: 92071

GROMMET

€ 3.00

92074

92074006
ref: 92074

PLUG,FENDER,RR,12X1

€ 4.00

92075

92075294
ref: 92075

DAMPER RUBBER,HORN MT

€ 2.50

FENDER

all assemblies
