FRONT FORK
VN1500B4 VULCAN 88SE 1990 USA CALIFORNIA

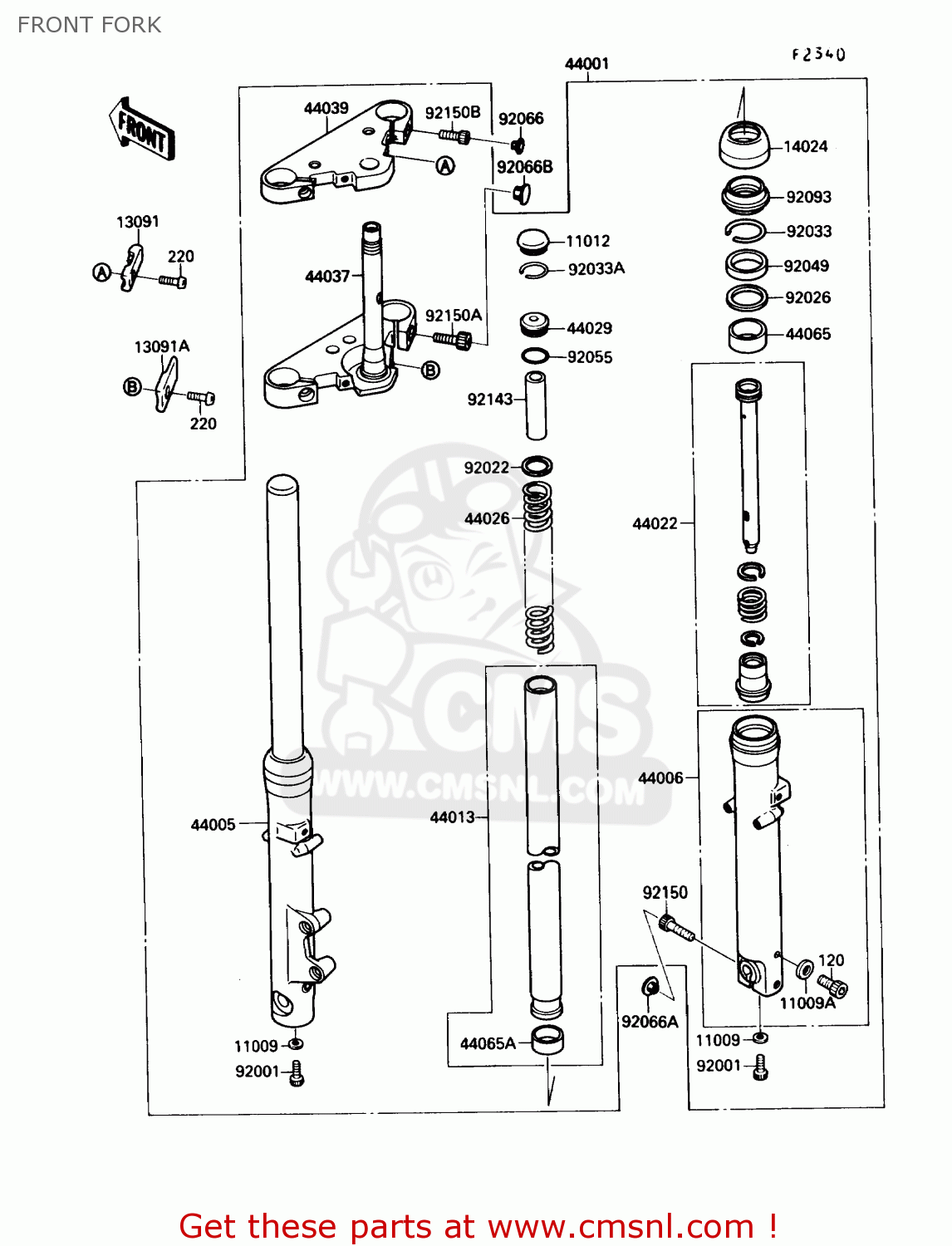

Front fork diagram VN1500B4 VULCAN 88SE 1990 USA CALIFORNIA
FRONT FORK VN1500B4 VULCAN 88SE 1990 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120P0608
ref: 120
BOLT-SOCKET
€ 1.50
220
220E0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.00
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11009A
44045052
ref: 11009A
GASKET,DRAIN PLUG (NAS)
€ 6.00
11012
110121618
ref: 11012
CAP,FORK TOP
€ 10.00
13091
130911482
ref: 13091
HOLDER,UPP
€ 16.50
13091A
130911483
ref: 13091A
HOLDER,LWR
€ 17.50
14024
140241600
ref: 14024
COVER,FORK OUTER TUBE
€ 29.50
44001
440011697
ref: 44001
FORK-FRONT
€ 1,778.50
44005
440051264
ref: 44005
PIPE-LEFT FORK OUTER
€ 490.50
44006
440061261
ref: 44006
PIPE-RIGHT FORK OUTER
€ 345.50
44013
440131269
ref: 44013
PIPE-FORK INNER
€ 196.00
44022
440221216
ref: 44022
CYLINDER-FORK
€ 73.50
44026
440261373
ref: 44026
SPRING-FRONT FORK
€ 57.50
44029
440291125
ref: 44029
SEAT-FORK SPRING
€ 29.50
44037
440371238
ref: 44037
HOLDER-FORK UNDER
€ 374.50
44039
440391156
ref: 44039
HOLDER-FORK UPPER
€ 265.00
44065
440651079
ref: 44065
BUSHING-FRONT FORK
€ 16.00
44065A
440651080
ref: 44065A
BUSHING-FRONT FORK,IN
€ 19.00
92001
920011464
ref: 92001
BOLT
€ 4.00
92022
920221909
ref: 92022
WASHER
€ 7.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
€ 6.50
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
€ 4.00
92049
920491272
ref: 92049
SEAL-OIL,FORK OUTER
€ 17.50
92055
920551363
ref: 92055
RING-O,SPRING SEAT
€ 4.50
92066
920661277
ref: 92066
PLUG
€ 4.00
92066A
920661285
ref: 92066A
PLUG
€ 5.00
92066B
920661302
ref: 92066B
PLUG
€ 4.00
92093
920931231
ref: 92093
SEAL,FORK OUTER TUBE
€ 16.50
92143
921431161
ref: 92143
COLLAR
€ 12.50
92150
921501029
ref: 92150
BOLT,SOCKET,10X40
€ 7.00
92150A
921501030
ref: 92150A
BOLT,SOCKET,12MM
€ 6.00
92150B
921501031
ref: 92150B
BOLT,SOCKET,8MM
€ 6.00
