FOOTRESTS
VN1500B4 VULCAN 88SE 1990 USA CALIFORNIA

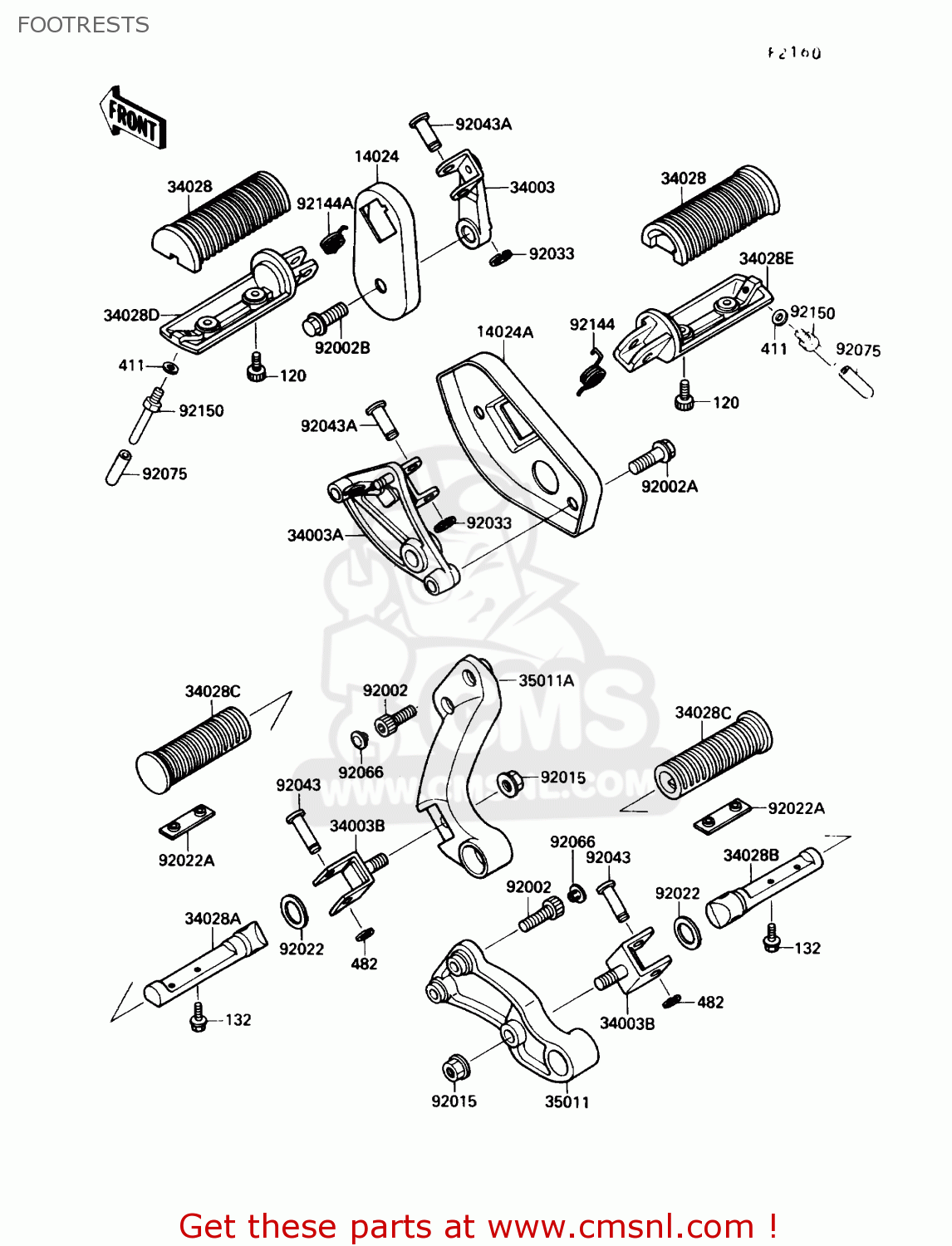

Footrests diagram VN1500B4 VULCAN 88SE 1990 USA CALIFORNIA
FOOTRESTS VN1500B4 VULCAN 88SE 1990 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
132
132J0510
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
482
482L7000
ref: 482
CIRCLIP-TYPE-E
€ 2.50
14024
140241435
ref: 14024
COVER,FRONT STEP,LH
€ 31.00
14024A
140241436
ref: 14024A
COVER,FRONT STEP,RH
€ 28.50
34003
340031290
ref: 34003
HOLDER-STEP,FR,LH
€ 33.00
34003A
340031291
ref: 34003A
HOLDER-STEP,FR,RH
€ 40.00
34003B
340031292
ref: 34003B
HOLDER-STEP,RR
€ 22.00
34028
340281217
ref: 34028
STEP,FR,RUBBER
€ 24.00
34028A
340281219
ref: 34028A
STEP,RR,LH
€ 78.00
34028B
340281220
ref: 34028B
STEP,RR,RH
€ 84.00
34028C
340281221
ref: 34028C
STEP,RR,RUBBER
€ 10.00
34028D
340281245
ref: 34028D
STEP,FR,LH
€ 46.50
34028E
340281246
ref: 34028E
STEP,FR,RH
€ 46.50
35011
350111347
ref: 35011
STAY,REAR STEP,RH
€ 50.00
35011A
350111389
ref: 35011A
STAY,REAR STEP,LH
€ 42.00
92002
920021442
ref: 92002
BOLT,SOCKET,8X25
€ 3.00
92002A
920021829
ref: 92002A
BOLT,FLANGED,10X35
€ 5.00
92002B
920021925
ref: 92002B
BOLT,FLANGED,12X30
€ 6.00
92015
920151428
ref: 92015
NUT,FLANGED,10MM
€ 3.00
92022
920221568
ref: 92022
WASHER,20X30X2.3
€ 2.50
92022A
920221874
ref: 92022A
WASHER,STEP
€ 4.00
92033
920331166
ref: 92033
RING-SNAP,10MM
€ 2.50
92043
920431339
ref: 92043
PIN
€ 5.00
92043A
920431358
ref: 92043A
PIN,12X37
€ 5.50
92066
920661277
ref: 92066
PLUG
€ 4.00
92075
920751980
ref: 92075
DAMPER
€ 3.50
92144
921441126
ref: 92144
SPRING,STEP RETURN
€ 4.00
92144A
921441210
ref: 92144A
SPRING,STEP RETURN
€ 3.50
92150
921501047
ref: 92150
BOLT,BANK SENSOR
€ 8.00
