Genuine VN Kawasaki Parts delivered quickly!


TAIL LAMP

VN1500B4 VN15SE 1990 EUROPE UK AR FG FR IT NR SD ST

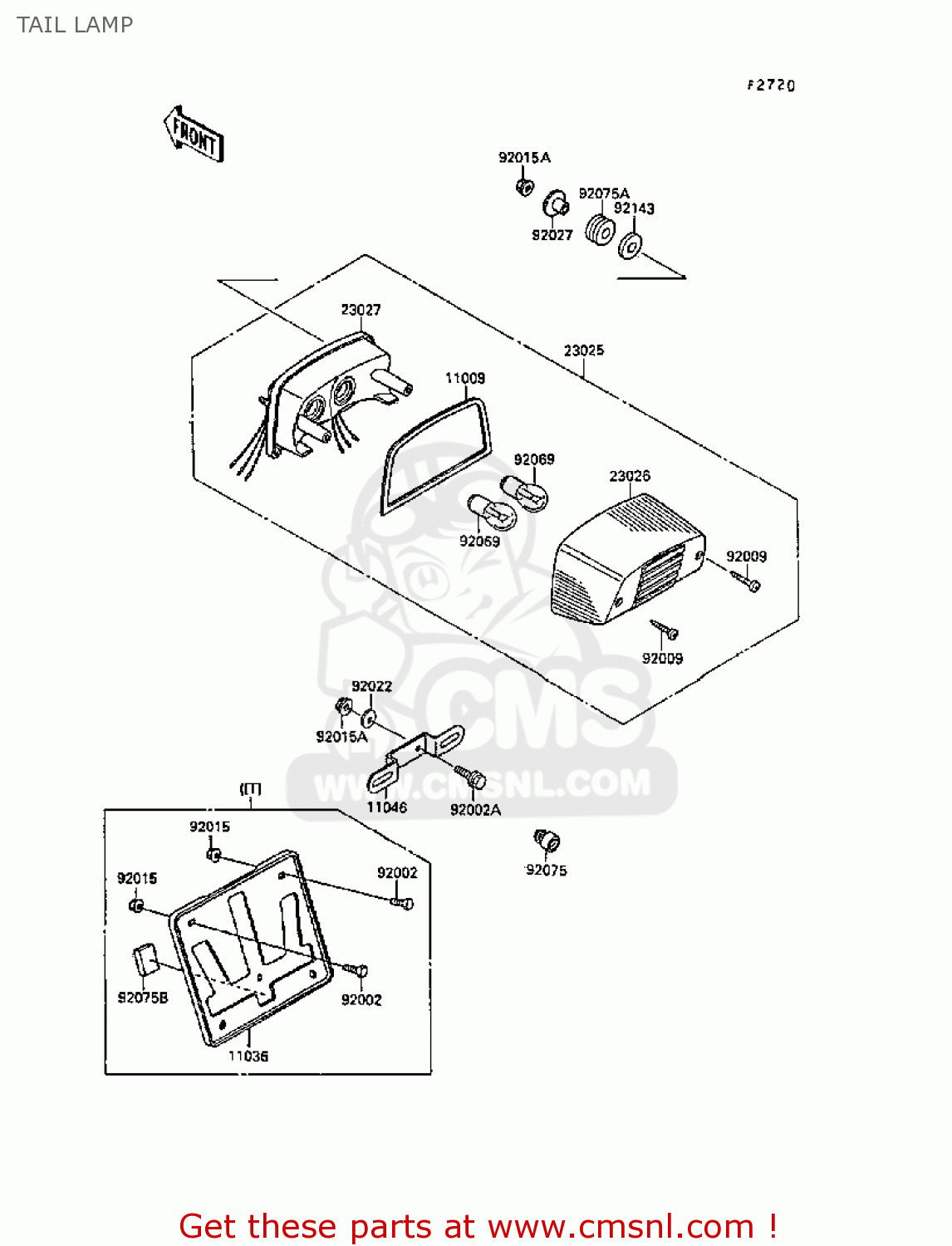

Tail lamp diagram VN1500B4 VN15SE 1990 EUROPE UK AR FG FR IT NR SD ST

TAIL LAMP VN1500B4 VN15SE 1990 EUROPE UK AR FG FR IT NR SD ST
TAIL LAMP VN1500B4 VN15SE 1990 EUROPE UK AR FG FR IT NR SD ST
TAIL LAMP VN1500B4 VN15SE 1990 EUROPE UK AR FG FR IT NR SD ST
prices are in EUR
ref
part #
description
quantity
11009
110091412
ref: 11009
GASKET,TAIL LAMP (NAS)
€ 9.00
11036
110361820
ref: 11036
IT
BRACKET-A,LICENSE PLA
110361820
€ 13.50
11046
110461109
ref: 11046
BRACKET,LICENSE PLATE
110461109
€ 13.00
23025
230251181
ref: 23025
LAMP-TAIL
230251181
€ 123.50
23026
230261057
ref: 23026
LENS,TAIL LAMP
230261057
€ 38.00
23027
230271091
ref: 23027
BODY-COMP-TAIL LAMP
€ 123.50
92002
920021132
ref: 92002
IT
BOLT,6X12
€ 2.50
92002A
920021260
ref: 92002A
BOLT,6X14
€ 0.50
92009
920091069
ref: 92009
SCREW,TAPPING,4X25
920091069
€ 2.50
92015
920151193
ref: 92015
IT
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
920221557
€ 1.00
92027
92027251
ref: 92027
COLLAR,L=13.1
92027251
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92075
92075035
ref: 92075
DAMPER
92075035
€ 3.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
920751690
€ 3.00
92075B
920751867
ref: 92075B
IT
DAMPER
920751867
€ 2.50
92143
921431238
ref: 92143
COLLAR,6.5X24X8
921431238
€ 4.50
