ELECTRICAL EQUIPMENT

VN1500B4 VN15SE 1990 EUROPE UK AR FG FR IT NR SD ST

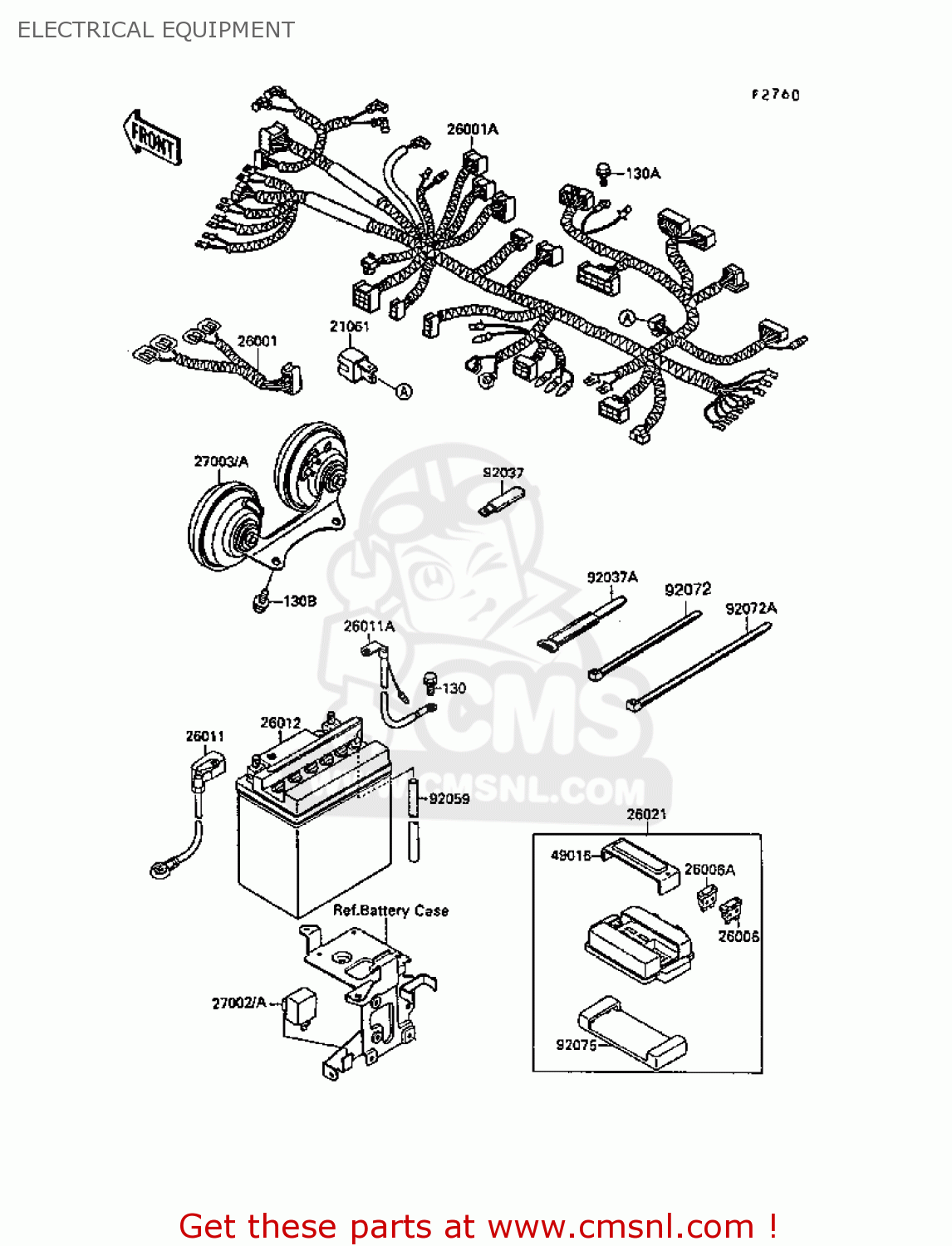

Electrical equipment diagram VN1500B4 VN15SE 1990 EUROPE UK AR FG FR IT NR SD ST

ELECTRICAL EQUIPMENT VN1500B4 VN15SE 1990 EUROPE UK AR FG FR IT NR SD ST
ELECTRICAL EQUIPMENT VN1500B4 VN15SE 1990 EUROPE UK AR FG FR IT NR SD ST
ELECTRICAL EQUIPMENT VN1500B4 VN15SE 1990 EUROPE UK AR FG FR IT NR SD ST
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130C0610
ref: 130A
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130B
130C0612
ref: 130B
BOLT-FLANGED,6X12
130C0612
€ 1.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26001
260011862
ref: 26001
HARNESS,IGNITION
€ 13.50
26001A
260011911
ref: 26001A
HARNESS,MAIN
€ 238.00
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26006A
260061007
ref: 26006A
FUSE, 10A-R
260061007
€ 3.00
26011
260111391
ref: 26011
WIRE-LEAD,BATTERY(+)
260111391
€ 21.00
26011A
260111392
ref: 26011A
WIRE-LEAD,BATTERY(-)
260111392
€ 21.00
26012
260121187
ref: 26012
BATTERY,12V 20AH,Y50-
€ 79.50
26021
260211069
ref: 26021
JUNCTION BOX
€ 127.00
27002
270021053
ref: 27002
AREUFRITNRSDSTUK
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27002A
270021060
ref: 27002A
WG
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27003
270031297
ref: 27003
EUNRSDSTUKWG
HORN,DOUBLE
270031297
€ 138.00
27003A
270031298
ref: 27003A
ARFRIT
HORN,DOUBLE
€ 129.00
49016
490161125
ref: 49016
COVER-SEAL,FUSE
€ 6.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371817
ref: 92037A
CLAMP,BAND,L=137
920371817
€ 8.50
92059
920591840
ref: 92059
TUBE,5X8X570
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
