FRAME
VN1500B3 VN15SE 1989 FG NR

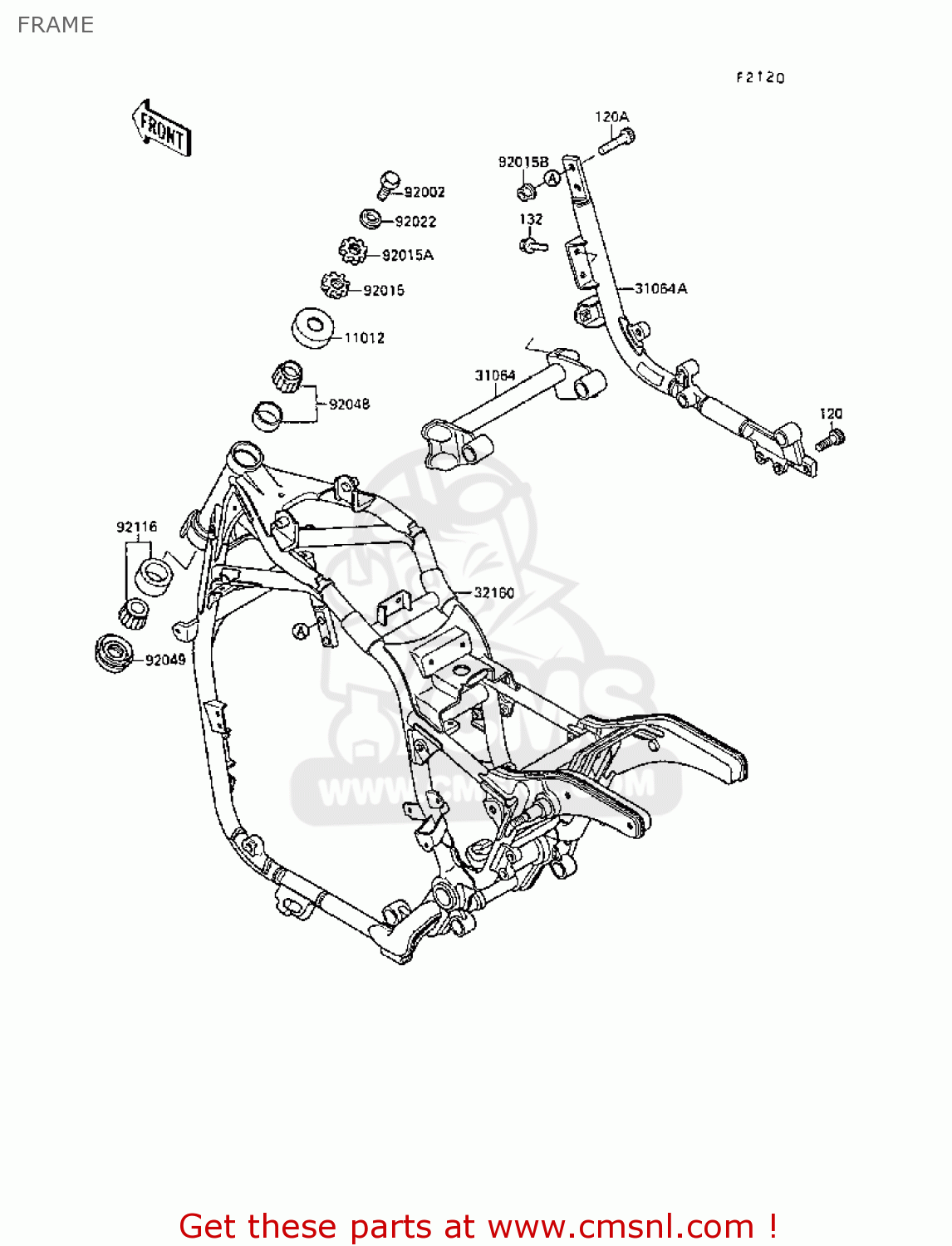

Frame diagram VN1500B3 VN15SE 1989 FG NR
FRAME VN1500B3 VN15SE 1989 FG NR
×
prices are in EUR
ref
part #
description
quantity
120
120S1020
ref: 120
BOLT-SOCKET
€ 3.00
120A
120S1030
ref: 120A
BOLT-SOCKET,10X30
€ 3.50
132
132J0816
ref: 132
BOLT-FLANGED-SMALL,8X
€ 2.00
11012
46098017
ref: 11012
CAP,STEERING STEM
€ 4.00
31064
310641083
ref: 31064
PIPE-COMP,FRAME,CROSS
€ 99.00
31064A
310641084
ref: 31064A
PIPE-COMP,FRAME,RH
€ 336.00
32160
320021998
ref: 32160
FRAME-COMP
€ 1,550.50
92002
920021611
ref: 92002
BOLT
€ 9.50
92015
920151377
ref: 92015
NUT,25MM,T=10
€ 18.50
92015A
920151378
ref: 92015A
NUT,25MM,T=6
€ 14.50
92015B
920151669
ref: 92015B
NUT,FLANGED,10MM
€ 2.00
92022
920221733
ref: 92022
WASHER,14.5X36X4.5
€ 8.00
92048
92047017
ref: 92048
CONE,STRNG,STEM
€ 49.50
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
