ELECTRICAL EQUIPMENT
VN1500B3 VN15SE 1989 FG NR

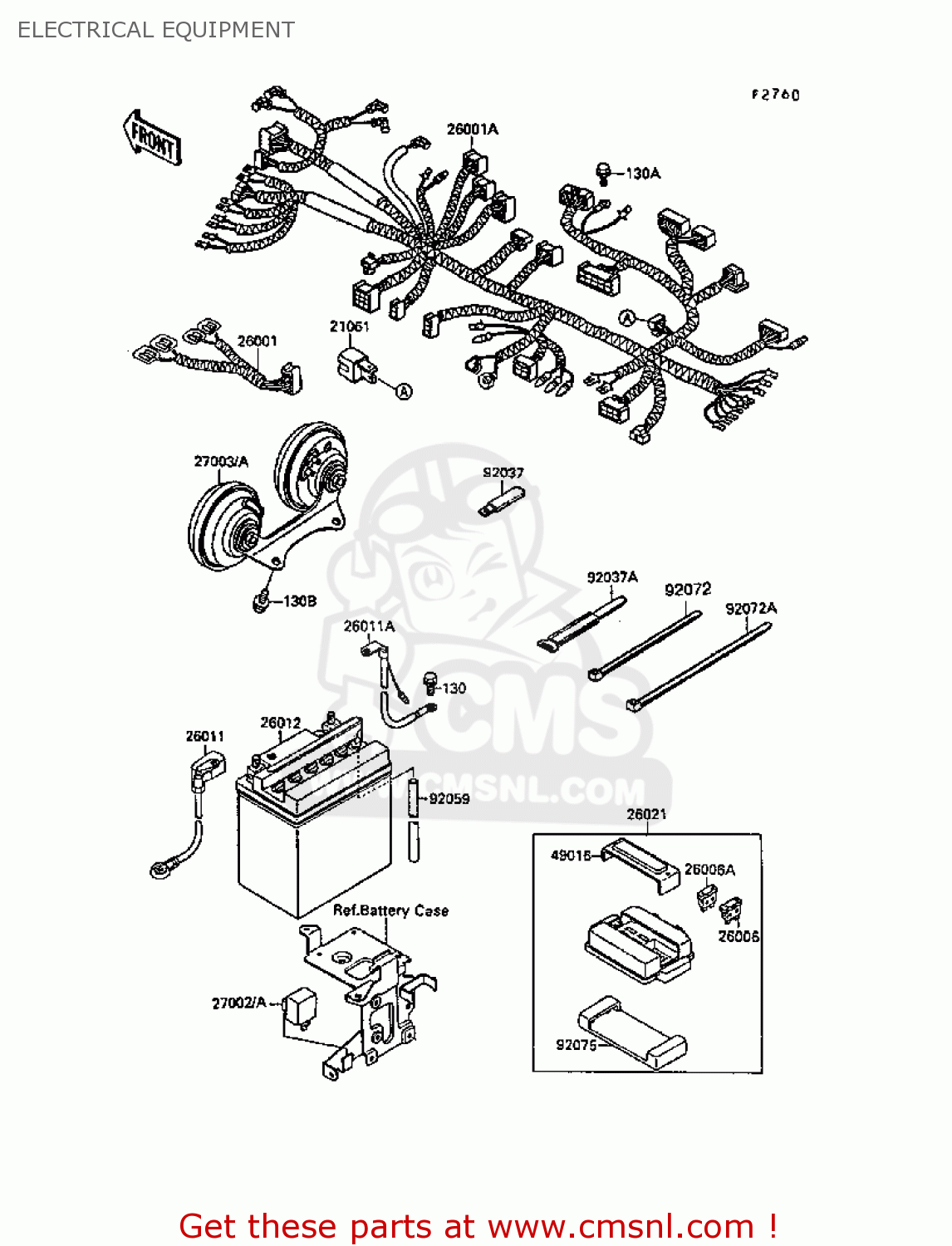

Electrical equipment diagram VN1500B3 VN15SE 1989 FG NR
ELECTRICAL EQUIPMENT VN1500B3 VN15SE 1989 FG NR
×
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130C0610
ref: 130A
BOLT-FLANGED,6X10,BLA
€ 1.50
130B
130C0612
ref: 130B
BOLT-FLANGED,6X12
€ 1.50
21061
210611003
ref: 21061
RECTIFIER
€ 25.00
26001
260011862
ref: 26001
HARNESS,IGNITION
€ 13.50
26001A
260011911
ref: 26001A
HARNESS,MAIN
€ 238.00
26006
260061006
ref: 26006
FUSE,30A-G
€ 3.00
26006A
260061007
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111391
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 21.00
26011A
260111392
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 21.00
26012
260121187
ref: 26012
BATTERY,12V 20AH,Y50-
€ 79.50
26021
260211069
ref: 26021
JUNCTION BOX
€ 127.00
27002
270021053
ref: 27002
NR
RELAY-ASSY,TURN SIGNA
€ 33.50
27002A
270021060
ref: 27002A
WG
RELAY-ASSY,TURN SIGNA
€ 65.50
27003
270031297
ref: 27003
HORN,DOUBLE
€ 138.00
49016
490161125
ref: 49016
COVER-SEAL,FUSE
€ 6.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371817
ref: 92037A
CLAMP,BAND,L=137
€ 8.50
92059
920591840
ref: 92059
TUBE,5X8X570
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92072A
920721197
ref: 92072A
BAND
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
€ 9.50
