CARBURETOR PARTS

VN1500B2 VN15SE 1988 USA CALIFORNIA CANADA

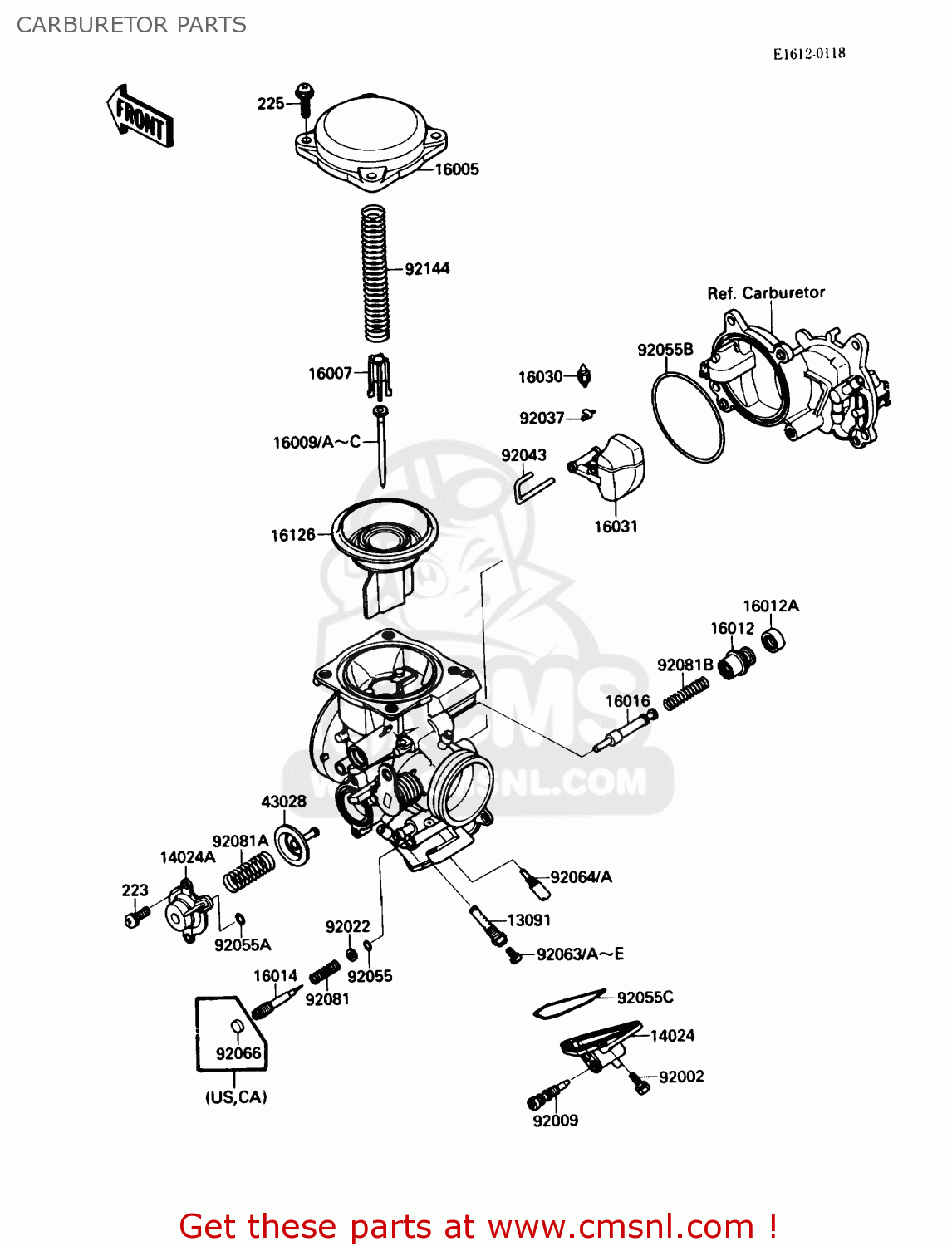

Carburetor parts diagram VN1500B2 VN15SE 1988 USA CALIFORNIA CANADA

CARBURETOR PARTS VN1500B2 VN15SE 1988 USA CALIFORNIA CANADA
CARBURETOR PARTS VN1500B2 VN15SE 1988 USA CALIFORNIA CANADA
CARBURETOR PARTS VN1500B2 VN15SE 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911513
ref: 13091
HOLDER,NEEDLE JET
€ 16.50
14024
140241608
ref: 14024
COVER,DRAIN
€ 78.50
14024A
140251903
ref: 14024A
COVER,AIR CUT VALVE
140251903
€ 43.00
16005
160051054
ref: 16005
TOP-CHAMBER,MIXING
160051054
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091369
ref: 16009
CNUS
NEEDLE-JET,RR,N36Q
€ 19.00
16009A
160091370
ref: 16009A
CNUS
NEEDLE-JET,FR,N36P
€ 19.00
16009B
160091371
ref: 16009B
CA
JET,NEEDLE,#N36S,REAR
€ 19.00
16009C
160091372
ref: 16009C
CA
JET,NEEDLE,#N36R,FRONT
€ 19.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161071
ref: 16016
PLUNGER
160161071
€ 35.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311066
ref: 16031
FLOAT
160311066
€ 37.50
16126
161261203
ref: 16126
VALVE,VACUUM
161261203
€ 219.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
430281053
€ 62.50
92002
920021761
ref: 92002
BOLT
€ 3.50
92009
920091434
ref: 92009
SCREW
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
16044007
€ 4.00
92043
920431285
ref: 92043
PIN,FLOAT
920431285
€ 12.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551245
ref: 92055A
RING-O
920551245
€ 3.50
92055B
920551291
ref: 92055B
RING-O
920551291
€ 14.50
92055C
920551400
ref: 92055C
RING-O,DRAIN COVER
920551400
€ 16.00
92063
920631014
ref: 92063
MAIN JET,#135
920631014
€ 9.50
92063A
920631015
ref: 92063A
MAIN JET,#138
920631015
€ 9.50
92063B
920631069
ref: 92063B
MAIN JET,2ND #125
920631069
€ 9.50
92063C
920631074
ref: 92063C
MAIN JET,2ND #128
920631074
€ 9.50
92063D
920631075
ref: 92063D
MAIN JET,2ND #130
920631075
€ 9.50
223
223D0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92063E
920631076
ref: 92063E
JET-MAIN,#132
920631076
€ 9.50
92064
920641135
ref: 92064
JET-PILOT,#42
920641135
€ 14.00
92064A
920641136
ref: 92064A
JET-PILOT,#40
920641136
€ 13.00
92066
920661051
ref: 92066
CAUS
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811719
ref: 92081A
SPRING,AIR CUT VALVE
920811719
€ 8.50
92081B
920811761
ref: 92081B
SPRING,STARTER PLUNGE
920811761
€ 6.00
92144
921441219
ref: 92144
SPRING,VACUUM VALVE
921441219
€ 12.50
