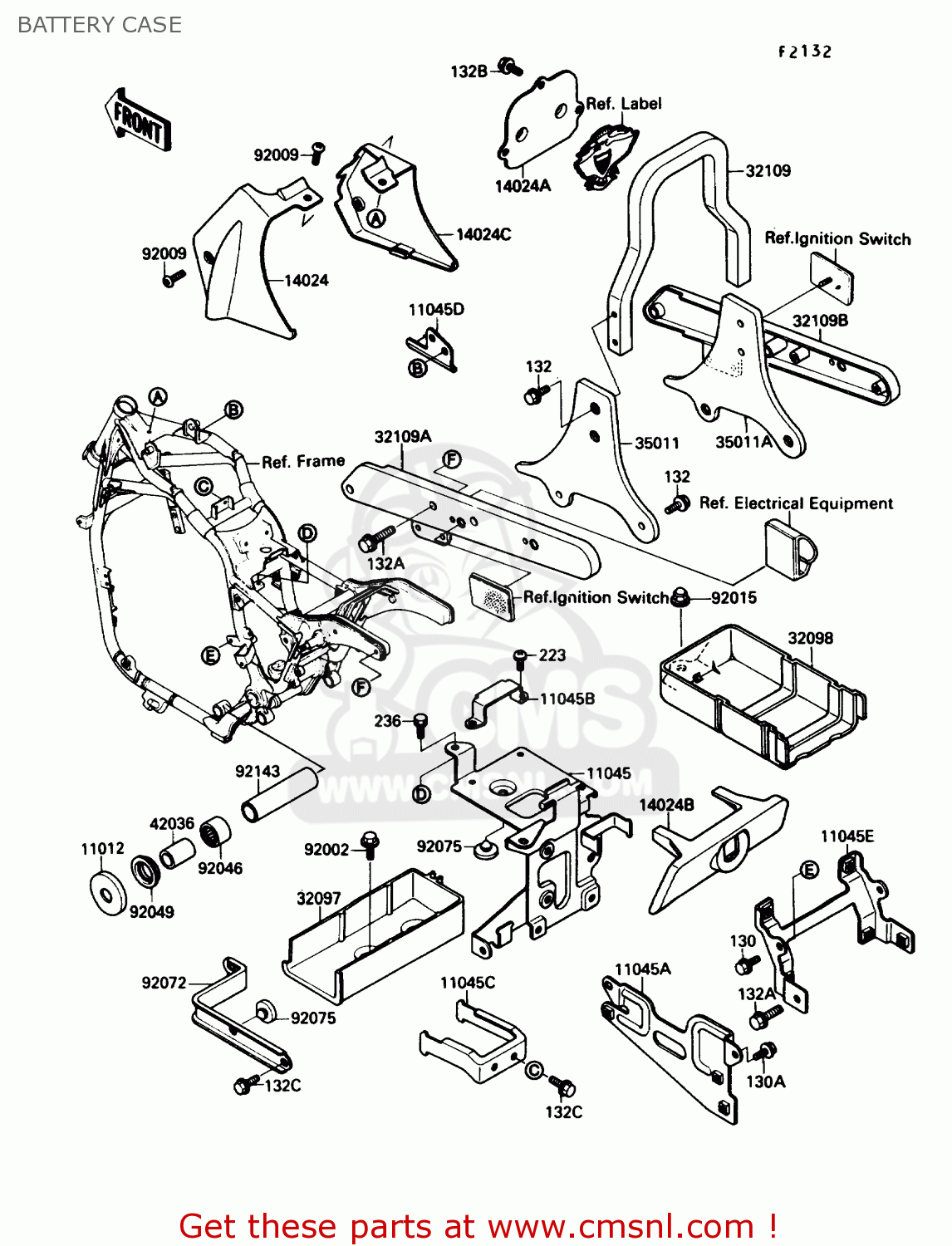

BATTERY CASE

ref

part #

description

quantity

130

130C0614
ref: 130

BOLT-FLANGED,6X14

€ 1.50

130A

130D0610
ref: 130A

BOLT-FLANGED

€ 0.50

132

132E0614
ref: 132

BOLT-FLANGED-SMALL,6X

€ 2.50

132A

132E0820
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132G0612
ref: 132B

BOLT-FLANGED-SMALL

€ 1.50

132C

132H0610
ref: 132C

BOLT-FLANGED-SMALL,6X

€ 1.00

223

223B0510
ref: 223

SCREW-PAN-WS-CROS

€ 0.50

236

236D0612
ref: 236

SCREW-PAN-WSP-CROS

€ 2.50

11012

110121575
ref: 11012

CAP,SWING ARM

€ 5.00

11045

110451451
ref: 11045

BRACKET,ELECTRIC BASE

€ 30.50

11045A

110451452
ref: 11045A

BRACKET,IGNITER

€ 15.50

11045B

110451453
ref: 11045B

BRACKET,JUNCTION BOX

€ 4.00

11045C

110451454
ref: 11045C

BRACKET,FUEL PUMP

€ 11.50

11045D

110451455
ref: 11045D

BRACKET,FUEL FILTER

€ 4.50

11045E

110451622
ref: 11045E

BRACKET,IGNITION COIL

€ 16.50

14024

140241457
ref: 14024

COVER,HEAD GUSSET,LH

€ 58.00

14024A

140241459
ref: 14024A

COVER,SEAT

€ 10.00

14024B

140241510
ref: 14024B

COVER,TOOL CASE

€ 8.00

14024C

140241682
ref: 14024C

COVER,HEAD GUSSET,RH

€ 77.50

32097

320971130
ref: 32097

CASE-BATTERY

€ 13.00

32098

320981077
ref: 32098

CASE-TOOL

€ 8.50

32109

321091159
ref: 32109

GRIP-FRAME,UPP

€ 227.00

32109A

321091164
ref: 32109A

FRAME GRIP,LOWER,LH

€ 94.00

32109B

321091165
ref: 32109B

FRAME GRIP,LOWER,RH

€ 85.50

35011

350111336
ref: 35011

STAY,FRAME GRIP,LH

€ 151.50

35011A

350111337
ref: 35011A

STAY,FRAME GRIP,RH

€ 151.50

42036

420361213
ref: 42036

SLEEVE,17.1X25X40

€ 13.50

92002

920021721
ref: 92002

BOLT,6X12

€ 2.00

92009

920091335
ref: 92009

SCREW,5X10

€ 2.50

92015

920151170
ref: 92015

NUT,CAP 6MM,BLACK

€ 0.50

92046

920461035
ref: 92046

920461035

92049

920491166
ref: 92049

SEAL-OIL

€ 7.50

92072

920721218
ref: 92072

BAND,BATTERY

€ 8.00

92075

92075078
ref: 92075

DAMPER,RUBBER

€ 2.50

92143

921431083
ref: 92143

COLLAR,17.6X22.2X96.5

€ 6.50
