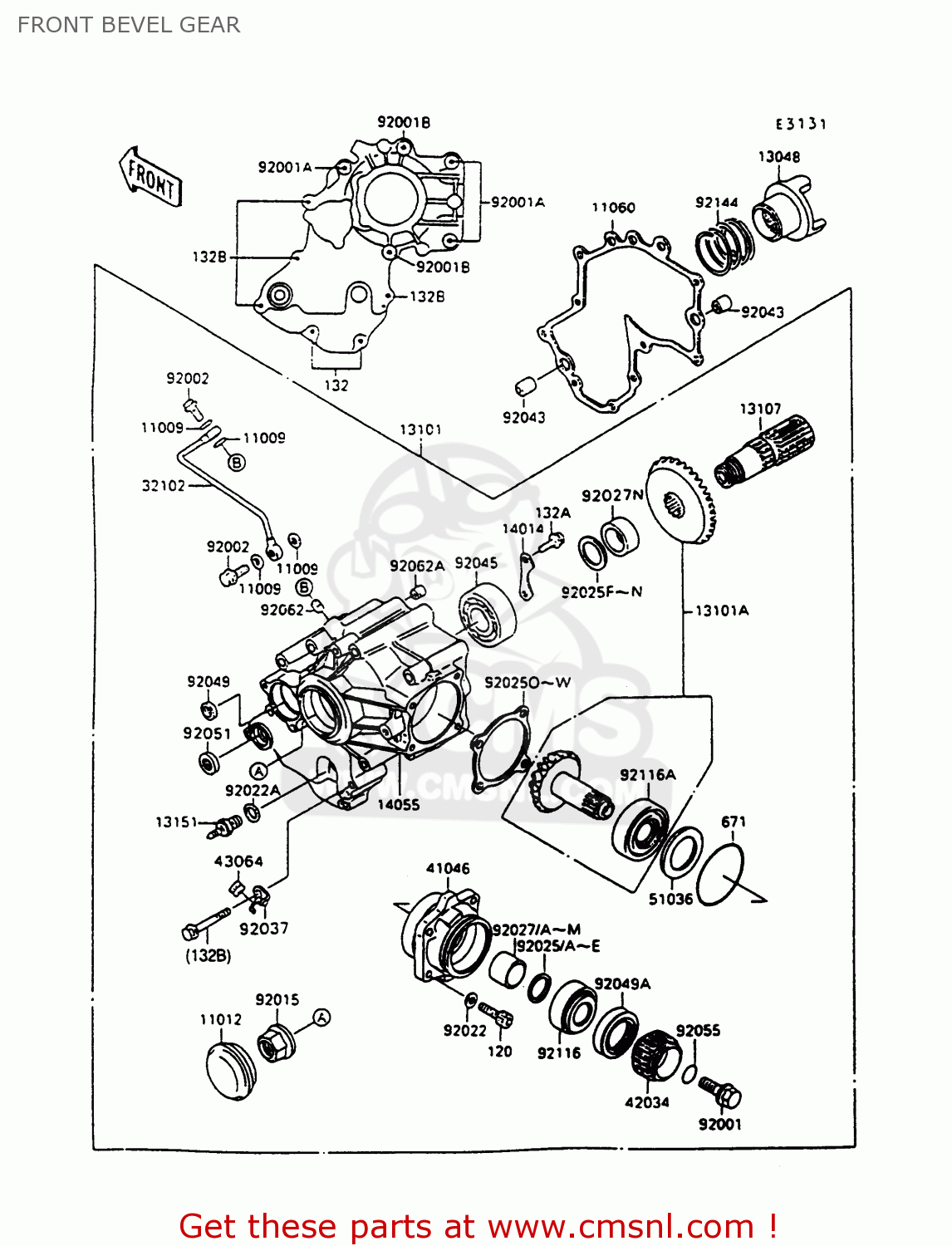

FRONT BEVEL GEAR

ref

part #

description

quantity

11009

110091344
ref: 11009

GASKET,OIL PIPE,8.2X1 (NAS)

€ 1.50

11012

110121071
ref: 11012

CAP

€ 21.50

11060

110601120
ref: 11060

GASKET,GEAR CASE (NAS)

€ 19.50

13048

130481074
ref: 13048

CAM-DAMPER

€ 75.50

13101

131011118
ref: 13101

GEAR-ASSY,BEVEL,FR

€ 1,659.00

13101A

131015065
ref: 13101A

GEAR-ASSY,BEVEL,FR

€ 753.50

13107

131071263
ref: 13107

SHAFT,BEVEL,FR

€ 132.50

13151

131511010
ref: 13151

SWITCH-COMP,NEUTRAL

€ 17.50

14014

140141084
ref: 14014

PLATE-POSITION

€ 4.00

14055

140551074
ref: 14055

CASE-GEAR

€ 549.50

32102

321021411
ref: 32102

PIPE

€ 32.50

41046

410461085
ref: 41046

HOUSING-BEARING

€ 96.00

42034

420341091
ref: 42034

COUPLING,FR DRIVEN

€ 96.00

43064

43064006
ref: 43064

GROMMET,BRAKE HOSE

€ 2.50

51036

510361002
ref: 51036

CAP

€ 3.50

92001

920011169
ref: 92001

BOLT,12X42

€ 15.50

92001A

920011480
ref: 92001A

BOLT,8X90

€ 5.50

92001B

920011597
ref: 92001B

BOLT,FLANGED,8X110

€ 3.50

92002

920021429
ref: 92002

BOLT,8X20

€ 7.00

92015

920151554
ref: 92015

NUT,24MM

€ 16.50

92022

920221028
ref: 92022

WASHER,8.5X13X1

€ 2.50

92022A

920221211
ref: 92022A

WASHER,12X18X1.0

€ 2.50

92025

920251072
ref: 92025

SHIM,1.70T

€ 6.50

92025A

920251073
ref: 92025A

SHIM,1.72T

€ 6.50

92025B

920251074
ref: 92025B

SHIM,1.74T

€ 6.50

92025C

920251075
ref: 92025C

SHIM,1.76T

€ 6.50

92025D

920251076
ref: 92025D

SHIM,1.78T

€ 6.50

92025E

920251077
ref: 92025E

SHIM,1.80T

€ 6.50

92025F

920251688
ref: 92025F

SHIM,25.3X36X0.15

€ 5.50

92025G

920251689
ref: 92025G

SHIM,25.3X36X0.50

€ 5.50

92025H

920251690
ref: 92025H

SHIM,25.3X36X0.60

€ 5.50

92025I

920251691
ref: 92025I

SHIM,25.3X36X0.70

€ 5.50

92025J

920251692
ref: 92025J

SHIM,25.3X36X0.80

€ 5.50

92025K

920251693
ref: 92025K

SHIM,25.3X36X0.90

€ 5.50

92025L

920251694
ref: 92025L

SHIM,25.3X36X1.0

€ 5.50

92025M

920251695
ref: 92025M

SHIM,25.3X36X1.1

€ 5.50

92025N

920251696
ref: 92025N

SHIM,25.3X36X1.2

€ 5.50

92025O

920251818
ref: 92025O

SHIM,T=0.15

€ 8.00

92025P

920251819
ref: 92025P

SHIM,T=0.50

€ 8.00

92025Q

920251820
ref: 92025Q

SHIM,T=0.60

€ 7.50

120

120P0830
ref: 120

BOLT,SOCKET,8X30

€ 2.00

132

132E0630
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132G0616
ref: 132A

BOLT-FLANGED-SMALL

€ 1.00

132B

132G0655
ref: 132B

BOLT-FLANGED-SMALL

€ 2.00

671

671B2565
ref: 671

O RING,65MM

€ 6.00

92025R

920251821
ref: 92025R

SHIM,T=0.70

€ 7.50

92025S

920251822
ref: 92025S

SHIM,T=0.80

€ 7.50

92025T

920251823
ref: 92025T

SHIM,T=0.90

€ 8.00

92025U

920251824
ref: 92025U

SHIM,T=1.00

€ 7.00

92025V

920251825
ref: 92025V

SHIM,T=1.20

€ 8.00

92025W

920251826
ref: 92025W

SHIM,T=0.10

€ 7.00

92027

920271152
ref: 92027

COLLAR,25.2X29.8X22.8

€ 12.00

92027A

920271153
ref: 92027A

COLLAR,25.2X29.8X22.9

€ 12.00

92027B

920271154
ref: 92027B

COLLAR,25.2X29.8X23

€ 12.00

92027C

920271155
ref: 92027C

COLLAR,25.2X29.8X23.1

€ 12.50

92027D

920271156
ref: 92027D

COLLAR,25.2X29.8X23.2

€ 13.00

92027E

920271157
ref: 92027E

COLLAR,25.2X29.8X23.3

€ 12.00

92027F

920271158
ref: 92027F

COLLAR,25.2X29.8X23.4

€ 12.00

92027G

920271159
ref: 92027G

COLLAR,25.2X29.8X23.5

€ 12.00

92027H

920271160
ref: 92027H

COLLAR,25.2X29.8X23.6

€ 12.00

92027I

920271161
ref: 92027I

COLLAR,25.2X29.8X23.7

€ 12.00

92027J

920271162
ref: 92027J

COLLAR,25.2X29.8X23.8

€ 12.00

92027K

920271163
ref: 92027K

COLLAR,25.2X29.8X23.9

€ 12.00

92027L

920271164
ref: 92027L

COLLAR,25.2X29.8X24

€ 12.00

92027M

920271165
ref: 92027M

COLLAR,25.2X29.8X24.1

€ 12.00

92027N

920271968
ref: 92027N

COLLAR,25.3X36X10

€ 15.50

92037

920371873
ref: 92037

CLAMP

€ 6.00

92043

920431279
ref: 92043

PIN,11.5X14X14

€ 3.00

92045

920451165
ref: 92045

BEARING-BALL,6305C2

€ 44.00

92049

920491017
ref: 92049

SEAL-OIL,SD-8187

€ 6.50

92049A

920491038
ref: 92049A

OIL SEAL,TC35527

€ 12.50

92051

92051005A
ref: 92051

OIL SEAL,TB13225.5

€ 5.50

92055

920551044
ref: 92055

RING-O,ID=18.64

€ 3.00

92062

920621066
ref: 92062

NOZZLE,6X8

€ 2.50

92062A

920621067
ref: 92062A

NOZZLE,10X10

€ 4.00

92116

921161062
ref: 92116

BEARING-ROLLER,HI-CAP

€ 41.00

92116A

921161063
ref: 92116A

BEARING-ROLLER,HI-CAP

€ 49.50

92144

921441193
ref: 92144

SPRING,CAM DAMPER

€ 52.00
