BRAKE PEDAL/TORQUE LINK

VN1500A6 VULCAN 88 1992 USA CALIFORNIA CANADA

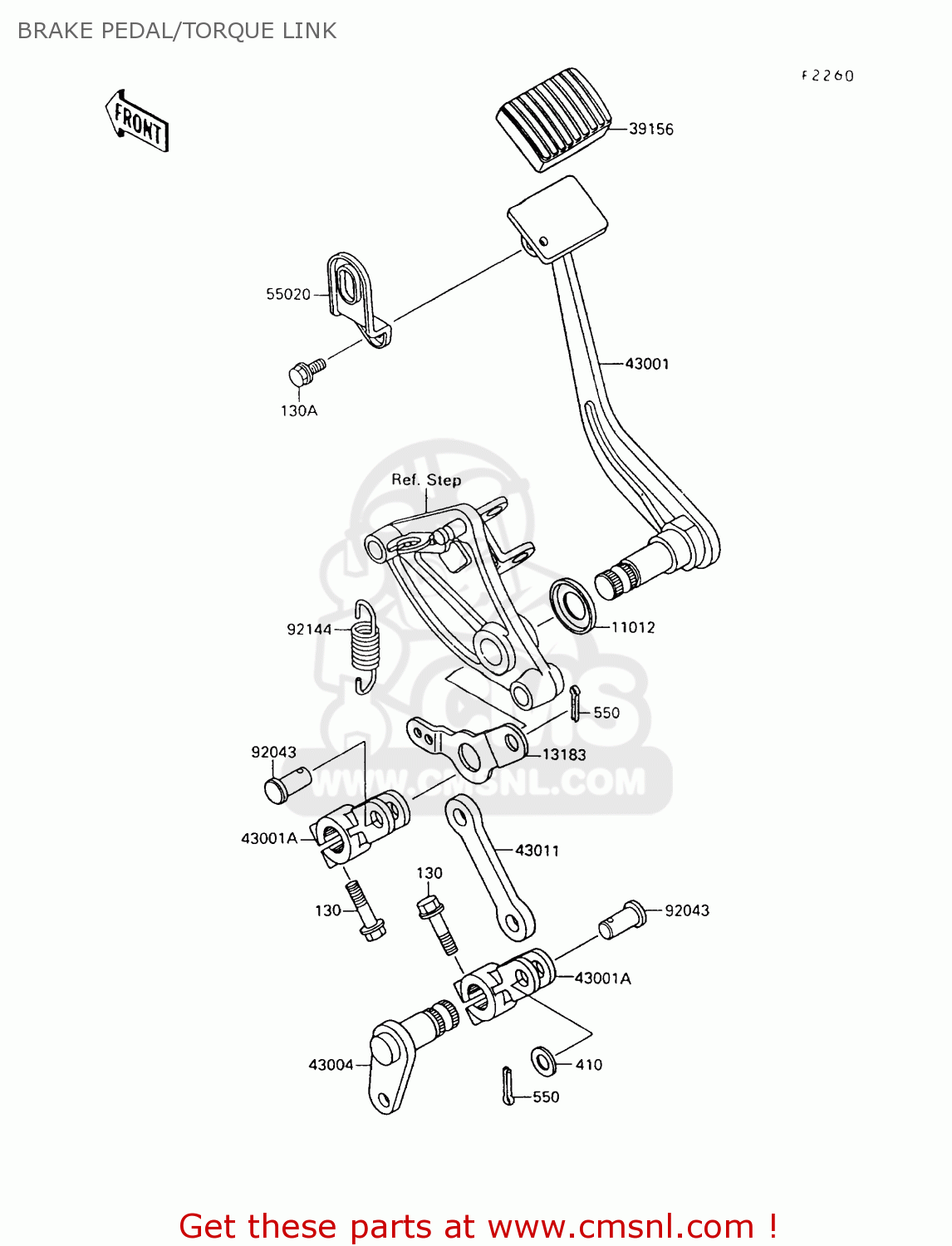

Brake pedal/torque link diagram VN1500A6 VULCAN 88 1992 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0825
ref: 130

BOLT-FLANGED,8X25,BLA

€ 2.00

130A

130N0608
ref: 130A

BOLT,FLANGED,6X8

€ 2.00

410

410F1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 2.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

11012

110121582
ref: 11012

CAP,BRAKE PEDAL

€ 4.50

13183

131831099
ref: 13183

PLATE,BRAKE PEDAL RET

€ 6.00

39156

391561071
ref: 39156

PAD,BRAKE PEDAL

€ 7.50

43001

430011222
ref: 43001

LEVER-BRAKE,PEDAL

€ 83.50

43001A

430011223
ref: 43001A

LEVER-BRAKE,LINK

€ 23.00

43004

430041121
ref: 43004

SHAFT-BRAKE

€ 37.00

43011

430111137
ref: 43011

ROD-BRAKE

€ 7.00

55020

550201268
ref: 55020

GUARD,BRAKE PEDAL

€ 9.00

92043

920431352
ref: 92043

PIN,10X20.5

€ 4.00

92144

921441169
ref: 92144

SPRING,BRAKE PEDAL RE

€ 6.50

BRAKE PEDAL/TORQUE LINK

all assemblies
