TAILLIGHT(S)

VN1500A10 VULCAN 1500 1996 USA CALIFORNIA

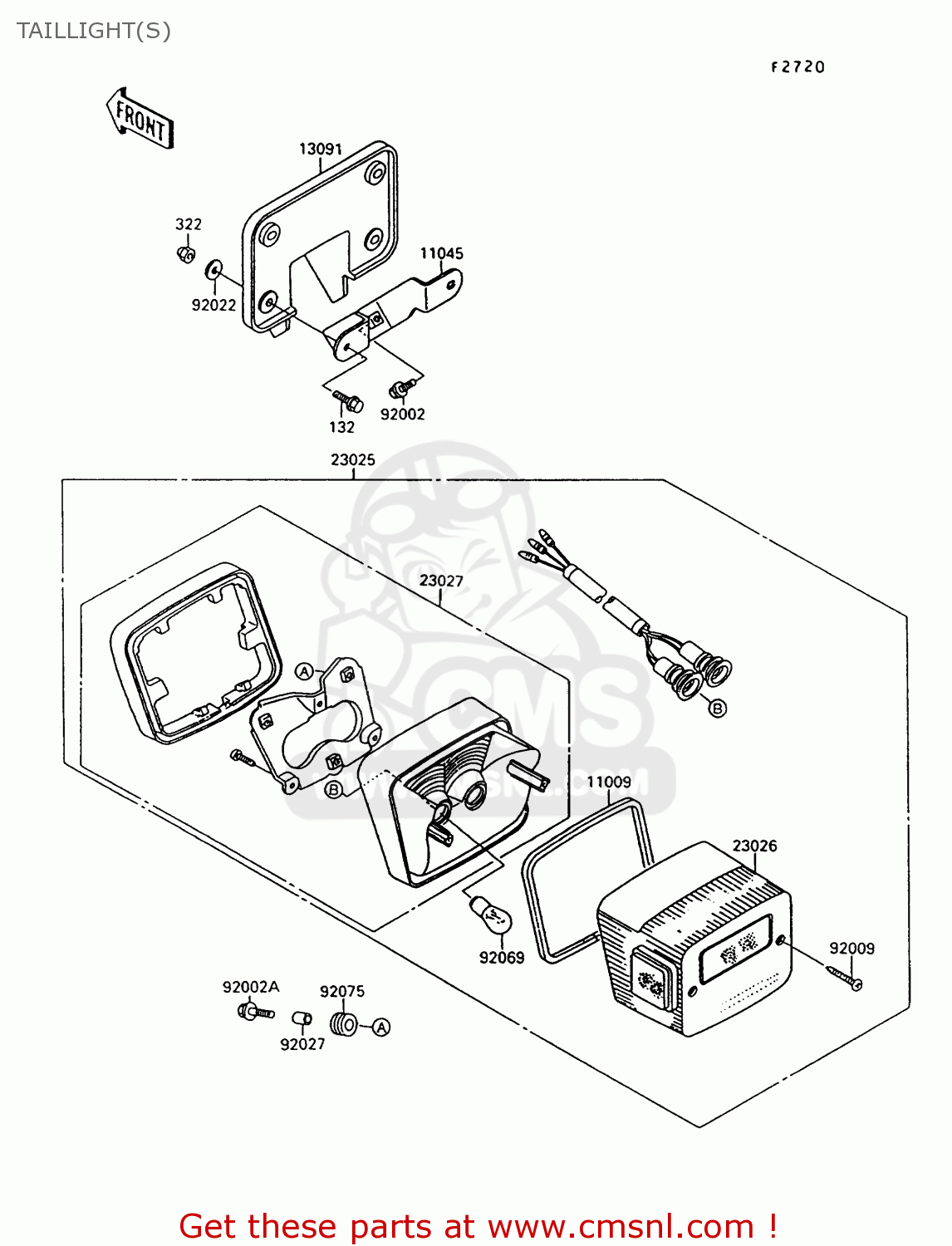

Taillight(s) diagram VN1500A10 VULCAN 1500 1996 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

132

132J0614
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

322

322C0600
ref: 322

NUT-CAP,6MM,BLACK

€ 1.50

11009

110091660
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 5.50

11045

110451582
ref: 11045

BRACKET,LICENSE PLATE

€ 13.50

13091

130911480
ref: 13091

HOLDER,LICENSE PLATE

€ 16.50

23025

230251165
ref: 23025

LAMP-TAIL

€ 439.50

23026

230261087
ref: 23026

LENS,TAIL LAMP

€ 64.50

23027

230271084
ref: 23027

LAMP-TAIL

€ 439.50

92002

920021218
ref: 92002

BOLT,6X14

€ 2.50

92002A

920021262
ref: 92002A

BOLT,6X22

€ 2.00

92009

920091069
ref: 92009

SCREW,TAPPING,4X25

€ 2.50

92022

920221346
ref: 92022

WASHER,6.5X20X1.6,BLA

€ 0.50

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

92069059
ref: 92069

BULB,12V 32/3CP

€ 5.50

92075

92075209
ref: 92075

DAMPER RUBBER

€ 3.00
