FRAME
VN1500A10 VULCAN 1500 1996 USA CALIFORNIA

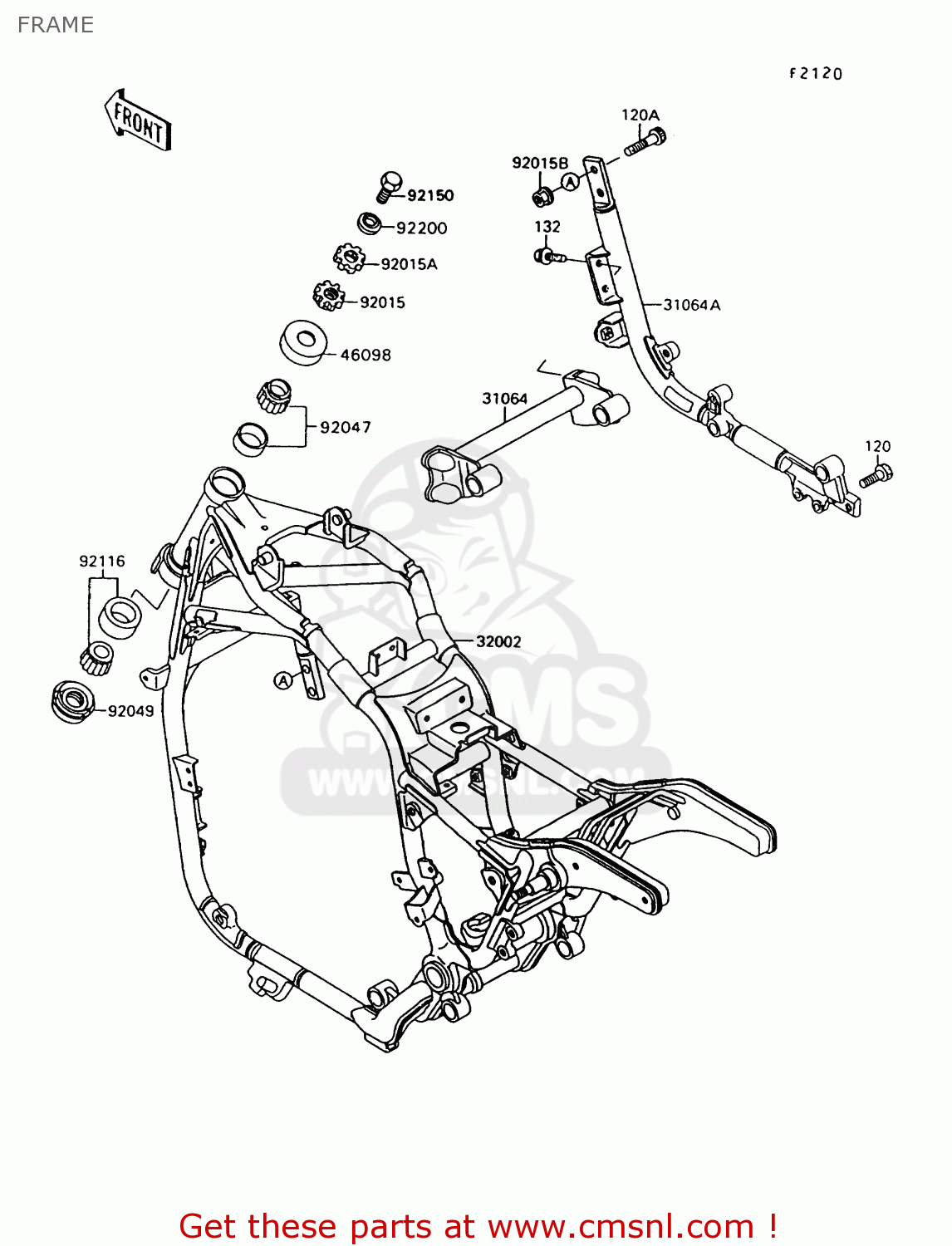

Frame diagram VN1500A10 VULCAN 1500 1996 USA CALIFORNIA
FRAME VN1500A10 VULCAN 1500 1996 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120S1020
ref: 120
BOLT-SOCKET
€ 3.00
120A
120S1030
ref: 120A
BOLT-SOCKET,10X30
€ 3.50
132
132J0816
ref: 132
BOLT-FLANGED-SMALL,8X
€ 2.00
31064
310641083
ref: 31064
PIPE-COMP,FRAME,CROSS
€ 99.00
31064A
310641084
ref: 31064A
PIPE-COMP,FRAME,RH
€ 336.00
32002
320021987
ref: 32002
FRAME,COMPLETE
€ 1,308.00
46098
46098017
ref: 46098
CAP,STEERING STEM
€ 4.00
92015
920151377
ref: 92015
NUT,25MM,T=10
€ 18.50
92015A
920151378
ref: 92015A
NUT,25MM,T=6
€ 14.50
92015B
920151669
ref: 92015B
NUT,FLANGED,10MM
€ 2.00
92047
92047017
ref: 92047
CONE,STRNG,STEM
€ 49.50
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
92150
921501672
ref: 92150
BOLT,14X25
€ 9.50
92200
922001140
ref: 92200
WASHER
€ 8.00
