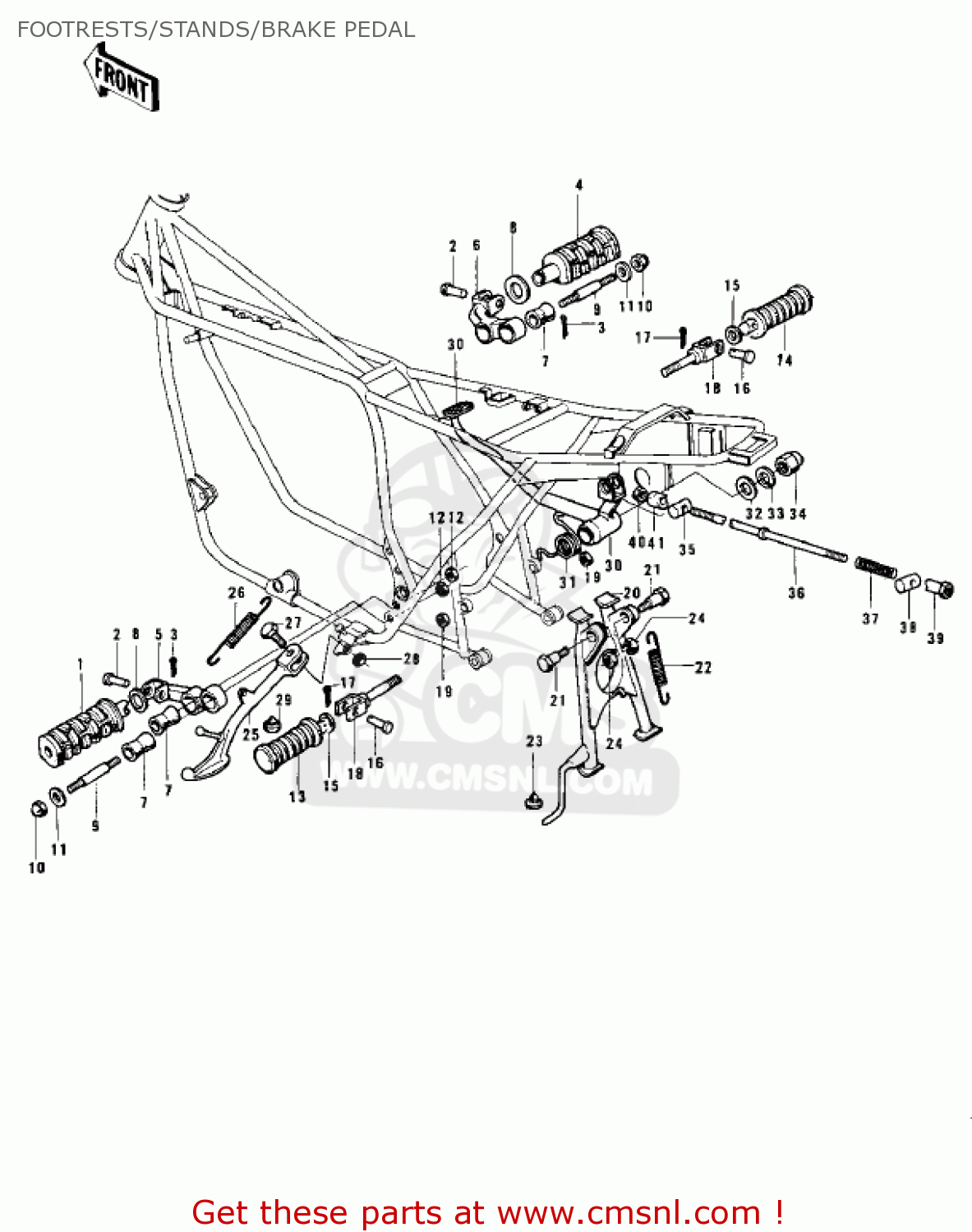

FOOTRESTS/STANDS/BRAKE PEDAL

ref

part #

description

quantity

1

34028011
ref: 1

BAR-FOOTREST,L.H

€ 24.50

2

92043080
ref: 2

PIN-FOOTREST BAR FIT

€ 3.50

3

550D2516
ref: 3

PIN-COTTER,2.5X16

€ 1.50

4

34028012
ref: 4

BAR-FOOTREST,R.H

€ 24.50

5

34003036
ref: 5

BRACKET-FOOTREST,L.H

€ 67.50

6

34003037
ref: 6

BRACKET-FOOTREST,R.H

€ 21.00

7

92075140
ref: 7

DAMPER,STEP

€ 6.00

8

92022250
ref: 8

WASHER,PLAIN

€ 3.00

9

92004048
ref: 9

STUD-FOOTREST BAR FIT

€ 8.00

10

92019013
ref: 10

NUT,CAP,LOCK,8MM

€ 5.50

11

92102010
ref: 11

CAP,STEP

€ 4.50

12

315B1000
ref: 12

NUT,10MM

€ 0.50

13

92076027
ref: 13

DAMPER,STEP,RR

€ 19.00

14

92076027
ref: 14

DAMPER,STEP,RR

€ 19.00

15

92022199
ref: 15

WASHER,20X30X2.3

€ 5.00

16

920431464
ref: 16

PIN

€ 5.50

17

550D2012
ref: 17

PIN,COTTER,2.0X12

€ 0.50

18

33028011
ref: 18

HOLDER,STEP,RR

€ 16.50

19

315B1200
ref: 19

NUT,12MM

€ 0.50

20

340111015
ref: 20

STAND-CENTER

€ 192.00

21

34019014
ref: 21

SHAFT-STAND,CNT

€ 16.00

22

34023012
ref: 22

SPRING,MAIN STAND

€ 10.00

23

92075015
ref: 23

DAMPER RUBB-MAIN STND

€ 3.00

24

92016044
ref: 24

NUT,14MM

€ 4.50

25

34024060
ref: 25

STAND,SIDE

€ 30.00

26

34025005
ref: 26

SPRING-SIDE STAND

€ 5.00

27

92003079
ref: 27

BOLT-SIDE STAND

€ 7.50

28

315B1000
ref: 28

NUT,10MM

€ 0.50

29

92075157
ref: 29

DAMPER RUBBER-SID STN

€ 4.50

30

43001044
ref: 30

PEDAL-BRAKE

€ 131.00

31

43005041
ref: 31

SPRING, BRAKE PEDAL

€ 11.50

32

920221561
ref: 32

WASHER,8.5X20X1.6

€ 2.50

33

461F0800
ref: 33

WASHER-SPRING,8MM

€ 0.50

34

92019013
ref: 34

NUT,CAP,LOCK,8MM

€ 5.50

35

92043095
ref: 35

PIN,REAR BRAKE ROD

€ 12.50

36

43011017
ref: 36

ROD-BRAKE

€ 16.50

37

43012001
ref: 37

SPRING,BRAKE ROD

€ 3.00

38

92043065
ref: 38

PIN-BRAKE ROD

€ 3.50

39

92015042
ref: 39

NUT-BRAKE ROD ADJUST

€ 4.00

40

92019008
ref: 40

NUT-LOCK,6MM

€ 3.00

41

92027177
ref: 41

COLLAR,BRAKE ROD

€ 8.50
