CARBURETORS

KZ900A4 1976 USA CANADA

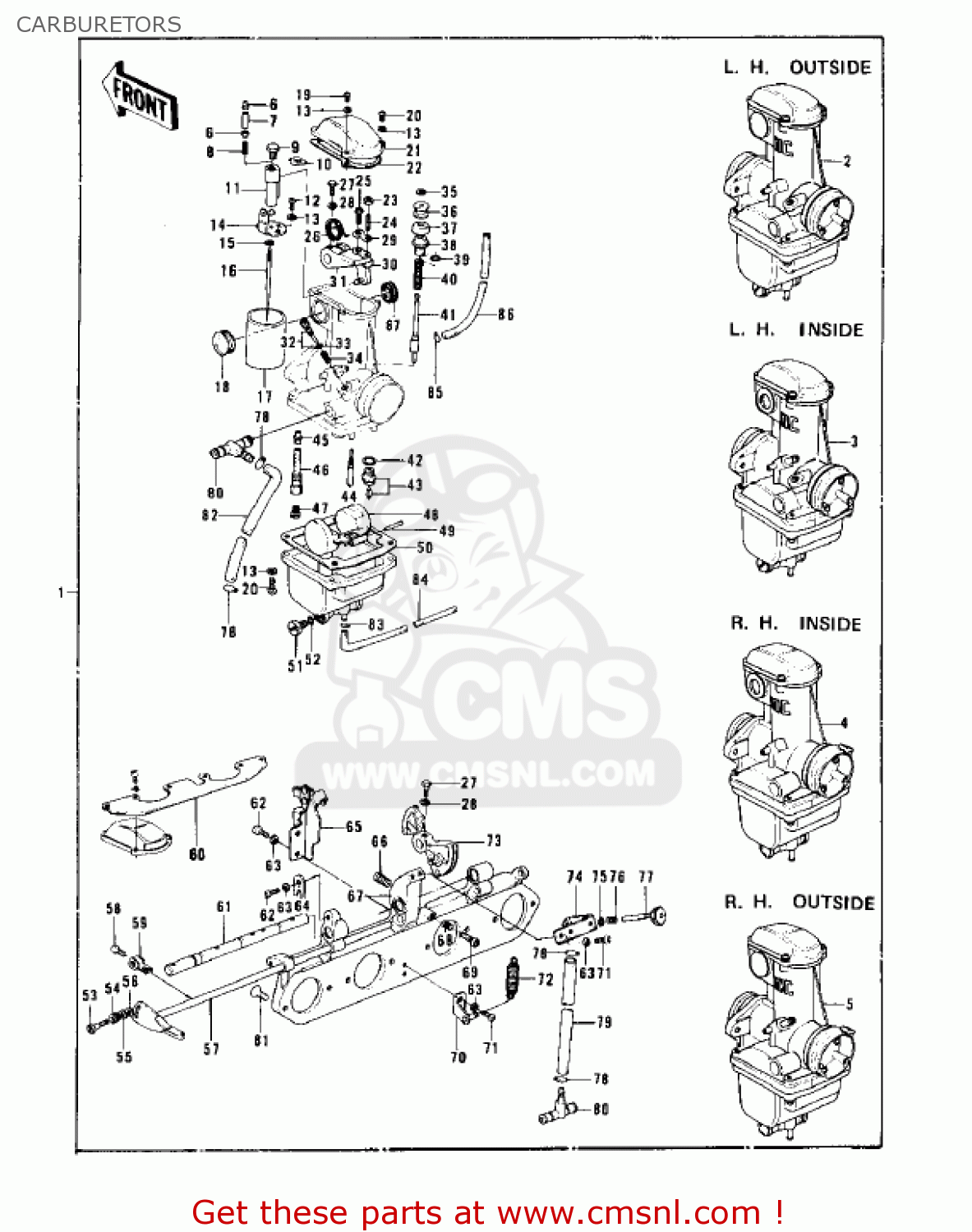

Carburetors diagram KZ900A4 1976 USA CANADA

CARBURETORS KZ900A4 1976 USA CANADA
CARBURETORS KZ900A4 1976 USA CANADA
CARBURETORS KZ900A4 1976 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
16001255
ref: 1
CARBURETOR ASSY
€ 1,005.00
2
16001268
ref: 2
CARBURETOR,L.H OUTSID
€ 124.50
3
16001269
ref: 3
CARBURETOR,L.H INSIDE
€ 371.00
4
16001270
ref: 4
CARBURETOR,R.H OUTSID
€ 358.00
5
16001271
ref: 5
CARBURETOR,R.H INSIDE
€ 130.50
6
16057002
ref: 6
SEAT-SPRING
€ 6.00
7
16065017
ref: 7
HOLDER-THROTTLE SHAFT
16065017
€ 8.00
8
16040004
ref: 8
SPRING,A
16040004
€ 3.50
9
16067008
ref: 9
BOLT
€ 4.50
10
16054003
ref: 10
WASHER,LOCK
16054003
€ 2.50
11
16052003
ref: 11
SHAFT-THROTTLE VALVE
€ 11.50
12
16033027
ref: 12
SCREW,FLOAT CHAMBER
€ 3.00
13
461F0400
ref: 13
WASHER-SPRING,4MM
461F0400
€ 0.50
14
16007018
ref: 14
PLATE-THROTTLE VALVE
16007018
€ 14.00
15
16008010
ref: 15
CLAMP,E-TYPE
16008010
€ 5.00
16
16009071
ref: 16
NEEDLE-JET,5DL3
16009071
€ 29.50
17
16025075
ref: 17
VALVE,THROTTLE CA1.5
16025075
€ 71.50
18
16039042
ref: 18
CAP,RUBBER
16039042
€ 9.00
19
223B0414
ref: 19
SCREW PAN-WS-CROS
€ 2.50
20
16033009
ref: 20
SCREW-FLOAT CHAMBER
16033009
€ 0.50
21
16005027
ref: 21
TOP,MIXING CHAMBER
16005027
€ 15.50
22
16019031
ref: 22
GASKET,CHAMBER,TOP (NAS)
16019031
€ 24.50
23
16003013
ref: 23
NUT,5M/M
16003013
€ 6.00
24
16033025
ref: 24
SCREW,LEVER
16033025
€ 2.00
25
16067009
ref: 25
BOLT,4X16
€ 2.50
26
16040021
ref: 26
SPRING,LEVER
€ 3.00
27
16067006
ref: 27
BOLT-HEX HEAD,5X14
16067006
€ 10.50
28
461F0500
ref: 28
WASHER-SPRING,5MM
461F0500
€ 0.50
29
16054008
ref: 29
WASHER,PLATE
16054008
€ 3.50
30
16068013
ref: 30
LEVER,THROTTLE
16068013
€ 13.00
31
16068012
ref: 31
LEVER
€ 12.00
32
160141004
ref: 32
SCREW-PILOT AIR
160141004
€ 22.00
33
16038022
ref: 33
GASKET,O-RING
16038022
€ 4.50
34
16022007
ref: 34
SPRING-THR STOP SCREW
16022007
€ 5.50
35
16076003
ref: 35
CLAMP
16076003
€ 4.50
36
16073014
ref: 36
COLLAR,STARTER PLUNGE
16073014
€ 5.50
37
16039015
ref: 37
CAP,STARTER PLUNGER
16039015
€ 4.50
38
16012015
ref: 38
CAP-STARTER PLUNGER
16012015
€ 8.50
39
670B1509
ref: 39
O RING,9MM
670B1509
€ 1.00
40
16013008
ref: 40
SPRING-STARTER PLUNG
16013008
€ 4.50
41
16016017
ref: 41
PLUNGER,STARTER
€ 7.00
42
16029004
ref: 42
WASHER-FLOAT VLV SEAT
16029004
€ 2.50
43
16030027
ref: 43
VALVE-FLOAT
16030027
€ 85.00
44
92064042
ref: 44
JET-PILOT,#17.5
92064042
€ 14.00
45
16017093
ref: 45
JET-NEEDLE,O-6
€ 28.00
46
16047004
ref: 46
HOLDER,NEEDLE JET
16047004
€ 13.50
47
92063076
ref: 47
STD
MAIN JET,#115R
92063076
€ 5.50
47
920631038
ref: 47
JET-MAIN,#A110
920631038
€ 10.50
47
92063075
ref: 47
MAIN JET,#112.5R
92063075
€ 10.00
47
92063077
ref: 47
JET-MAIN,#117.5R
92063077
€ 10.00
47
92063078
ref: 47
MAIN JET,#120R
92063078
€ 11.50
48
16031031
ref: 48
FLOAT
16031031
€ 114.50
49
16032003
ref: 49
FLOAT PIN
16032003
€ 4.00
50
110091563
ref: 50
GASKET,FLOAT CHAMBER (NAS)
110091563
€ 14.00
51
16049005
ref: 51
COVER-MAIN JET
16049005
€ 16.00
52
16038016
ref: 52
GASKET,O-RING
16038016
€ 2.50
53
16046005
ref: 53
SCREW
€ 4.50
54
16040009
ref: 54
SPRING,F
16040009
€ 6.50
55
16039020
ref: 55
WASHER,PLAIN
16039020
€ 3.50
56
16039019
ref: 56
WASHER-PLAIN
16039019
€ 3.00
57
16041016
ref: 57
SHAFT,STARTER PLUNGER
€ 69.50
58
16046007
ref: 58
SCREW,PAN HEAD,5X7
€ 6.50
59
131681026
ref: 59
LEVER,STARTER PLUNGER
131681026
€ 13.50
60
16065040
ref: 60
PLATE,CARB CONNECTION
16065040
€ 9.50
61
16041017
ref: 61
SHAFT,CARB CONNECTION
€ 47.50
62
16033016
ref: 62
SCREW-PAN HEAD,5X14
€ 3.50
63
461F0500
ref: 63
WASHER-SPRING,5MM
461F0500
€ 0.50
64
16055012
ref: 64
PLATE,SHAFT STOPPER
16055012
€ 7.00
65
16077014
ref: 65
BRACKET,CABLE PULLY
€ 35.00
66
16040022
ref: 66
SPRING,CABLE PLY BKT
16040022
€ 6.00
67
16065039
ref: 67
HOLDER,CARB MOUNTING
€ 89.00
68
16022010
ref: 68
SPRING,THROTTLE ADJST
€ 4.50
69
16021020
ref: 69
SCREW-THROTTLE STOP
16021020
€ 13.00
70
16077012
ref: 70
BRACKET,CABLE PULLY
€ 7.00
71
16033016
ref: 71
SCREW-PAN HEAD,5X14
€ 3.50
72
16040020
ref: 72
SPRING,CABLE PULLY
16040020
€ 18.50
73
16068011
ref: 73
LEVER,THROTTLE CABLE
€ 23.50
74
16077013
ref: 74
HOLDER,THROTTLE SCREW
€ 16.50
75
464H0500
ref: 75
WASHER-LOCK,5MM
464H0500
€ 0.50
76
16022009
ref: 76
SPRING-THR STOP SCREW
16022009
€ 4.50
77
16021028
ref: 77
SCREW,THROTTLE STOP
€ 20.50
78
92037072
ref: 78
CLAMP,TUBE
92037072
€ 4.00
79
92059144
ref: 79
HOSE, FUEL
92059144
€ 50.50
80
16046002
ref: 80
SCREW,FUEL PIPE
16046002
€ 31.50
81
16033029
ref: 81
SCREW,PAN HEAD,6X14
16033029
€ 3.00
82
92059085
ref: 82
PIPE-OVER FLOW
€ 8.50
83
92037173
ref: 83
CLAMP,TUBE
€ 4.50
84
92059134
ref: 84
HOSE,OVERFLOW
92059134
€ 17.50
85
92037174
ref: 85
CLAMP,BREATHER HOSE
€ 1.50
86
92059135
ref: 86
HOSE,BREATHER
€ 17.00
87
92071102
ref: 87
CARBURETOR GROMMET
€ 18.50
