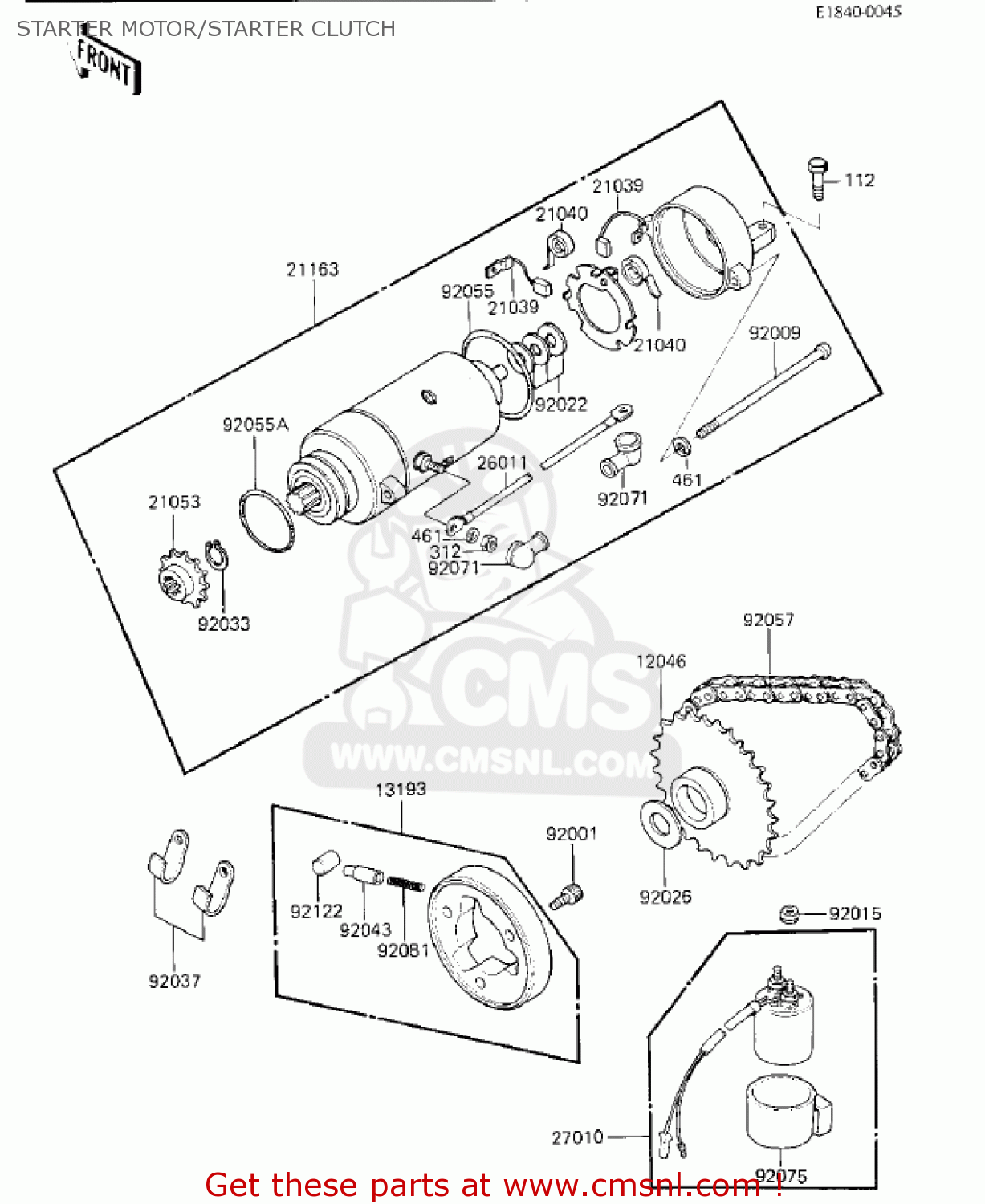

STARTER MOTOR/STARTER CLUTCH

ref

part #

description

quantity

12046

21170003
ref: 12046

GEAR,STARTER CLUTCH

€ 194.00

13193

131931001
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 141.50

21039

21039003
ref: 21039

BRUSH,CARBON

€ 23.50

21040

21040003
ref: 21040

SPRING-BRUSH

€ 4.50

21053

21053003
ref: 21053

SPROCKET,STARTER MOT

€ 25.00

21163

211631020
ref: 21163

STARTER-ELECTRIC

€ 595.00

26011

26010045
ref: 26011

WIRE,STARTER MOTOR LD

€ 24.50

27010

21164005
ref: 27010

SWITCH ASSY,MAGNETIC

€ 99.00

92001

120P0816
ref: 92001

BOLT-SOCKET

€ 2.50

92009

21099005
ref: 92009

SCREW,PAN HEAD,6X20

€ 5.50

92015

92017014
ref: 92015

NUT,LOCK,6MM

€ 4.00

92022

21025011
ref: 92022

WASHER, THRUST, 0.2T

€ 4.00

92026

920261004
ref: 92026

SPACER,25X40X1

€ 4.50

92033

92033034
ref: 92033

CIRCLIP

€ 7.00

92037

21126008
ref: 92037

CLAMP,WIRING HARNESS

€ 3.00

92043

92043087
ref: 92043

PIN

€ 8.00

92055

21027003
ref: 92055

RING-O,STARTER MOTOR

€ 6.00

92055A

21027008
ref: 92055A

O RING, 40M/M

€ 8.50

92057

21070010
ref: 92057

CHAIN,DYNAMO

€ 69.50

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

92075

21064002
ref: 92075

DAMPER,MAGNETIC SWITC

€ 13.50

92081

92081110
ref: 92081

SPRING

€ 3.00

92122

92122004
ref: 92122

ROLLER,15X13

€ 7.00

112

112G0625
ref: 112

BOLT-UPSET,6X25

€ 4.00

312

312B0600
ref: 312

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

all assemblies
