CHASSIS ELECTRICAL EQUIPMENT
KZ750K2 1984 USA CANADA

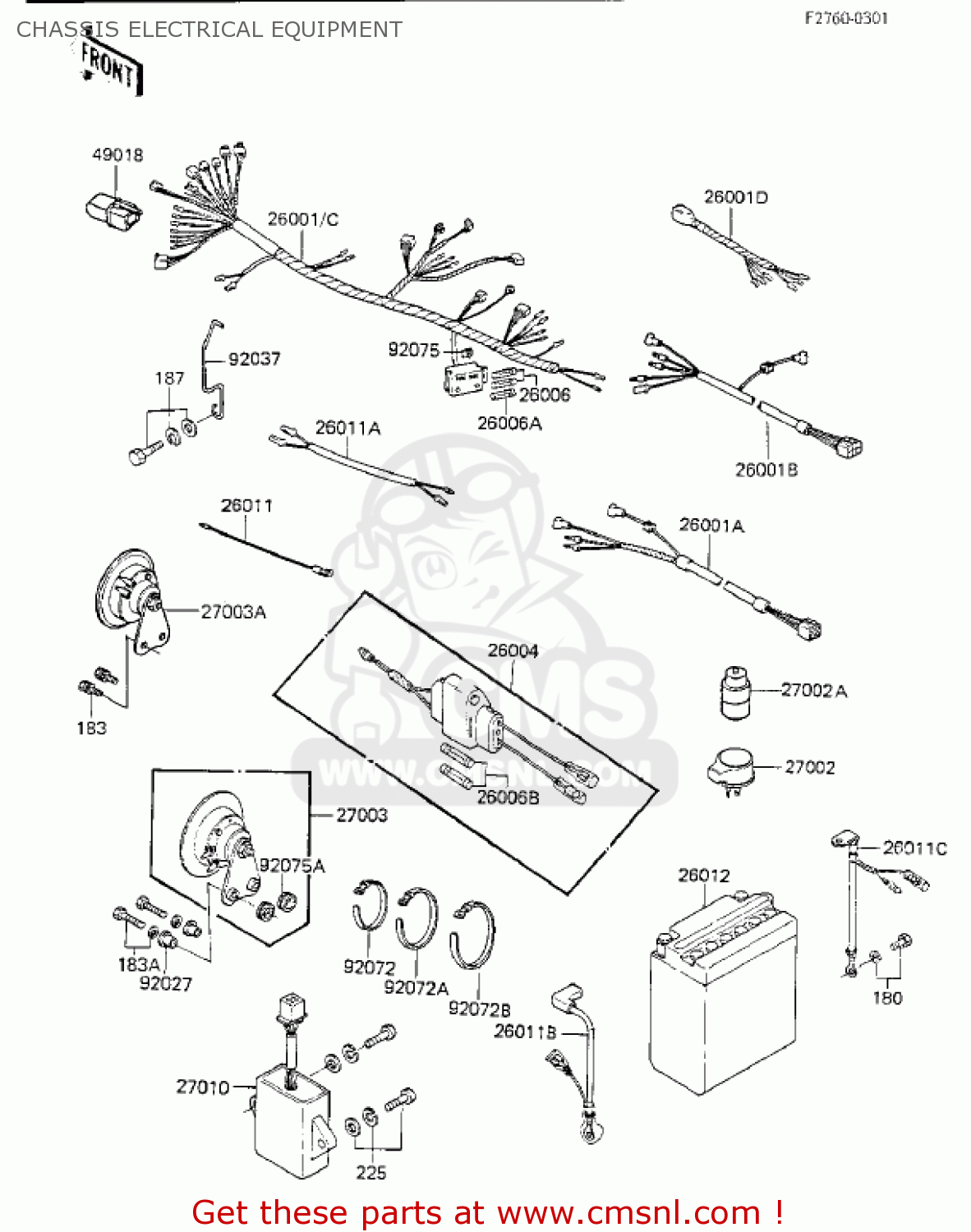

Chassis electrical equipment diagram KZ750K2 1984 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KZ750K2 1984 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
26001
260011457
ref: 26001
HARNESS,MAIN
€ 122.50
26001A
260011458
ref: 26001A
HARNESS
€ 16.50
26001B
260011663
ref: 26001B
HARNESS,ENGINE (Canada)
€ 0.00
26001C
260011664
ref: 26001C
HARNESS,MAIN (Canada)
€ 0.00
26001D
26002063
ref: 26001D
WIRING HARNESS, REAR
€ 20.00
26004
260041016
ref: 26004
FUSE-ASSY,ACCESSORY
€ 41.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
26006005
ref: 26006A
FUSE 20A
€ 3.50
26006B
260061002
ref: 26006B
FUSE,10A,L=30M/M
€ 3.00
26011
26011063
ref: 26011
WIRE-LEAD,L=185
€ 5.00
26011A
260111132
ref: 26011A
WIRE-LEAD
€ 6.00
26011B
260111145
ref: 26011B
WIRE-LEAD,BATTERY
€ 20.00
26011C
260111146
ref: 26011C
WIRE-LEAD,BATTERY
€ 16.50
26012
260121008
ref: 26012
BATTERY,12V13AH W/LAB
€ 101.50
27002
27002011
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 69.50
27002A
270021051
ref: 27002A
RELAY-ASSY
€ 32.00
27003
27003074
ref: 27003
HORN
€ 55.50
27003A
27003076
ref: 27003A
HORN
€ 84.00
27010
270101077
ref: 27010
SWITCH,TURN SIGNAL OP
€ 55.00
49018
490181052
ref: 49018
DIODE
€ 35.50
92027
92027271
ref: 92027
COLLAR,HORN FITTING
€ 2.00
92037
920371370
ref: 92037
CLAMP,HARNESS
€ 6.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
92075
92075279
ref: 92075
DAMPER,FUSE
€ 3.50
92075A
92075294
ref: 92075A
DAMPER RUBBER,HORN MT
€ 2.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
183
183B0816
ref: 183
BOLT-UPSET-WS-SMALL
€ 0.50
183A
183B0825
ref: 183A
BOLT-UPSET-WS-SMALL
€ 0.50
187
187B0616
ref: 187
BOLT-UPSET-WSP
€ 0.50
225
225B0620
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
