HEADLIGHT ('80 KZY 50-E1)
KZ750E2 1981 USA CANADA

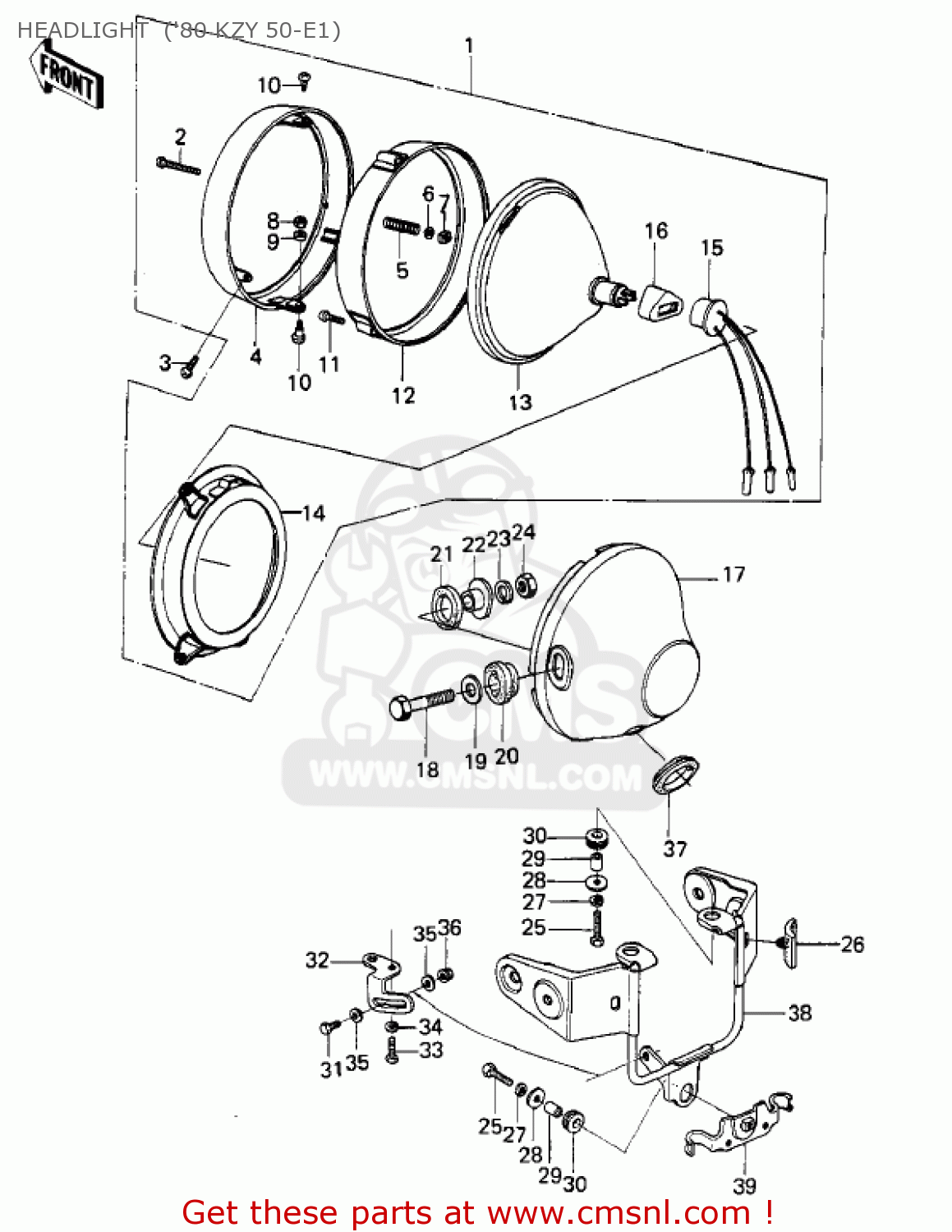

Headlight ('80 kzy 50-e1) diagram KZ750E2 1981 USA CANADA
HEADLIGHT ('80 KZY 50-E1) KZ750E2 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
230041009
ref: 1
HEADLAMP,UNIT
€ 90.00
2
23019021
ref: 2
SCREW-FORCUS ADJUST
€ 3.00
3
23019022
ref: 3
SCREW-SPECIAL,5X14
€ 1.50
4
23006038
ref: 4
RIM-LAMP
€ 56.50
5
23014005
ref: 5
SPRING-FOCUS ADJUST
€ 2.50
6
23021004
ref: 6
WASHER,4.1X8X0.8
€ 2.00
7
23020018
ref: 7
NUT,4MM,FOCUS ADJUST
€ 3.00
8
23020023
ref: 8
NUT,5MM
€ 3.00
9
23021012
ref: 9
WASHER
€ 3.00
10
23019023
ref: 10
SCREW-PAN HEAD,5X12
€ 3.50
11
220B0312
ref: 11
SCREW-PAN CROS,3X12
€ 2.00
12
23072001
ref: 12
RETAINER,HEAD LAMP
€ 26.00
13
230071006
ref: 13
SEALED BEAM UNIT
€ 74.50
14
23074001
ref: 14
HOLDER,HEAD LAMP
€ 28.00
15
23008037
ref: 15
SOCKET-ASSY,HEAD LAMP
€ 12.50
16
490161009
ref: 16
HEADLAMP DUST COVER
€ 3.50
17
23005101521
ref: 17
FLAT BLAC
BODY-COMP-HEAD LAMP,F
€ 136.50
18
92007024
ref: 18
BOLT,10MM
€ 4.50
19
411D1000
ref: 19
WASHER-PLAIN,10MM
€ 3.00
20
23066022
ref: 20
DAMPER
€ 6.00
21
23066021
ref: 21
DAMPER
€ 6.00
22
23052011
ref: 22
COLLAR,HEAD LAMP
€ 8.50
23
461F1000
ref: 23
WASHER-SPRING,10MM
€ 0.50
24
315B1000
ref: 24
NUT,10MM
€ 0.50
25
112G0625
ref: 25
BOLT-UPSET,6X25
€ 4.00
26
920751243
ref: 26
DAMPER
€ 3.50
27
461F0600
ref: 27
WASHER-SPRING,6MM
€ 0.50
28
92022125
ref: 28
WASHER,6.5X20X1.6
€ 1.00
29
92027241
ref: 29
COLLAR
€ 4.50
30
92075209
ref: 30
DAMPER RUBBER
€ 3.00
31
112G0612
ref: 31
BOLT-UPSET
€ 2.50
32
110341676
ref: 32
BRACKET,HEAD LAMP
€ 8.00
33
115G0816
ref: 33
BOLT-HEX,HEAD 8X16
€ 0.50
34
461F0800
ref: 34
WASHER-SPRING,8MM
€ 0.50
35
411B0600
ref: 35
WASHER-PLAIN,6MM
€ 0.50
36
92017014
ref: 36
NUT,LOCK,6MM
€ 4.00
37
920711008
ref: 37
GROMMET
€ 4.00
38
110341674
ref: 38
BRACKET,HEAD LAMP
€ 103.50
39
110341675
ref: 39
BRACKET,HEAD LAMP,UND
€ 3.50
