CLUTCH ('80 KZY 50-E1)
KZ750E2 1981 USA CANADA

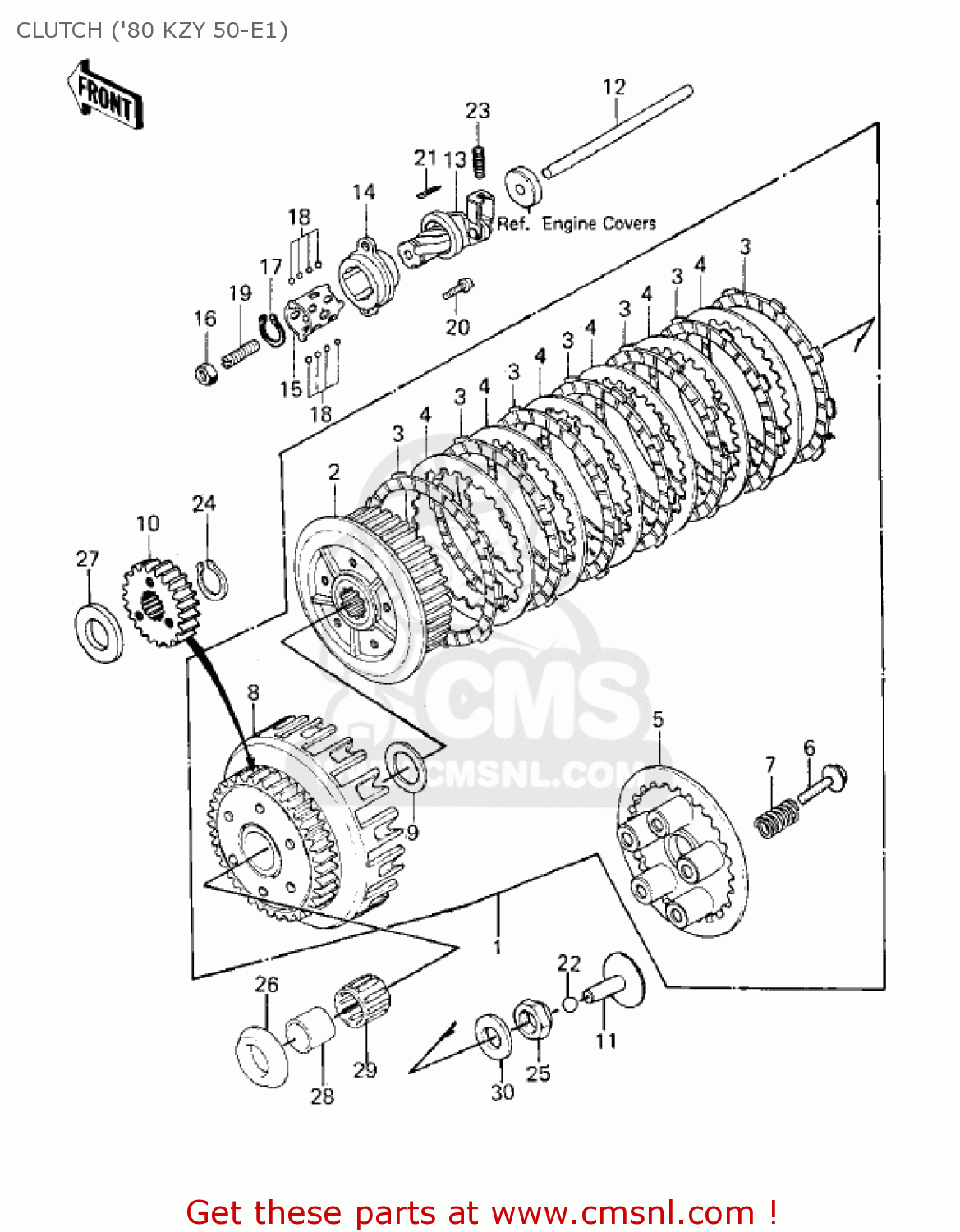

Clutch ('80 kzy 50-e1) diagram KZ750E2 1981 USA CANADA
CLUTCH ('80 KZY 50-E1) KZ750E2 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
130811034
ref: 1
CLUTCH ASSY
€ 386.50
2
13087043
ref: 2
HUB-CLUTCH
€ 131.00
3
13088030
ref: 3
PLATE-FRICTION (NAS)
€ 14.50
4
13089022
ref: 4
PLATE-CLUTCH (NAS)
€ 8.50
5
13187006
ref: 5
PLATE-CLUTCH OPERATIN (NAS)
€ 44.50
6
920011066
ref: 6
BOLT, CLUTCH SPR FITT
€ 4.00
7
920811176
ref: 7
SPRING,CLUTCH
€ 6.50
8
130951033
ref: 8
HOUSING,CLUTCH
€ 506.00
9
92026022
ref: 9
SPACER,25.5X47X2.5
€ 6.50
10
13121037
ref: 10
GEAR, 29T
€ 101.50
11
13116022
ref: 11
ROD-PUSH,CLUTCH SPRIN
€ 15.50
12
131161007
ref: 12
ROD-PUSH,CLUTCH,8X270
€ 27.00
13
13102027
ref: 13
INNER, CLUTCH RELEASE
€ 37.50
14
13118011
ref: 14
OUTER,CLUTCH REREASEL
€ 14.00
15
13197004
ref: 15
RETAINER
€ 1.00
16
318B0800
ref: 16
NUT,8MM
€ 0.50
17
480J1500
ref: 17
CIRCLIP-TYPE-C,15MM
€ 1.00
18
600A0400
ref: 18
BALL-STEEL,1/8
€ 2.00
19
92014014
ref: 19
SCREW-SLOTTED,8X25
€ 4.00
20
220B0616
ref: 20
SCREW-PAN HEAD,6X16
€ 2.50
21
550D1615
ref: 21
PIN-COTTER,1.6X15
€ 1.50
22
600A1200
ref: 22
BALL-STEEL,3/8
€ 0.50
23
92081069
ref: 23
SPRING-CLUTCH RELEASE
€ 4.50
24
480J2200
ref: 24
CIRCLIP-TYPE-C,22MM
€ 3.00
25
920151555
ref: 25
NUT,20MM
€ 9.00
26
92026116
ref: 26
SPACER,THRUST,T=5.5MM
€ 12.00
27
92027263
ref: 27
COLLAR,23X46X4.5
€ 4.00
28
92028178
ref: 28
BUSHING,CLUTCH
€ 17.00
29
92046028
ref: 29
BEARING-NEEDLE,KTV323
€ 20.50
30
92125002
ref: 30
WASHER,SPRING,20MM
€ 8.50
