CRANKCASE BOLT & STUD PATTERN

KZ750B1 1976 USA CANADA / MPH KPH

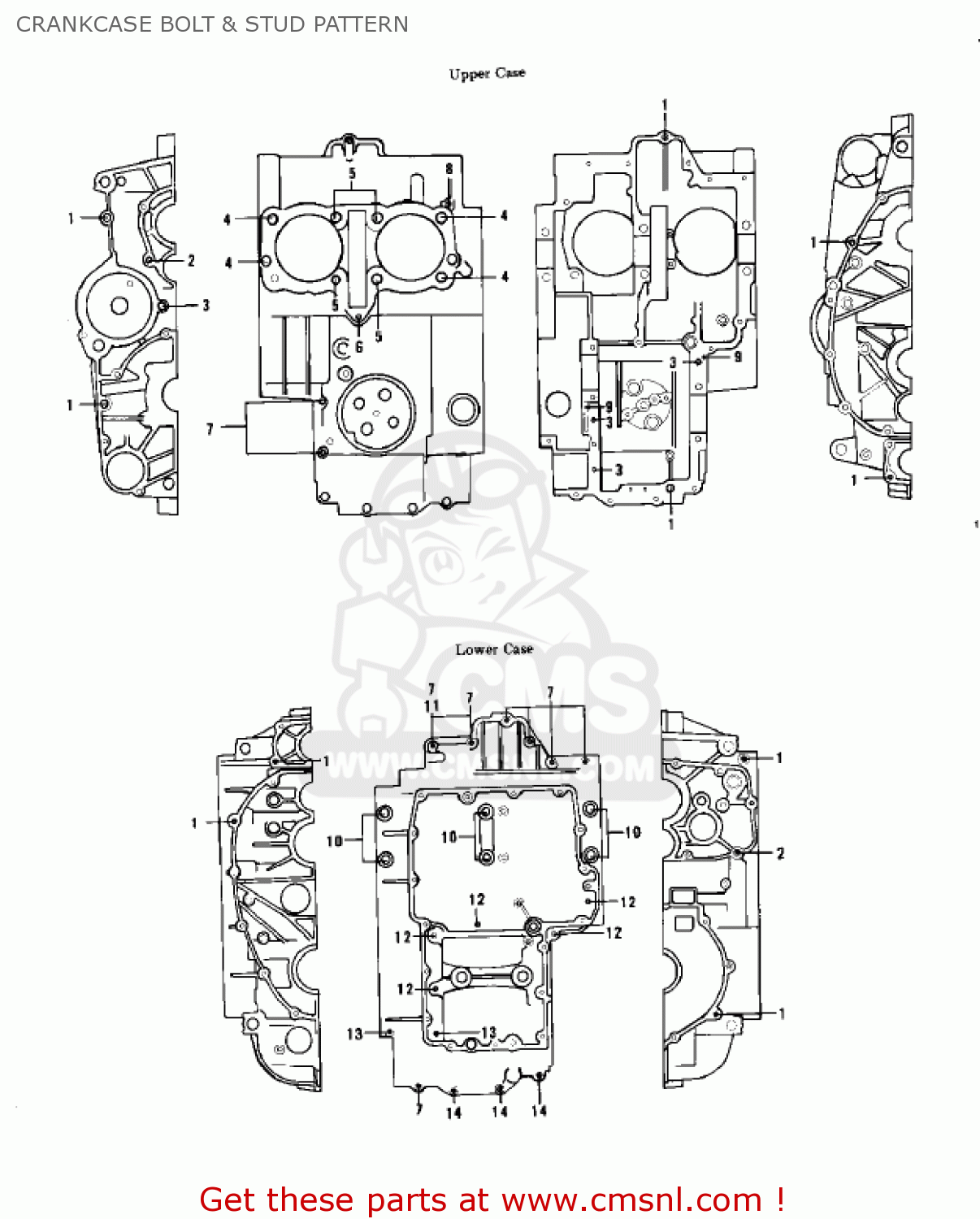

Crankcase bolt & stud pattern diagram KZ750B1 1976 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

920431037
ref: 1

PIN,DOWEL,10X8.2X14

€ 0.50

92042007
ref: 2

PIN-DOWEL

€ 4.00

92042016
ref: 3

PIN,DOWEL,6X16

€ 3.50

920041003
ref: 4

STUD, 10X158

€ 10.50

920041002
ref: 5

STUD, 10X167

€ 10.50

92004059
ref: 6

STUD

€ 4.00

92003110
ref: 7

BOLT-HEX HEAD,6X54

€ 1.50

92003194
ref: 8

BOLT,6X105

€ 1.50

92062011
ref: 9

NOZZLE,OIL

€ 5.50

92003187
ref: 10

BOLT,10X115

€ 7.00

21126008
ref: 11

CLAMP,WIRING HARNESS

€ 3.00

130G0695
ref: 12

BOLT-FLANGED,6X95

€ 3.50

130G0670
ref: 13

BOLT-FLANGED,6X70

€ 0.50

92003109
ref: 14

BOLT-HEX HEAD,6X41

€ 5.50
