AIR CLEANER/MUFFLERS
KZ750B1 1976 USA CANADA / MPH KPH

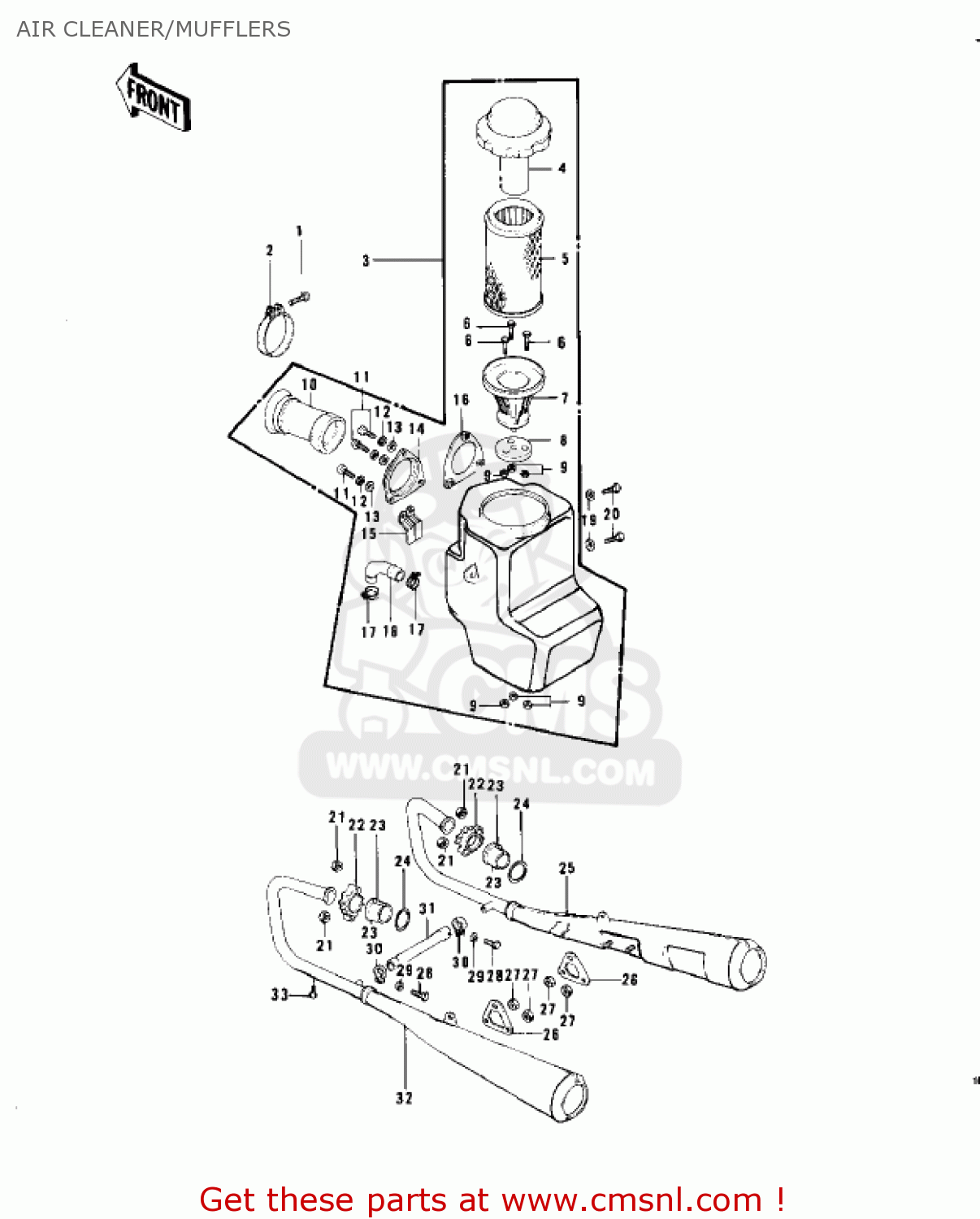

Air cleaner/mufflers diagram KZ750B1 1976 USA CANADA / MPH KPH
AIR CLEANER/MUFFLERS KZ750B1 1976 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
220B0535
ref: 1
SCREW-PAN-CROS
€ 2.00
2
92037171
ref: 2
CLAMP
€ 9.00
3
11010109
ref: 3
KZ750-B1
AIR CLEANER ASSY
€ 174.00
3
11010109
ref: 3
KZ750-B2/B3/B4
AIR CLEANER ASSY
€ 174.00
4
11015049
ref: 4
PIPE,INLET
€ 28.00
5
11013051
ref: 5
ELEMENT-AIR FILTER
€ 17.00
6
112G0620
ref: 6
BOLT 6X20
€ 1.00
7
11033004
ref: 7
HOLDER,AIR CLEANER
€ 9.50
8
11039001
ref: 8
GASKET
€ 3.00
9
311B0600
ref: 9
NUT,6MM
€ 0.50
10
11026018
ref: 10
DUCT
€ 18.00
11
220B0416
ref: 11
SCREW-PAN-CROS
€ 2.00
12
461F0400
ref: 12
WASHER-SPRING,4MM
€ 0.50
13
410B0400
ref: 13
WASHER-PLAIN-SMALL,4M
€ 0.50
14
11040004
ref: 14
HOLDER,AIR INLET DUCT
€ 9.50
15
11040006
ref: 15
PLATE,CARB HOLDER
€ 10.00
16
11040005
ref: 16
PLATE,CARB HOLDER
€ 8.50
17
92037123
ref: 17
CLAMP,BREATHER PIPE
€ 2.50
17
92037192
ref: 17
CLAMP,BREATHER HOSE
€ 4.00
18
92059121
ref: 18
TUBE
€ 8.50
19
92022125
ref: 19
WASHER,6.5X20X1.6
€ 1.00
20
112G0616
ref: 20
BOLT UPSET,6X16
€ 1.00
21
92017013
ref: 21
NUT,LOCK,8MM
€ 5.50
22
18069060
ref: 22
HOLDER,EXHUST PIPE
€ 35.00
23
92027248
ref: 23
COLLAR,EXHAUST PIPE
€ 3.50
24
110091840
ref: 24
GASKET,EXHAUST PIPE H (NAS)
€ 7.00
25
18001217
ref: 25
KZ750-B1
MUFFLER ASSY,R.H.
€ 856.50
25
18001217
ref: 25
KZ750-B2/B3
MUFFLER ASSY,R.H.
€ 856.50
25
18001217
ref: 25
KZ750-B4
MUFFLER ASSY,R.H.
€ 856.50
26
18024028
ref: 26
BRACKET,MUFFLER
€ 15.00
27
92017013
ref: 27
NUT,LOCK,8MM
€ 5.50
28
115G0825
ref: 28
BOLT-HEX,HEAD,8X25
€ 3.00
29
461F0800
ref: 29
WASHER-SPRING,8MM
€ 0.50
30
920371219
ref: 30
CLAMP
€ 8.50
31
320321752
ref: 31
PIPE
€ 24.50
32
18001216
ref: 32
KZ750-B1
MUFFLER ASSY,L.H
€ 691.50
32
18001216
ref: 32
KZ750-B2/B3
MUFFLER ASSY,L.H
€ 691.50
32
18001216
ref: 32
KZ750-B4
MUFFLER ASSY,L.H
€ 691.50
33
110R0610
ref: 33
KZ750-B4
BOLT,6X10
€ 5.00
