CARBURETORS/ACCELERATOR PUMP (KZ

KZ650B2A 1978 USA CANADA / MPH KPH

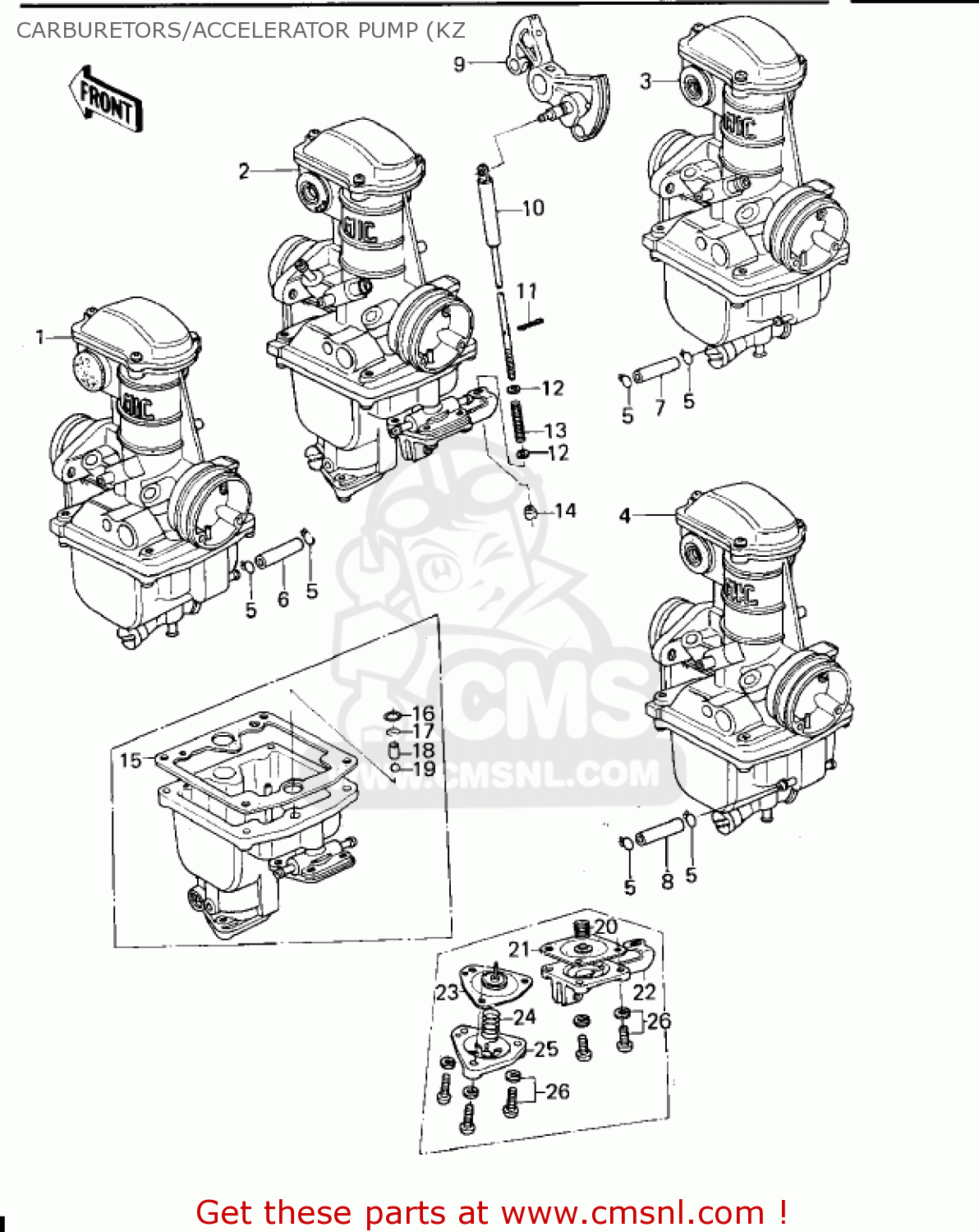

Carburetors/accelerator pump (kz diagram KZ650B2A 1978 USA CANADA / MPH KPH

CARBURETORS/ACCELERATOR PUMP (KZ KZ650B2A 1978 USA CANADA / MPH KPH
CARBURETORS/ACCELERATOR PUMP (KZ KZ650B2A 1978 USA CANADA / MPH KPH
CARBURETORS/ACCELERATOR PUMP (KZ KZ650B2A 1978 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
160011122
ref: 1
1
CARBURETOR,OUTSIDE,LH
€ 253.50
1
160011122
ref: 1
1
CARBURETOR,OUTSIDE,LH
€ 253.50
2
160011123
ref: 2
1
CARBURETOR,INSIDE,LH
€ 310.50
2
160011123
ref: 2
1
CARBURETOR,INSIDE,LH
€ 310.50
3
160011124
ref: 3
1
CARBURETOR,INSIDE,RH
€ 253.50
3
160011124
ref: 3
1
CARBURETOR,INSIDE,RH
€ 253.50
4
160011125
ref: 4
1
CARBURETOR,OUTSIDE,RH
€ 310.50
4
160011125
ref: 4
1
CARBURETOR,OUTSIDE,RH
€ 310.50
5
920371124
ref: 5
6
CLAMP,TUBE
920371124
€ 4.00
5
920371124
ref: 5
6
CLAMP,TUBE
920371124
€ 4.00
6
920591072
ref: 6
1
TUBE,3.5X7.5X47.5
€ 7.00
6
920591072
ref: 6
1
TUBE,3.5X7.5X47.5
€ 7.00
7
920591071
ref: 7
1
TUBE,
920591071
€ 14.00
7
920591071
ref: 7
1
TUBE,
920591071
€ 14.00
8
920591072
ref: 8
1
TUBE,3.5X7.5X47.5
€ 7.00
8
920591072
ref: 8
1
TUBE,3.5X7.5X47.5
€ 7.00
9
132361014
ref: 9
1
THROTTLE CABLE PULLEY
132361014
€ 15.50
9
132361014
ref: 9
1
THROTTLE CABLE PULLEY
132361014
€ 15.50
10
461021007
ref: 10
1
PUMP ROD ASSEMBLY
€ 24.50
10
461021007
ref: 10
1
PUMP ROD ASSEMBLY
€ 24.50
11
550D1006
ref: 11
1
COTTER PIN,1.0X6
€ 2.00
11
550D1006
ref: 11
1
COTTER PIN,1.0X6
€ 2.00
12
920221138
ref: 12
2
PUMP ROD WASHER
€ 2.00
12
920221138
ref: 12
2
PUMP ROD WASHER
€ 2.00
13
920811138
ref: 13
1
SPRING, PUMP ROD
920811138
€ 4.50
13
920811138
ref: 13
1
SPRING, PUMP ROD
920811138
€ 4.50
14
920151075
ref: 14
1
NUT, PUMP ROD
920151075
€ 5.50
14
920151075
ref: 14
1
NUT, PUMP ROD
920151075
€ 5.50
15
110091562
ref: 15
4
GASKET,FLOAT CHAMBER (NAS)
110091562
€ 12.50
15
110091562
ref: 15
4
GASKET,FLOAT CHAMBER (NAS)
110091562
€ 12.50
16
16038016
ref: 16
4
GASKET,O-RING
16038016
€ 2.50
16
16038016
ref: 16
4
GASKET,O-RING
16038016
€ 2.50
17
920371123
ref: 17
4
CLAMP,SPRING,CHECK VA
920371123
€ 3.50
17
920371123
ref: 17
4
CLAMP,SPRING,CHECK VA
920371123
€ 3.50
18
130421004
ref: 18
4
WEIGHT,PUMP,CHECK VAL
130421004
€ 3.50
18
130421004
ref: 18
4
WEIGHT,PUMP,CHECK VAL
130421004
€ 3.50
19
921401003
ref: 19
4
BALL,STEEL,5/32
921401003
€ 3.50
19
921401003
ref: 19
4
BALL,STEEL,5/32
921401003
€ 3.50
20
920811139
ref: 20
1
PUMP DIAPHRAGM SPRING
920811139
€ 2.00
20
920811139
ref: 20
1
PUMP DIAPHRAGM SPRING
920811139
€ 2.00
21
430281012
ref: 21
1
DIAPHRAGM,PUMP
430281012
€ 64.50
21
430281012
ref: 21
1
DIAPHRAGM,PUMP
430281012
€ 64.50
22
140251139
ref: 22
1
PUMP COVER ASSEMBLY
140251139
€ 40.50
22
140251139
ref: 22
1
PUMP COVER ASSEMBLY
140251139
€ 40.50
23
430281010
ref: 23
1
DIAPHRAGM,SENSOR
430281010
€ 86.50
23
430281010
ref: 23
1
DIAPHRAGM,SENSOR
430281010
€ 86.50
24
920811137
ref: 24
1
SENSOR DIAPHRAGM SPRING
920811137
€ 2.50
24
920811137
ref: 24
1
SENSOR DIAPHRAGM SPRING
920811137
€ 2.50
25
140251121
ref: 25
1
COVER,SENSOR CARBURET
140251121
€ 19.00
25
140251121
ref: 25
1
COVER,SENSOR CARBURET
140251121
€ 19.00
26
223B0414
ref: 26
7
SCREW PAN-WS-CROS
€ 2.50
26
223B0414
ref: 26
7
SCREW PAN-WS-CROS
€ 2.50
