CAMSHAFTS/VALVES
KZ650B2A 1978 USA CANADA / MPH KPH

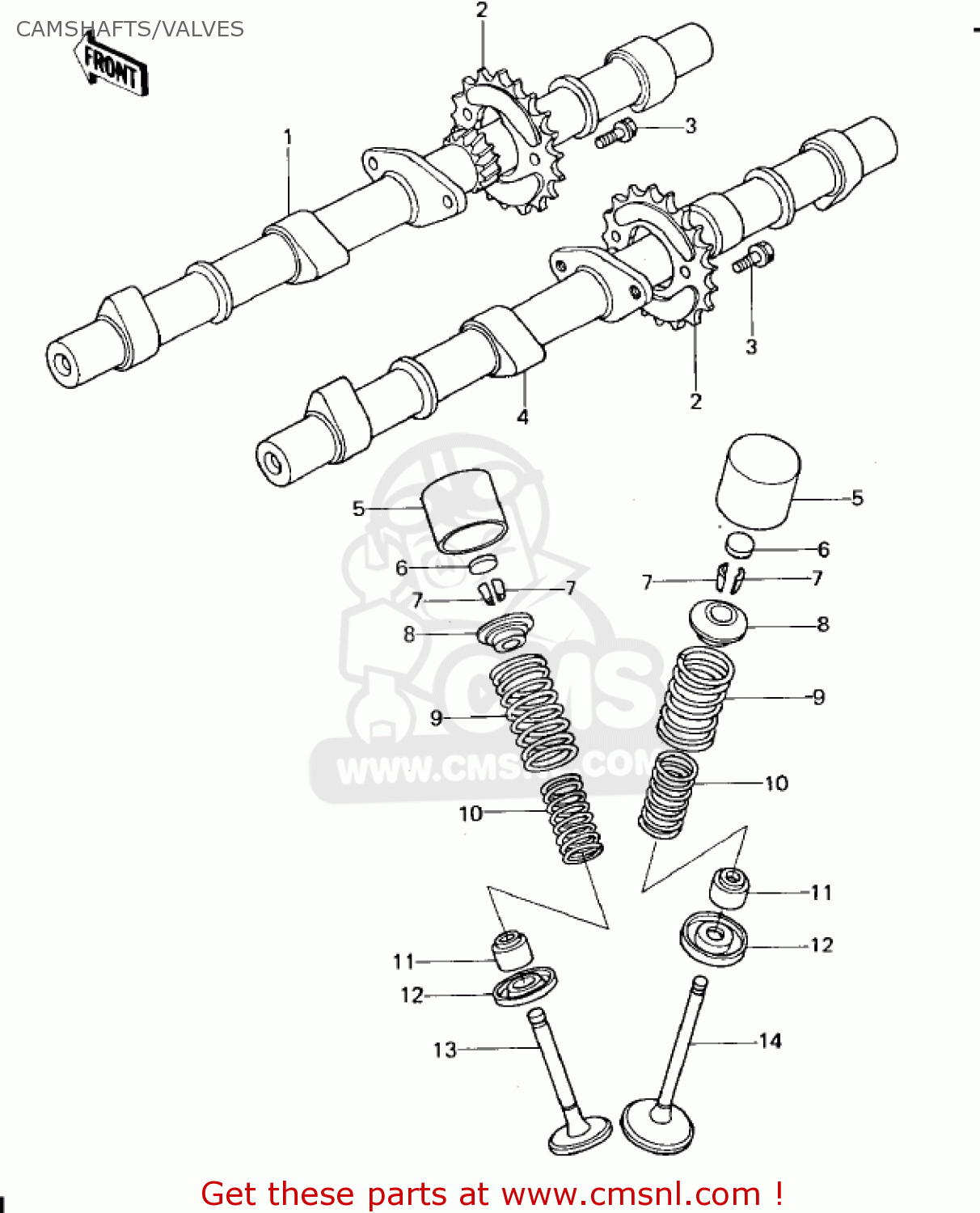

Camshafts/valves diagram KZ650B2A 1978 USA CANADA / MPH KPH
CAMSHAFTS/VALVES KZ650B2A 1978 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
12044013
ref: 1
CAMSHAFT-VALVE,EXHAUS
€ 298.50
2
12046004
ref: 2
SPROCKET,CAM
€ 44.00
3
92003208
ref: 3
BOLT,SPROCKET FITTING
€ 2.50
4
12044012
ref: 4
CAM SHAFT, INLET
€ 266.00
5
120321001
ref: 5
TAPPET
€ 37.50
6
920251090
ref: 6
SHIM,T=2.00
€ 8.00
6
920251091
ref: 6
SHIM,T=2.05
€ 8.00
6
920251092
ref: 6
SHIM,T=2.10
€ 8.00
6
920251093
ref: 6
SHIM,T=2.15
€ 8.00
6
920251094
ref: 6
SHIM,T=2.20
€ 8.00
6
920251095
ref: 6
SHIM,T=2.25
€ 8.00
6
920251096
ref: 6
SHIM,T=2.30
€ 8.00
6
920251097
ref: 6
SHIM,T=2.35
€ 8.00
6
920251098
ref: 6
SHIM,T=2.40
€ 8.00
6
920251099
ref: 6
SHIM,T=2.45
€ 8.00
6
920251100
ref: 6
SHIM,T=2.50
€ 8.00
6
920251101
ref: 6
SHIM,T=2.55
€ 8.00
6
920251102
ref: 6
SHIM,T=2.60
€ 8.00
6
920251103
ref: 6
SHIM,T=2.65
€ 8.00
6
920251104
ref: 6
SHIM,T=2.70
€ 7.00
6
920251105
ref: 6
SHIM,T=2.75
€ 7.00
6
920251106
ref: 6
SHIM,T=2.80
€ 7.50
6
920251107
ref: 6
SHIM,T=2.85
€ 7.00
6
920251108
ref: 6
SHIM,T=2.90
€ 7.50
6
920251109
ref: 6
SHIM,T=2.95
€ 8.00
6
920251110
ref: 6
SHIM,T=3.00
€ 8.00
6
920251111
ref: 6
SHIM,T=3.05
€ 7.50
6
920251112
ref: 6
SHIM,T=3.10
€ 8.00
6
920251113
ref: 6
SHIM,T=3.15
€ 8.00
6
920251114
ref: 6
SHIM,T=3.20
€ 8.00
7
12011004
ref: 7
COLLET,RETAINER
€ 3.50
8
12009008
ref: 8
RETAINER-VALVE SPRING
€ 8.00
9
12007012
ref: 9
SPRING1OUTER VALVE
€ 15.00
10
12007011
ref: 10
SPRING-INNER VALVE
€ 15.00
11
92049016
ref: 11
OIL SEAL,RV37129.5
€ 13.50
12
160071024
ref: 12
SEAT-SPRING,VALVE
€ 4.00
13
12005008
ref: 13
VALVE-EXHAUST
€ 57.50
14
120041011
ref: 14
VALVE-INTAKE
€ 40.50
