FUEL TANK
KZ650B1 1977 USA CANADA / MPH KPH

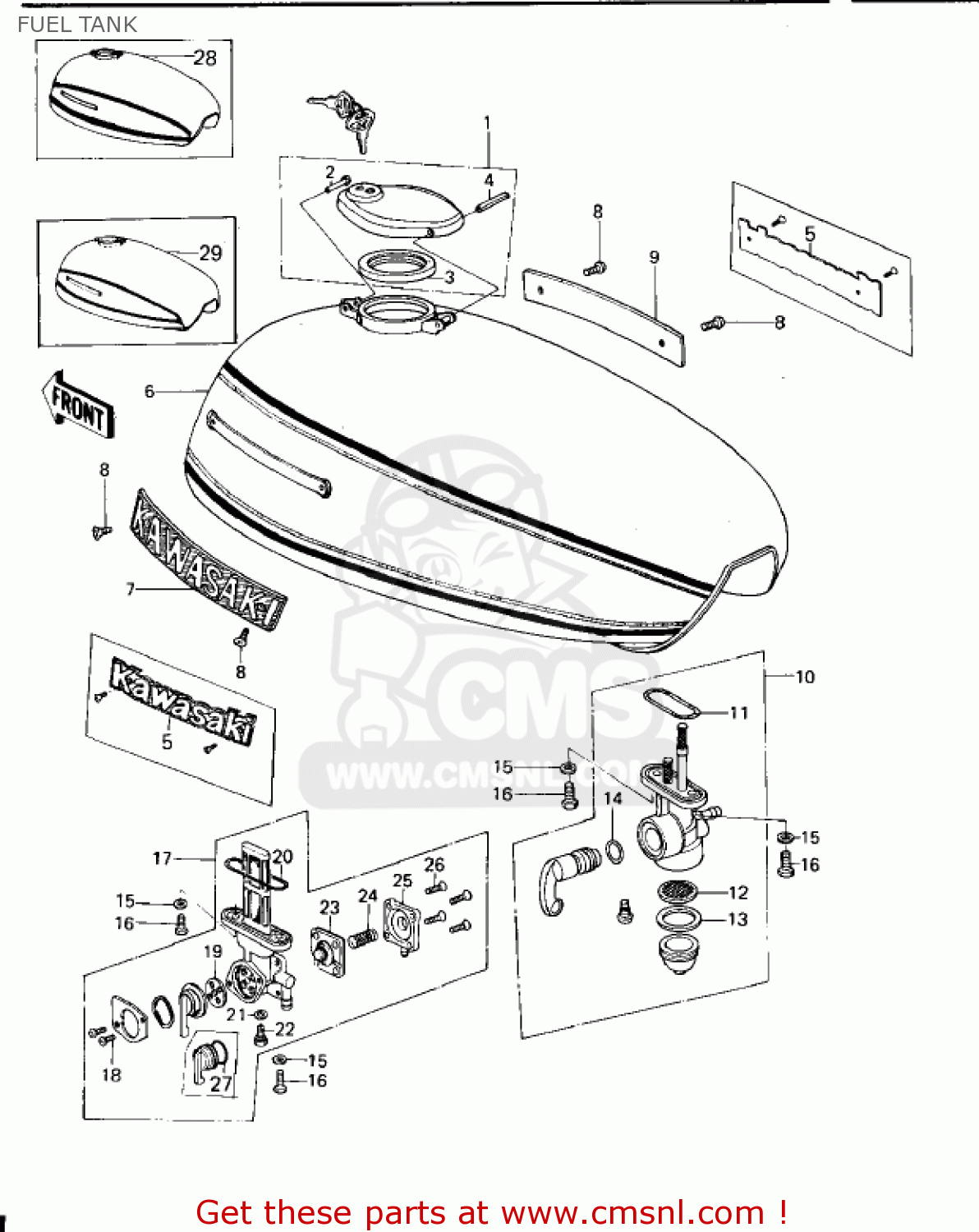

Fuel tank diagram KZ650B1 1977 USA CANADA / MPH KPH
FUEL TANK KZ650B1 1977 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
51048012
ref: 1
CAP-ASSY-TANK,FUEL
€ 72.00
2
92043126
ref: 2
PIN,3X27
€ 2.50
3
51059008
ref: 3
GASKET,FUEL TANK CAP (NAS)
€ 7.00
4
92043127
ref: 4
PIN,CAP HINGE
€ 3.00
5
560141037
ref: 5
KZ650-B3 ~
EMBLEM,FUEL TANK
€ 41.50
6
5100150323R
ref: 6
KZ650-B1
TANK,FUEL,C.SUPER RED
€ 695.00
6
5100150324U
ref: 6
KZ650-B1
TANK,FUEL,C.EME GREEN
€ 499.50
7
56013058
ref: 7
KZ650-B1/-B2/-B2A
EMBLEM,FUEL TANK,LH
€ 62.50
8
221C0306
ref: 8
SCREW-CSR-CROS
€ 0.50
9
56014065
ref: 9
KZ650-B1/-B2/-B2A
EMBLEM,FUEL TANK,R.H.
€ 62.50
10
51023057
ref: 10
KZ650-B1
TAP-ASSY,FUEL
€ 79.50
11
51039010
ref: 11
KZ650-B1
RING,TAP FLANGED
€ 4.50
12
51038007
ref: 12
KZ650-B1
FILTER,FUEL
€ 8.50
13
51037010
ref: 13
KZ650-B1
GASKET-FUEL COCK CUP (NAS)
€ 3.50
14
670B2010
ref: 14
KZ650-B1
O RING,10MM
€ 1.00
15
92022183
ref: 15
WASHER,6.2X11X1.5
€ 2.50
16
920011091
ref: 16
BOLT,6X20,FUEL TAP
€ 2.50
17
510231023
ref: 17
KZ605-B2 ~
TAP ASSY,FUEL
€ 115.00
18
220B0308
ref: 18
KZ605-B2 ~
SCREW-PAN-CROS
€ 0.50
19
110091194
ref: 19
KZ605-B2 ~
GASKET,TAP VALVE (NAS)
€ 6.50
20
51039010
ref: 20
KZ605-B2 ~
RING,TAP FLANGED
€ 4.50
21
110091045
ref: 21
KZ605-B2 ~
GASKET,DRAIN BOLT
€ 1.00
22
920011089
ref: 22
KZ605-B2 ~
BOLT,DRAIN
€ 8.00
23
430281004
ref: 23
KZ605-B2 ~
DIAPHRAGM ASSY,TAP
€ 4.50
23
430281015
ref: 23
KZ605-B2 ~ (FOR 5102
DIAPHRAGM,TAP
€ 14.50
24
920811055
ref: 24
KZ605-B2 ~
SPRING,TAP
€ 2.50
24
920811711
ref: 24
KZ605-B2 ~ (FOR 5102
UNAVAILABLE IN PRICE BOOK
€ 0.00
25
161461005
ref: 25
KZ605-B2 ~
COVER-ASSY,TAP DIAPHR
€ 14.00
26
221B0412A
ref: 26
KZ605-B2 ~
SCREW,CNTSNK HD,4X12
€ 2.00
27
920551027
ref: 27
FOR 51023-1013/-1023
RING-O,TAP LEVER
€ 3.50
28
5100150327Z
ref: 28
KZ650-B2/B2A
TANK,FUEL,L.DARK BLUE
€ 695.00
28
510015032A1
ref: 28
KZ650-B2/B2A
TANK,FUEL,L.BURNT RED
€ 610.00
28
510011158G
ref: 28
KZ650-B2/B2A
FUEL TANK,EBONY
€ 1,715.50
29
510011016A5
ref: 29
KZ650-B3
TANK,FUEL,C.P.RED
€ 433.50
29
5100110164U
ref: 29
KZ650-B3
TANK,FUEL,C.E.GREEN
€ 455.00
29
5100110168G
ref: 29
KZ650-B3
FUEL TANK,EBONY
€ 571.00
30
670B1504
ref: 30
FOR 51023-1023
O RING,4MM
€ 2.50
