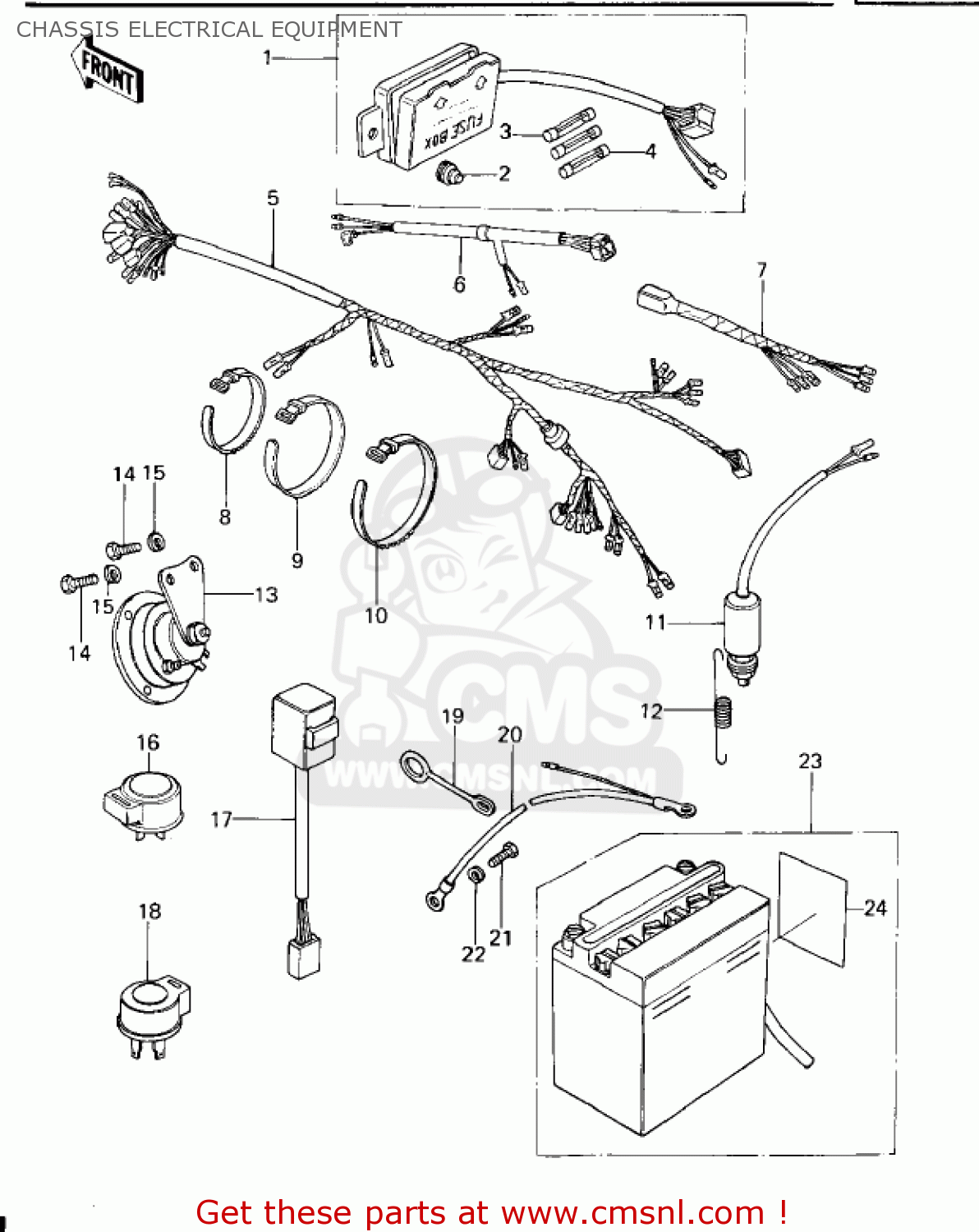

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

1

26004035
ref: 1
KZ650-B1

FUSE-ASSY

€ 53.50

1

260041002
ref: 1
KZ650-B2~

FUSE-ASSY

€ 55.00

2

92075279
ref: 2

DAMPER,FUSE

€ 3.50

3

26006005
ref: 3

FUSE 20A

€ 3.50

4

26006003
ref: 4

FUSE 10A

€ 3.00

5

26001143
ref: 5
KZ650-B1

WIRING HARNESS, MAIN

€ 290.50

5

260011025
ref: 5
KZ650-B2/B2A

HARNESS,MAIN

€ 270.50

5

260011131
ref: 5
KZ650-B3

HARNESS,MAIN

€ 100.50

6

260011022
ref: 6
KZ650-B2~

HARNESS,CENTER

€ 20.50

7

26002063
ref: 7

WIRING HARNESS, REAR

€ 20.00

8

92072030
ref: 8
KZ650-B1/B2/B2A

BAND,SHORT

€ 3.00

8

92072030
ref: 8
KZ650-B3

BAND,SHORT

€ 3.00

9

92072031
ref: 9

BAND,MIDDLE

€ 3.00

10

92072056
ref: 10

BAND,RUBBER

€ 3.00

11

27010017
ref: 11

SWITCH,BRAKE LAMP

€ 23.50

12

27011011
ref: 12
KZ650-B1/B2/B2A

SPRING,BRAKE LAMP SW

€ 5.50

12

27011009
ref: 12
KZ650-B3

SPRING-BRAKE LAMP SW

€ 4.50

13

27003076
ref: 13

HORN

€ 84.00

14

115G0816
ref: 14

BOLT-HEX,HEAD 8X16

€ 0.50

15

461F0800
ref: 15

WASHER-SPRING,8MM

€ 0.50

16

27002016
ref: 16

RELAY-ASSY,HAZARD

€ 26.50

17

28019001
ref: 17

SWITCH,OUTAGE INDICTR

€ 46.00

18

27002011
ref: 18

RELAY-ASSY,TURN SIGNA

€ 69.50

19

92037134
ref: 19

CLAMP,OVER FLOW PIPE

€ 7.50

20

26010049
ref: 20

WIRE-LEAD,BATTERY GRO

€ 15.50

21

92001137
ref: 21

BOLT,HEX HEAD,6M/M

€ 4.00

22

461F0600
ref: 22

WASHER-SPRING,6MM

€ 0.50

23

26012041
ref: 23

BATTERY, 12V 10AH

€ 75.00

23

260121010
ref: 23

BATTERY,12V 11AH

€ 75.00

24

560401036
ref: 24

WARNING, BATTERY

€ 2.00
