HEADLIGHT
KZ550H1 GPZ 1982 USA CANADA

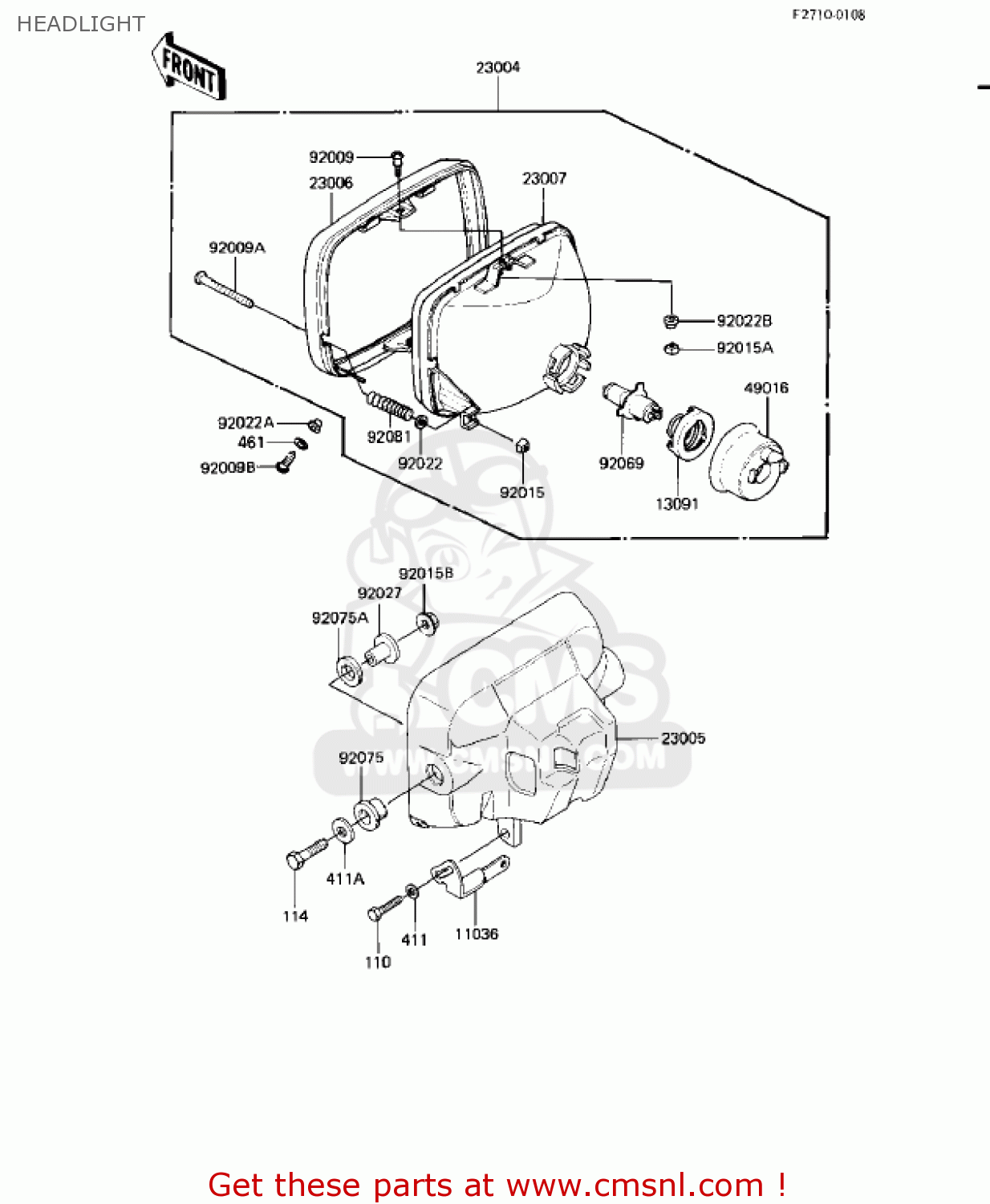

Headlight diagram KZ550H1 GPZ 1982 USA CANADA
HEADLIGHT KZ550H1 GPZ 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11036
110361358
ref: 11036
BRACKET-A
€ 7.50
13091
130911036
ref: 13091
HOLDER,HEAD LAMP SOCK
€ 12.50
23004
230041116
ref: 23004
HEADLAMP
€ 353.50
23005
2300510236Z
ref: 23005
BODY-COMP-HEAD LAMP,B
€ 120.00
23006
230061024
ref: 23006
RIM-LAMP,BLACK
€ 65.50
23007
230071041
ref: 23007
LENS-COMP,HEAD LAMP
€ 201.50
49016
490161023
ref: 49016
COVER-SEAL,HEAD LAMP
€ 11.50
92009
23019023
ref: 92009
SCREW-PAN HEAD,5X12
€ 3.50
92009A
920091047
ref: 92009A
SCREW,HEAD LAMP LENS
€ 3.00
92009B
92011024
ref: 92009B
SCREW-PAN HEAD,5MM
€ 2.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
23020023
ref: 92015A
NUT,5MM
€ 3.00
92015B
920151014
ref: 92015B
NUT,8MM
€ 0.50
92022
23021004
ref: 92022
WASHER,4.1X8X0.8
€ 2.00
92022A
23021010
ref: 92022A
WASHER
€ 2.50
92022B
23021012
ref: 92022B
WASHER
€ 3.00
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
110
112B0614
ref: 110
BOLT-UPSET 6X14
€ 2.50
114
115C0835
ref: 114
BOLT-SMALL-UPSET
€ 1.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
411A
411F0800
ref: 411A
WASHER-PLAIN,8MM,BLAC
€ 1.00
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
