CHASSIS ELECTRICAL EQUIPMENT
KZ550H1 GPZ 1982 USA CANADA

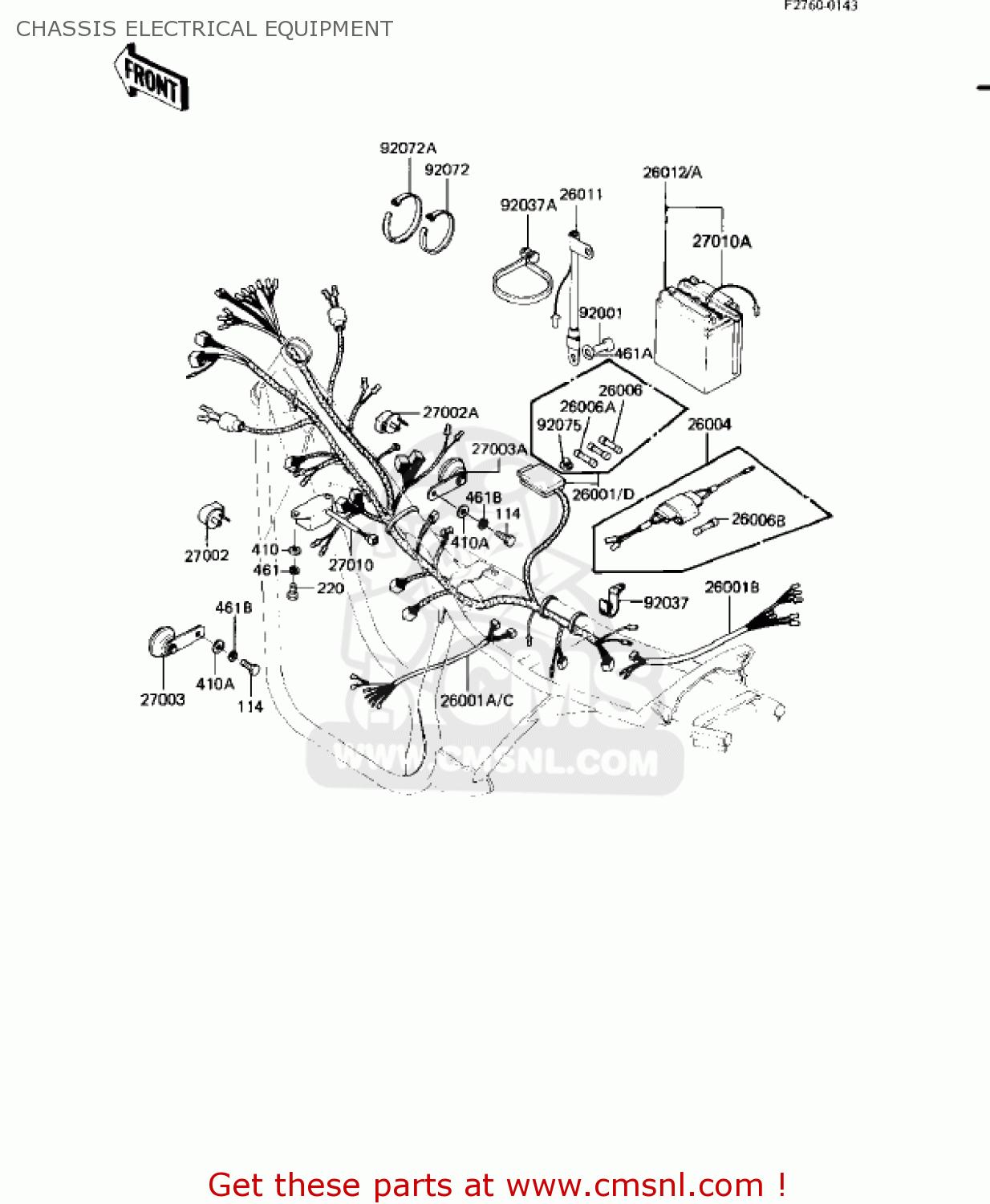

Chassis electrical equipment diagram KZ550H1 GPZ 1982 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KZ550H1 GPZ 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
26001
260011316
ref: 26001
HARNESS,MAIN
€ 159.00
26001A
260011317
ref: 26001A
HARNESS,SUB
€ 18.50
26001B
260011318
ref: 26001B
HARNESS,RR
€ 29.00
26001C
260011396
ref: 26001C
HARNESS,SUB
€ 30.00
26001D
260011413
ref: 26001D
HARNESS,MAIN
€ 154.00
26004
260041014
ref: 26004
FUSE-ASSY,ACCESSORY
€ 47.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
26006005
ref: 26006A
FUSE 20A
€ 3.50
26006B
260061002
ref: 26006B
FUSE,10A,L=30M/M
€ 3.00
26011
260111136
ref: 26011
WIRE-LEAD,BETTERY GRO
€ 13.00
26012
260121050
ref: 26012
US
BATTERY,12V/12AH FB12
€ 79.00
26012A
260121051
ref: 26012A
CN
BATTERY,12V 12AH FB12
€ 79.00
27002
27002011
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 69.50
27002A
27002016
ref: 27002A
RELAY-ASSY,HAZARD
€ 26.50
27003
270031057
ref: 27003
HORN,LH
€ 62.00
27003A
270031058
ref: 27003A
HORN,RH
€ 32.50
27010
270101066
ref: 27010
SWITCH,RESERV LIGHTIN
€ 149.00
27010A
270101177
ref: 27010A
SWITCH,BATTERY,L=200
€ 32.50
92001
920011699
ref: 92001
BOLT,6X10,BLACK
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
€ 4.50
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92075
92075279
ref: 92075
DAMPER,FUSE
€ 3.50
114
114C0814
ref: 114
BOLT-SMALL,8X14
€ 1.50
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
410A
920221554
ref: 410A
WASHER,PLAIN,8MM
€ 3.00
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461K0600
ref: 461A
WASHER-SPRING
€ 0.50
461B
461K0800
ref: 461B
WASHER-SPRING,8MM,BLA
€ 1.50
