IGNITION SWITCH/LOCKS/REFLECTORS
KZ550A2 1981 USA CANADA

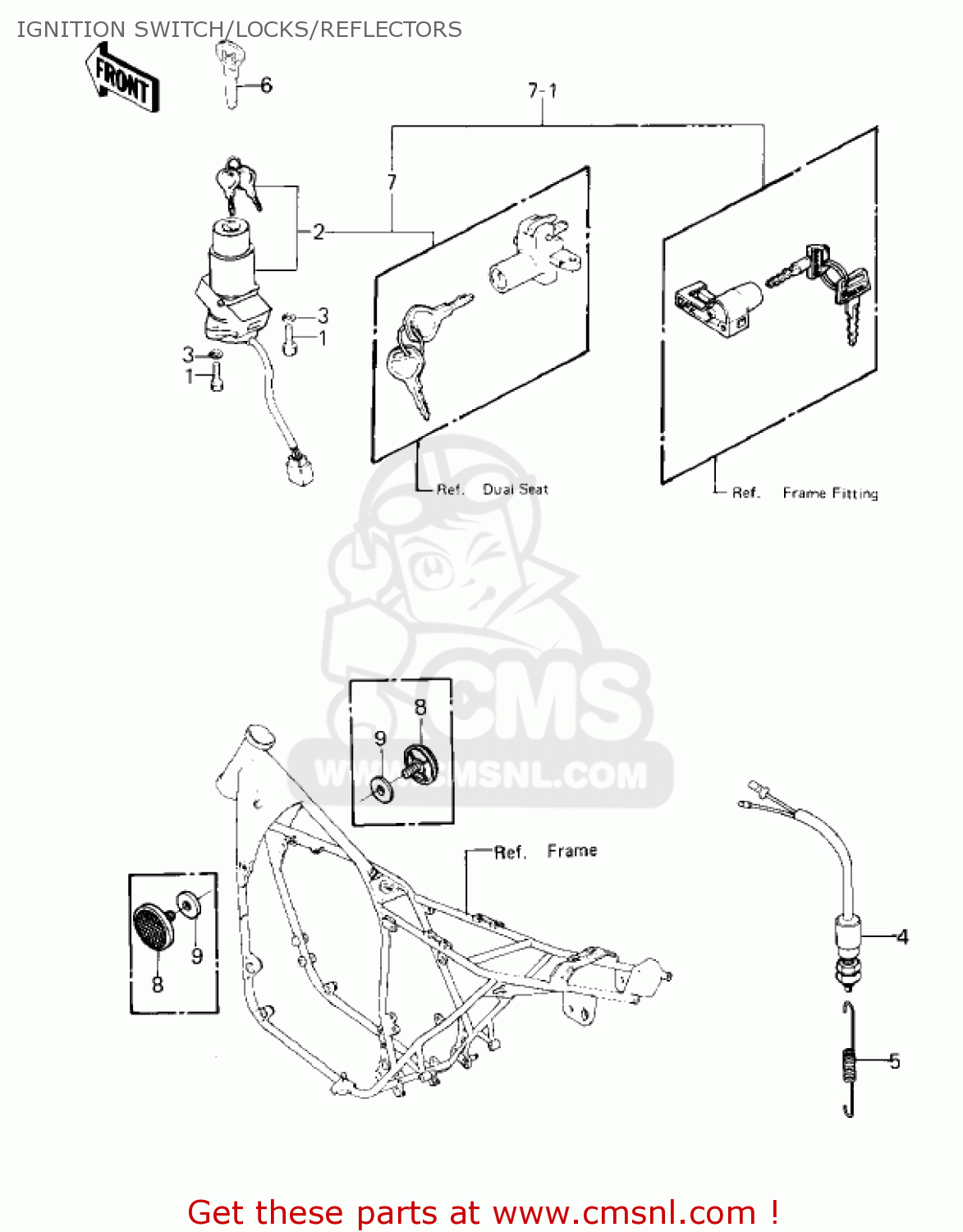

Ignition switch/locks/reflectors diagram KZ550A2 1981 USA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS KZ550A2 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
120Q0616
ref: 1
BOLT,SOCKET,6X16
€ 4.50
2
270055014
ref: 2
SWITCH ASSY,IGNITION
€ 224.00
3
461F0600
ref: 3
WASHER-SPRING,6MM
€ 0.50
4
27010017
ref: 4
SWITCH,BRAKE LAMP
€ 23.50
5
920811146
ref: 5
SPRING,BRAKE LAMP SWI
€ 3.00
6
270081103
ref: 6
KEY-LOCK,BLANK
€ 13.50
7
270045016
ref: 7
KZ550-A1
LOCK ASSY,Z500-B1
€ 317.50
7-1
270045099
ref: 7-1
KZ550-A2
LOCK ASSY,Z550-C2
€ 375.50
8
28012016
ref: 8
REFLECTOR REFLEX
€ 16.00
9
92094011
ref: 9
DAMPER,REFLECTOR
€ 3.00
