FRONT FORK (KZ550-A1)
KZ550A2 1981 USA CANADA

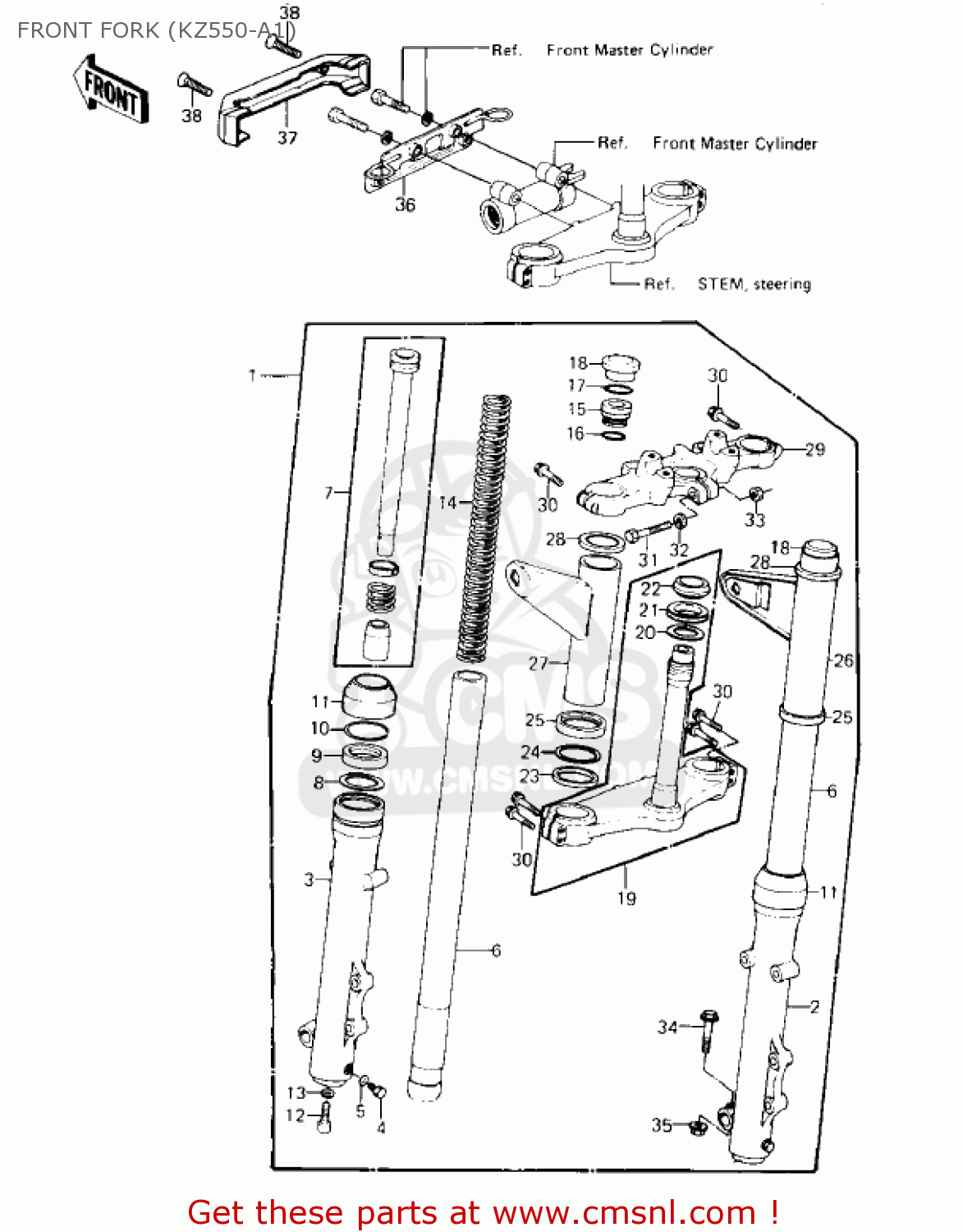

Front fork (kz550-a1) diagram KZ550A2 1981 USA CANADA
FRONT FORK (KZ550-A1) KZ550A2 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
440011202
ref: 1
FORK-FRONT
€ 1,357.50
2
440061018
ref: 2
TUBE,R.H,FORK OUTER
€ 223.00
3
440051018
ref: 3
TUBE,L.H,FORK OUTER
€ 200.00
4
110B0608
ref: 4
BOLT-HEX HEAD,6X8
€ 0.50
5
44045047
ref: 5
GASKET,DRAIN PLUG (NAS)
€ 6.00
6
440131023
ref: 6
PIPE-FORK INNER
€ 175.00
7
440221024
ref: 7
CYLINDER,FORK
€ 87.50
8
920261038
ref: 8
SPACER,FORK
€ 6.50
9
920491063
ref: 9
USE FOR 44001-1046
SEAL-OIL,FORK
€ 14.50
9
920491063
ref: 9
USE FOR 44001-1202
SEAL-OIL,FORK
€ 14.50
10
920331022
ref: 10
RING,OIL SEAL STOPPER
€ 4.00
11
920931047
ref: 11
USE FOR 44001-1046
SEAL,DUST
€ 29.50
11
920931047
ref: 11
USE FOR 44001-1202
SEAL,DUST
€ 29.50
12
44041078
ref: 12
BOLT, FORK CYLINDER
€ 6.50
13
44045051
ref: 13
GASKET,FORK CYLINDER (NAS)
€ 4.00
14
440261022
ref: 14
SPRING FORK INNER
€ 50.00
15
440291006
ref: 15
SEAT-FORK SPRING
€ 9.50
16
920551034
ref: 16
RING-O
€ 5.00
17
920331023
ref: 17
CIRCLIP
€ 3.00
18
110121061
ref: 18
CAP,RUBBER,FORK TOP
€ 9.50
19
440371013
ref: 19
HOLDER-FORK UNDER
€ 459.50
20
92022231
ref: 20
WASHER,PLAIN
€ 3.00
21
92056003
ref: 21
OIL SEAL,STEERING STM
€ 6.00
22
92047012
ref: 22
CONE-STRNG STM BRNG
€ 14.50
23
920751137
ref: 23
DAMPER,FORK COVER
€ 5.50
24
920221111
ref: 24
WASHER,FORK COVER
€ 7.50
25
131691134
ref: 25
PLATE,FORK COVER,LOWE
€ 8.00
26
440331059
ref: 26
USE FOR 44001-1046
COVER-FORK,RH
€ 124.50
26
440331059
ref: 26
USE FOR 44001-1202
COVER-FORK,RH
€ 124.50
27
440331058
ref: 27
USE FOR 44001-1046
COVER-FORK,LH
€ 118.50
27
440331058
ref: 27
USE FOR 44001-1202
COVER-FORK,LH
€ 118.50
28
131691135
ref: 28
PLATE,FORK COVER,UPPE
€ 6.00
29
440391011
ref: 29
HOLDER-FORK UPPER
€ 232.50
30
920011149
ref: 30
BOLT,8X40
€ 7.50
31
920011064
ref: 31
BOLT,HEX HEAD,8X55
€ 6.00
32
461F0800
ref: 32
WASHER-SPRING,8MM
€ 0.50
33
920151124
ref: 33
NUT,LOCK,8MM
€ 3.50
34
920011136
ref: 34
BOLT,8X45
€ 7.00
35
920151055
ref: 35
NUT,8M/M
€ 3.00
36
110341790
ref: 36
BRACKET,FORK COVER
€ 30.00
37
440331053
ref: 37
COVER-FORK
€ 36.00
38
222C0518
ref: 38
SCREW-CSK-RD-CROS
€ 2.50
