FENDERS

KZ1100A3 SHAFT 1983 USA CANADA

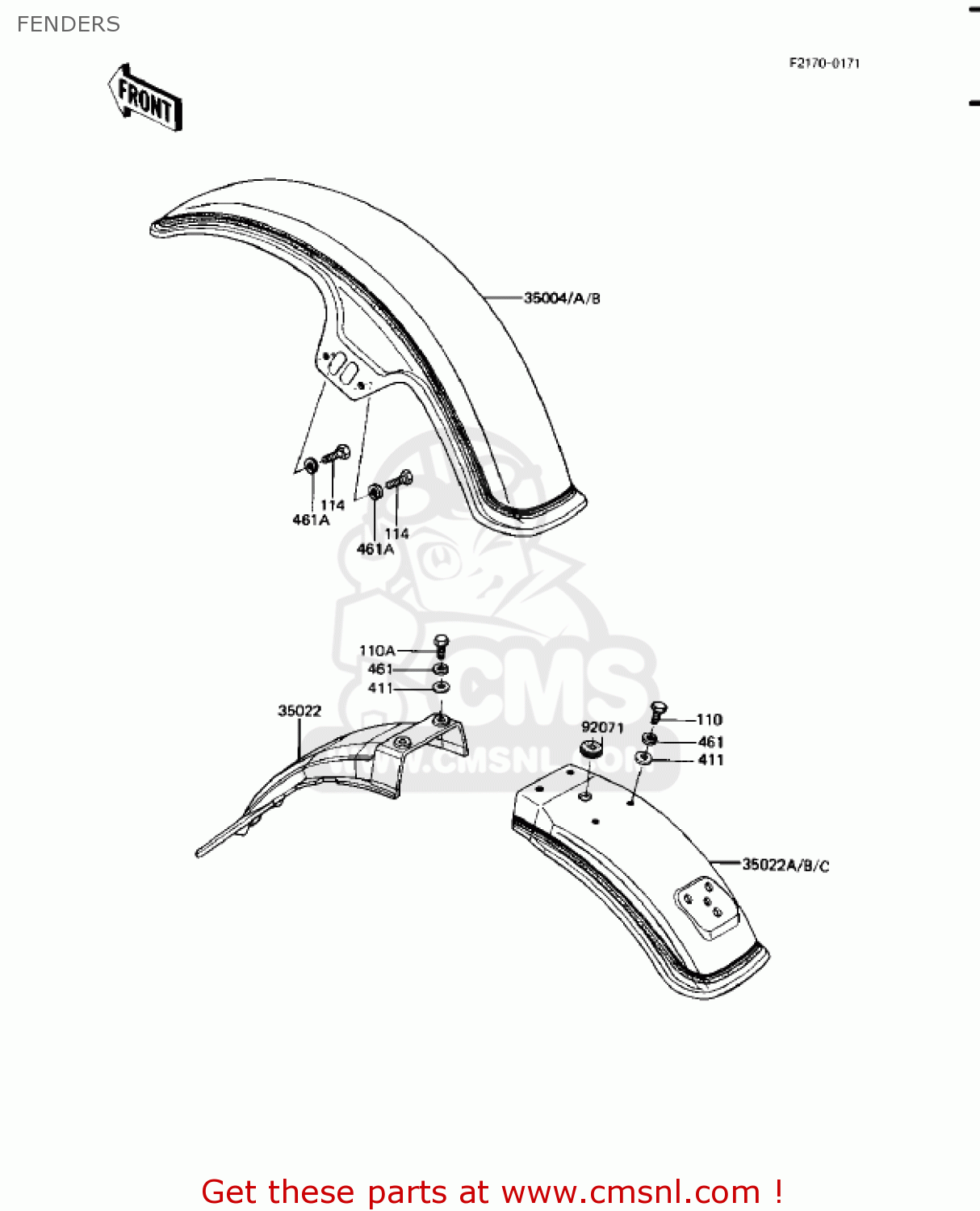

Fenders diagram KZ1100A3 SHAFT 1983 USA CANADA

FENDERS KZ1100A3 SHAFT 1983 USA CANADA

FENDERS KZ1100A3 SHAFT 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

35004

350041060A8
ref: 35004

FENDER-FRONT,L.N.BLUE

€ 136.00

35004A

350045009D9
ref: 35004A

FRONT FENDER,LUMINOUS PASSION RED

€ 138.00

35004B

350045021H8
ref: 35004B

FENDER-FRONT,EBONY

€ 62.00

35022

350221079
ref: 35022

FENDER-COMP-REAR,FR

€ 56.50

35022A

350221080A8
ref: 35022A

REAR FENDER,LUMINOUS NAVY BLUE

€ 124.50

35022B

350225008D9
ref: 35022B

REAR FENDER,LUMINOUS PASSION RED

€ 121.50

35022C

350225012H8
ref: 35022C

REAR FENDER,COMPLETE,REAR,EBONY

€ 118.50

92071

92071099
ref: 92071

GROMMET, REAR FENDER

€ 3.00

110

112B0614
ref: 110

BOLT-UPSET 6X14

€ 2.50

110A

112G0618
ref: 110A

BOLT-UPSET

€ 0.50

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50
