CYLINDER/PISTONS

KZ1100A3 SHAFT 1983 USA CANADA

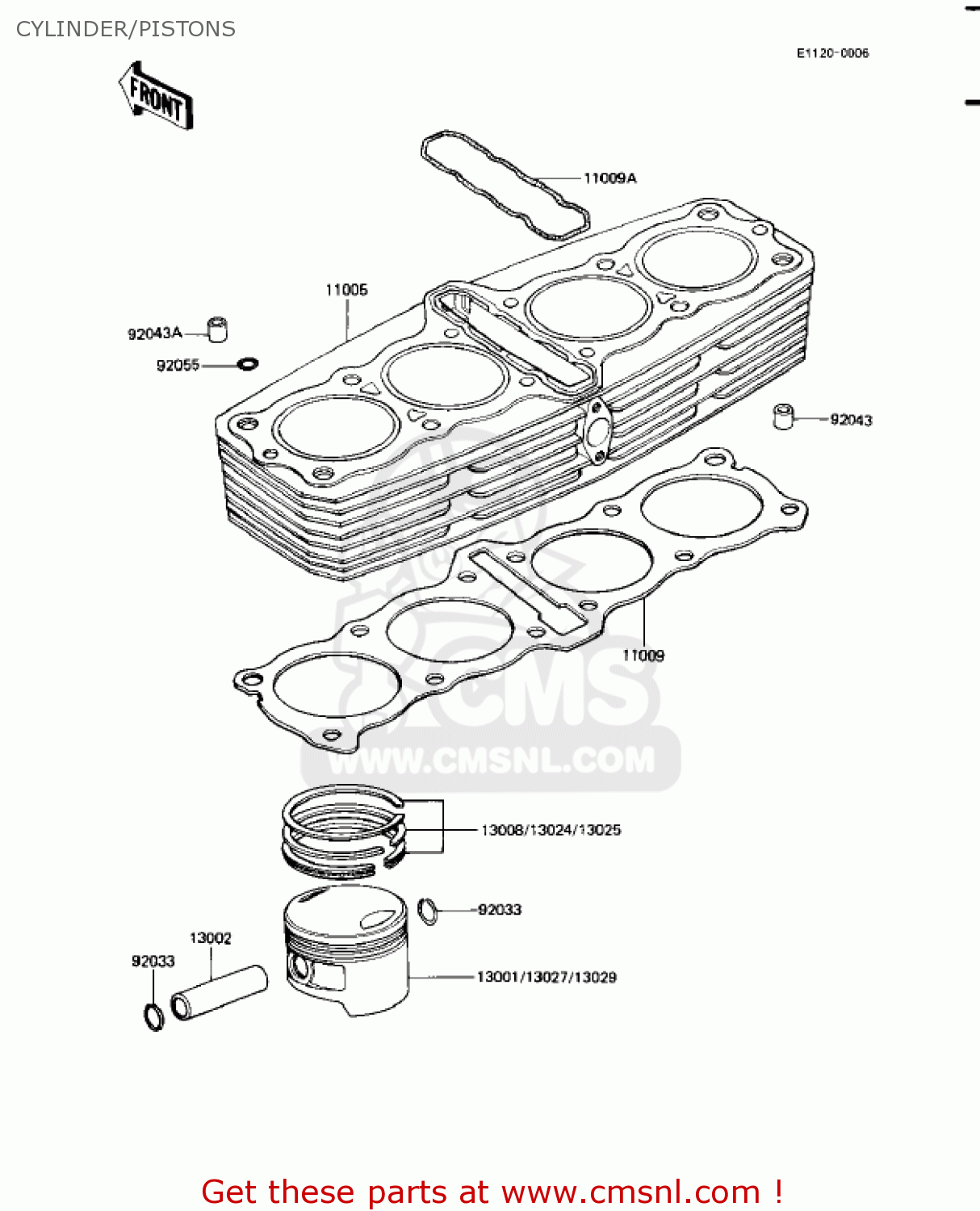

Cylinder/pistons diagram KZ1100A3 SHAFT 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11005

110051321
ref: 11005

CYLINDER-ENGINE,SILVE

€ 931.50

11009

110601067
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 23.00

11009A

110091208
ref: 11009A

GASKET,CYLINDER (NAS)

€ 61.50

13001

130011118
ref: 13001

PISTON-ENGINE,STD

€ 64.00

13002

130021013
ref: 13002

PIN-PISTON

€ 5.00

13008

130085037
ref: 13008

RING-SET-PISTON,STD

€ 69.00

13024

130245023
ref: 13024

RING-SET-PISTON LL,O/

€ 61.50

13025

130255019
ref: 13025

RING-SET-PISTON L,O/S

€ 111.50

13027

130271055
ref: 13027

PISTON-ENGINE LL,O/S

€ 76.00

13029

130291057
ref: 13029

PISTON-ENGINE L,O/S 0

€ 72.00

92033

920331054
ref: 92033

CIRCLIP,PISTON PIN

€ 2.00

92043

920431266
ref: 92043

PIN,11X14X12.3

€ 1.00

92043A

920431037
ref: 92043A

PIN,DOWEL,10X8.2X14

€ 0.50

92055

920551148
ref: 92055

RING-O,OD=18.5MM

€ 9.50
