SEAT

KZ1100A1 SHAFT 1981 USA CANADA

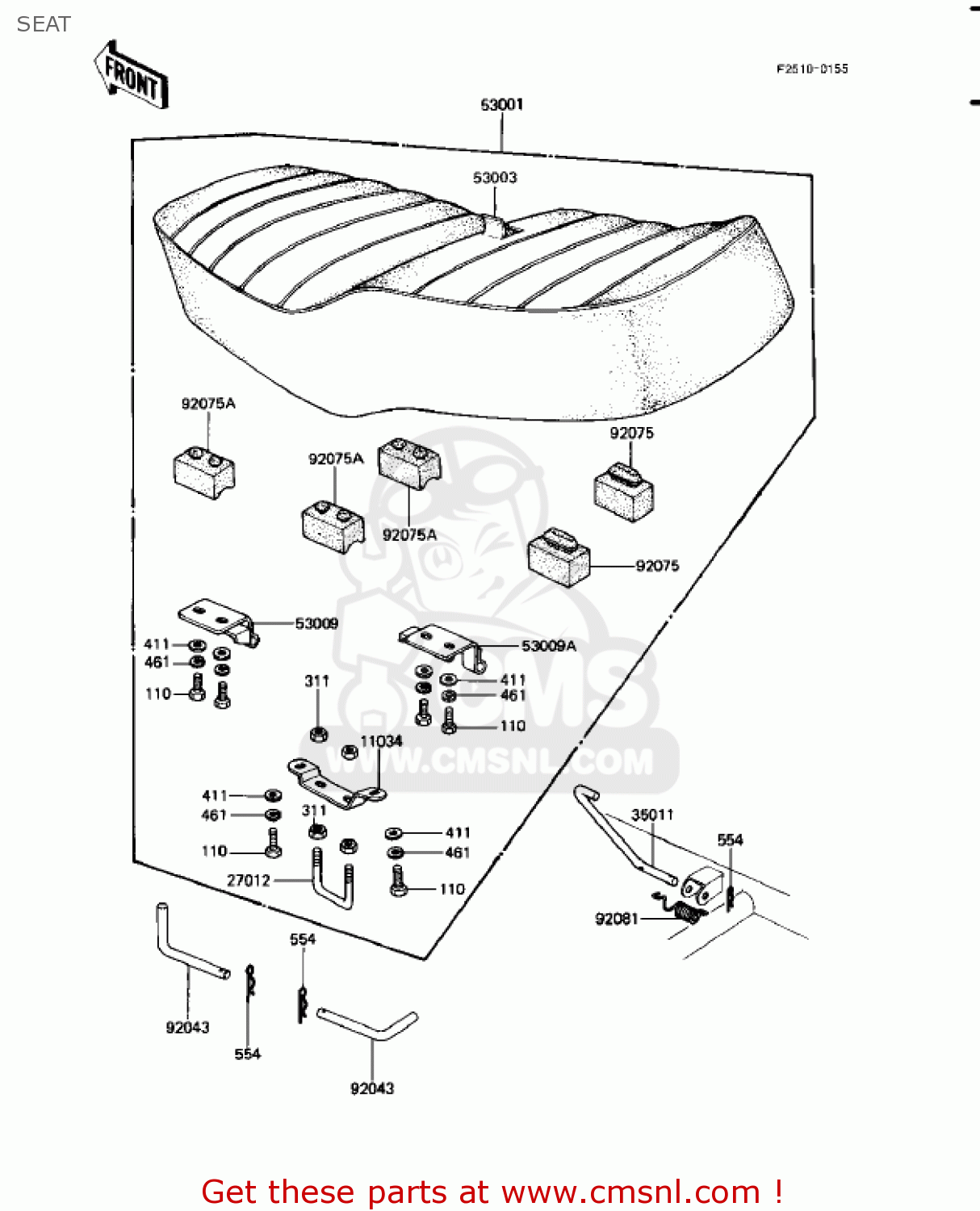

Seat diagram KZ1100A1 SHAFT 1981 USA CANADA

SEAT KZ1100A1 SHAFT 1981 USA CANADA

SEAT KZ1100A1 SHAFT 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

11034

110341329
ref: 11034

BRACKET,SEAT CATCH

€ 9.00

27012

53056002
ref: 27012

HOOK,SEAT

€ 11.50

35011

350111034
ref: 35011

STAY,SEAT STAND

€ 5.50

53001

530011104
ref: 53001

SEAT-ASSY

€ 469.50

53003

530031025
ref: 53003

LEATHER,SEAT

€ 168.00

53009

530091010
ref: 53009

HINGE,SEAT

€ 9.50

53009A

530091021
ref: 53009A

HINGE,SEAT,RR

€ 9.50

92043

920431021
ref: 92043

PIN,SEAT PIVOT

€ 3.00

92075

92075099
ref: 92075

DAMPER RUBBER

€ 3.50

92075A

92075139
ref: 92075A

DAMPER,SEAT

€ 7.00

92081

920811053
ref: 92081

SPRING,SEAT HOOK

€ 8.50

110

112G0616
ref: 110

BOLT UPSET,6X16

€ 1.00

311

311B0600
ref: 311

NUT,6MM

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

554

554A0600
ref: 554

PIN-SNAP,SIDE STAND

€ 0.50
