CHASSIS ELECTRICAL EQUIPMENT
KZ1100A1 SHAFT 1981 USA CANADA

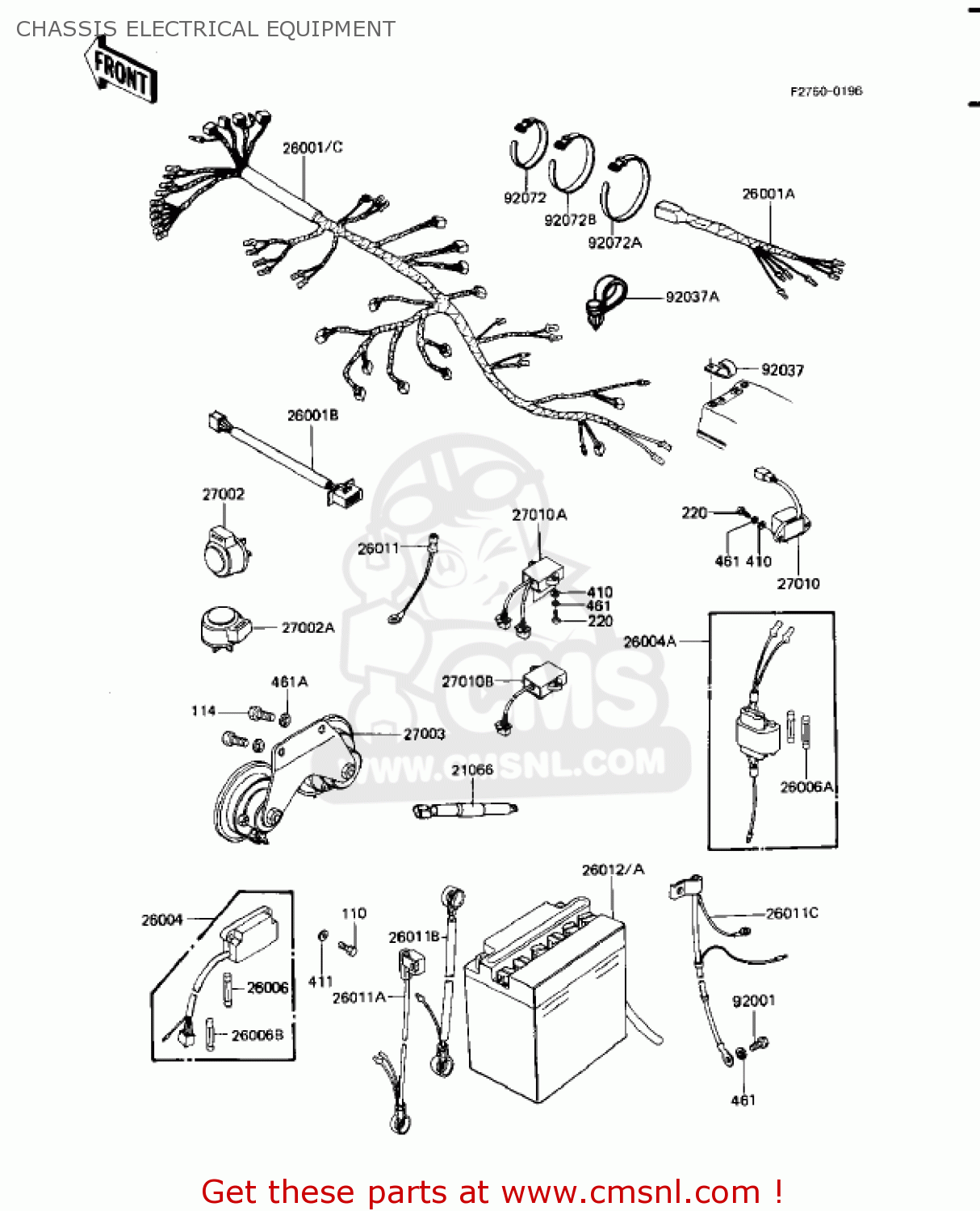

Chassis electrical equipment diagram KZ1100A1 SHAFT 1981 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KZ1100A1 SHAFT 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
21066
21066026
ref: 21066
REGULATOR-VOLTAGE
€ 13.00
26001
260011239
ref: 26001
HARNESS,MAIN
€ 190.00
26001A
260011242
ref: 26001A
HARNESS,REAR
€ 20.00
26001B
260011248
ref: 26001B
RESERVE LIGHT HARNESS
€ 11.50
26001C
260011466
ref: 26001C
HARNESS,MAIN
€ 158.50
26004
260041011
ref: 26004
FUSE-ASSY
€ 72.00
26004A
260041014
ref: 26004A
FUSE-ASSY,ACCESSORY
€ 47.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
260061002
ref: 26006A
FUSE,10A,L=30M/M
€ 3.00
26006B
260061005
ref: 26006B
FUSE,30A,L=25M/M
€ 3.00
26011
260111100
ref: 26011
WIRE-LEAD,ACCESSORY G
€ 7.00
26011A
260111118
ref: 26011A
WIRE-LEAD,BATTERY,(+)
€ 28.50
26011B
260111120
ref: 26011B
WIRE-LEAD,BATTERY,(+)
€ 28.50
26011C
260111124
ref: 26011C
WIRE-LEAD,BATTERY,(-)
€ 28.50
26012
260121039
ref: 26012
US
BATTERY,12V18AH,YB18L
€ 115.50
26012A
260121040
ref: 26012A
CN
BATTERY,12V18AH,YB18L
€ 115.50
27002
27002011
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 69.50
27002A
27002016
ref: 27002A
RELAY-ASSY,HAZARD
€ 26.50
27003
270031304
ref: 27003
HORN
€ 106.00
27010
270101024
ref: 27010
SWITCH,RESERV LIGHTIN
€ 149.00
27010A
270101048
ref: 27010A
SWITCH,TURN SIGNAL OP
€ 156.00
27010B
270101079
ref: 27010B
SWITCH,TURN SIGNAL OP
€ 112.00
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
€ 4.50
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
110
112B0622
ref: 110
BOLT, 6X22
€ 2.50
114
115G0816
ref: 114
BOLT-HEX,HEAD 8X16
€ 0.50
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
