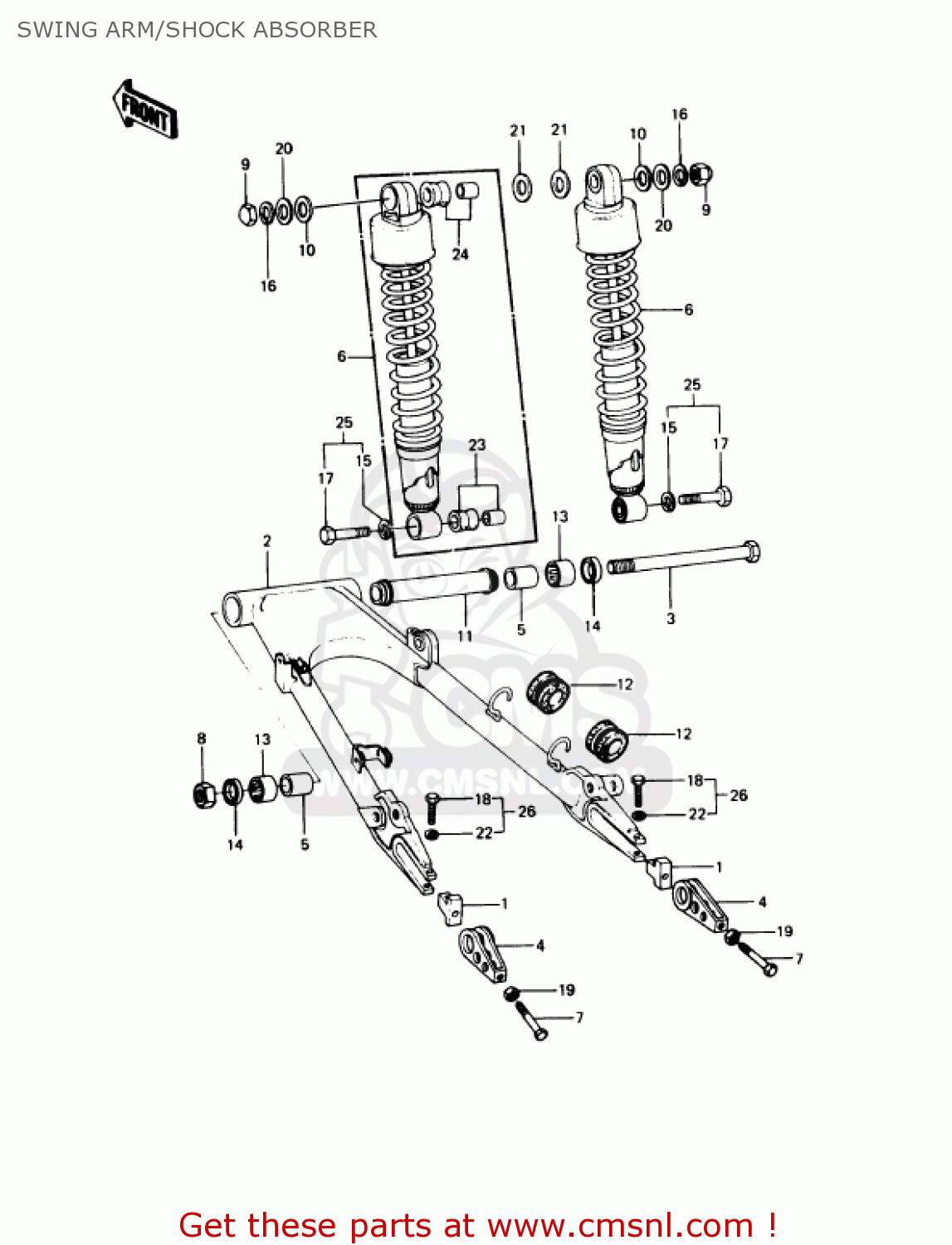

SWING ARM/SHOCK ABSORBER

ref

part #

description

quantity

10

920221239
ref: 10

WASHER,12.4X28X2.3

€ 3.00

11

920271561
ref: 11

COLLAR,SWING ARM

€ 50.00

12

43064007
ref: 12

43064007

13

920461035
ref: 13

920461035

14

920491060
ref: 14

920491060

15

461F1000
ref: 15

WASHER-SPRING,10MM

€ 0.50

16

461F1200
ref: 16

WASHER-SPRING,12MM

€ 0.50

17

113N1035
ref: 17

BOLT-HEX HEAD,10X35

€ 6.00

18

114G0840
ref: 18

114G0840

19

315B1000
ref: 19

NUT,10MM

€ 0.50

20

410B1200
ref: 20

WASHER-PLAIN-SMALL,12

€ 0.50

21

410B1400
ref: 21

410B1400

22

461F0800
ref: 22

WASHER-SPRING,8MM

€ 0.50

23

45017019
ref: 23

DAMPER,SHOCKABSORBER,

€ 13.00

24

920751141
ref: 24

BUSHING,SHOCK ABSORBE

€ 10.00

25

160N1035
ref: 25

BOLT-FINE-WS

€ 3.50

26

183G0840
ref: 26

BOLT-UPSET-WS-SMALL

€ 3.50

1

33044001
ref: 1

STOPPER,CHAIN ADJUSTE

€ 23.50

2

330014006
ref: 2

SWING ARM,COMPLETE

€ 296.00

3

33032036
ref: 3

SHAFT-SWING ARM

€ 41.00

4

33040066
ref: 4

ADJUSTER-CHAIN

€ 20.50

5

420361040
ref: 5

SLEEVE,SWING ARM

€ 19.00

6

450141174
ref: 6

SHOCK ABSORBER,REAR

€ 1,041.00

7

92001143
ref: 7

BOLT,CHAIN ADJUSTER

€ 13.50

8

92019012
ref: 8

NUT,LOCK,16MM

€ 11.00

9

92020014
ref: 9

NUT,CAP,12MM

€ 6.50
