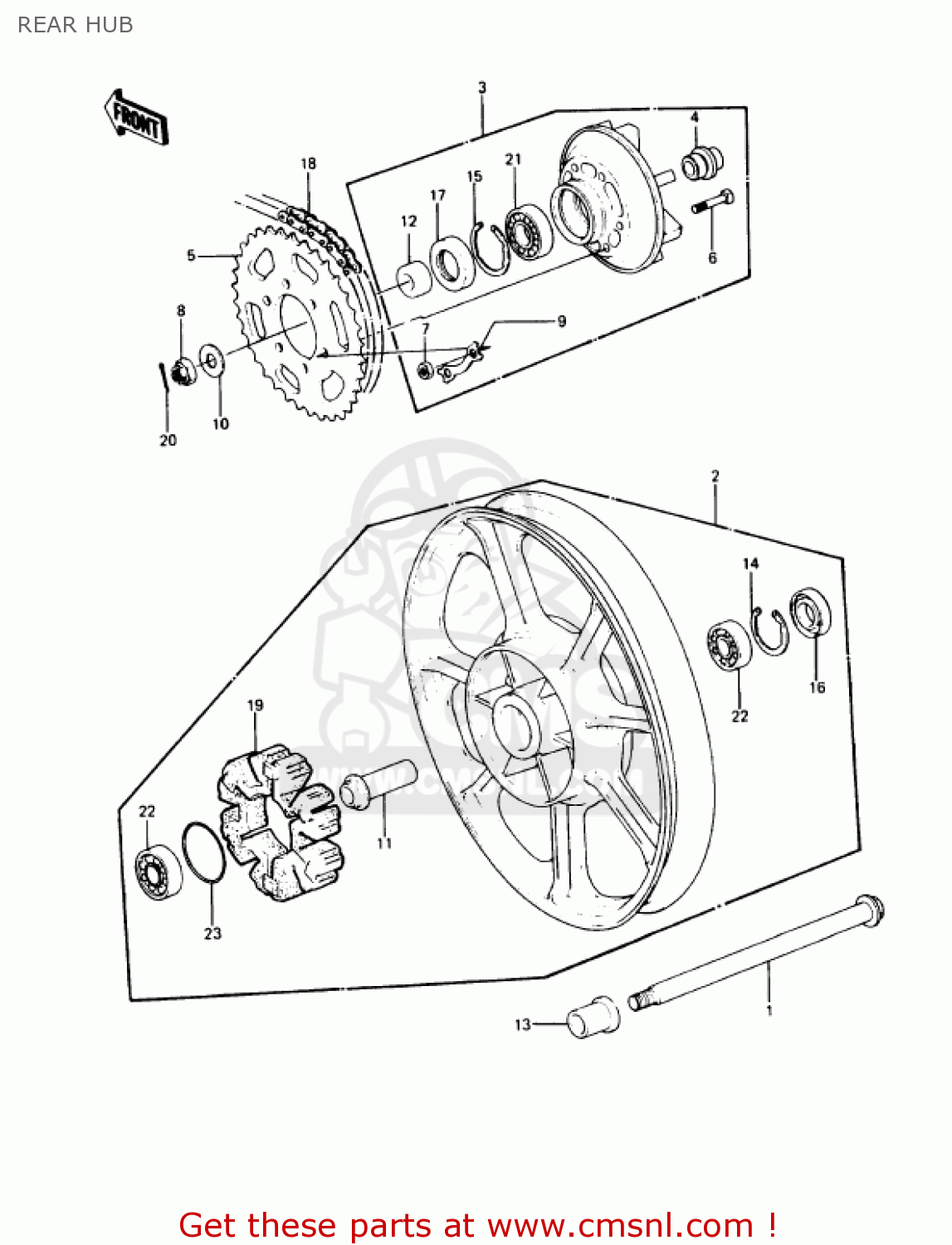

REAR HUB

ref

part #

description

quantity

10

92022248
ref: 10

WASHER,20.3X34X4.5

€ 7.50

11

920271286
ref: 11

COLLAR,L=89.5

€ 24.00

12

920271287
ref: 12

COLLAR,20X40X16.5

€ 20.50

13

920271288
ref: 13

COLLAR,L=31

€ 24.50

14

920331043
ref: 14

RING,SNAP,56.2M/M

€ 6.00

15

920331044
ref: 15

CIRCLIP 62 M/M

€ 7.50

16

920491061
ref: 16

SEAL-OIL,28X52X5

€ 13.00

17

92050027
ref: 17

OIL SEAL

€ 13.50

18

920571067
ref: 18

CHAIN,DRIVE, EK630SD0

€ 431.50

19

42014033
ref: 19

DAMPER,RR HUB SHOCK,1

€ 85.50

20

550D4035
ref: 20

PIN-COTTER,4.0X35

€ 1.00

21

601B6206
ref: 21

BEARING-BALL,#6206C3

€ 19.50

22

601B6304ZZ
ref: 22

BEARING-BALL,#6304ZZC

€ 36.00

23

671B2565
ref: 23

O RING,65MM

€ 6.00

1

410681087
ref: 1

AXLE,RR,L=300

€ 75.00

2

41073114121
ref: 2

WHEEL-ASSY,RR,SOLID,F

€ 725.50

3

420331024
ref: 3

COUPLING-ASSY,RR HUB

€ 274.00

4

420361039
ref: 4

SLEEVE,L=33

€ 29.00

5

420411058
ref: 5

SPROCKET-HUB,41T

€ 65.00

6

92001161
ref: 6

BOLT,10X41

€ 3.00

7

42045005
ref: 7

NUT,10MM

€ 5.00

8

42045018
ref: 8

NUT,18MM

€ 7.50

9

920221212
ref: 9

WASHER,LOCK

€ 4.00
