CHASSIS ELECTRICAL EQUIPMENT
KZ1000P4 POLICE 1000 1985 USA

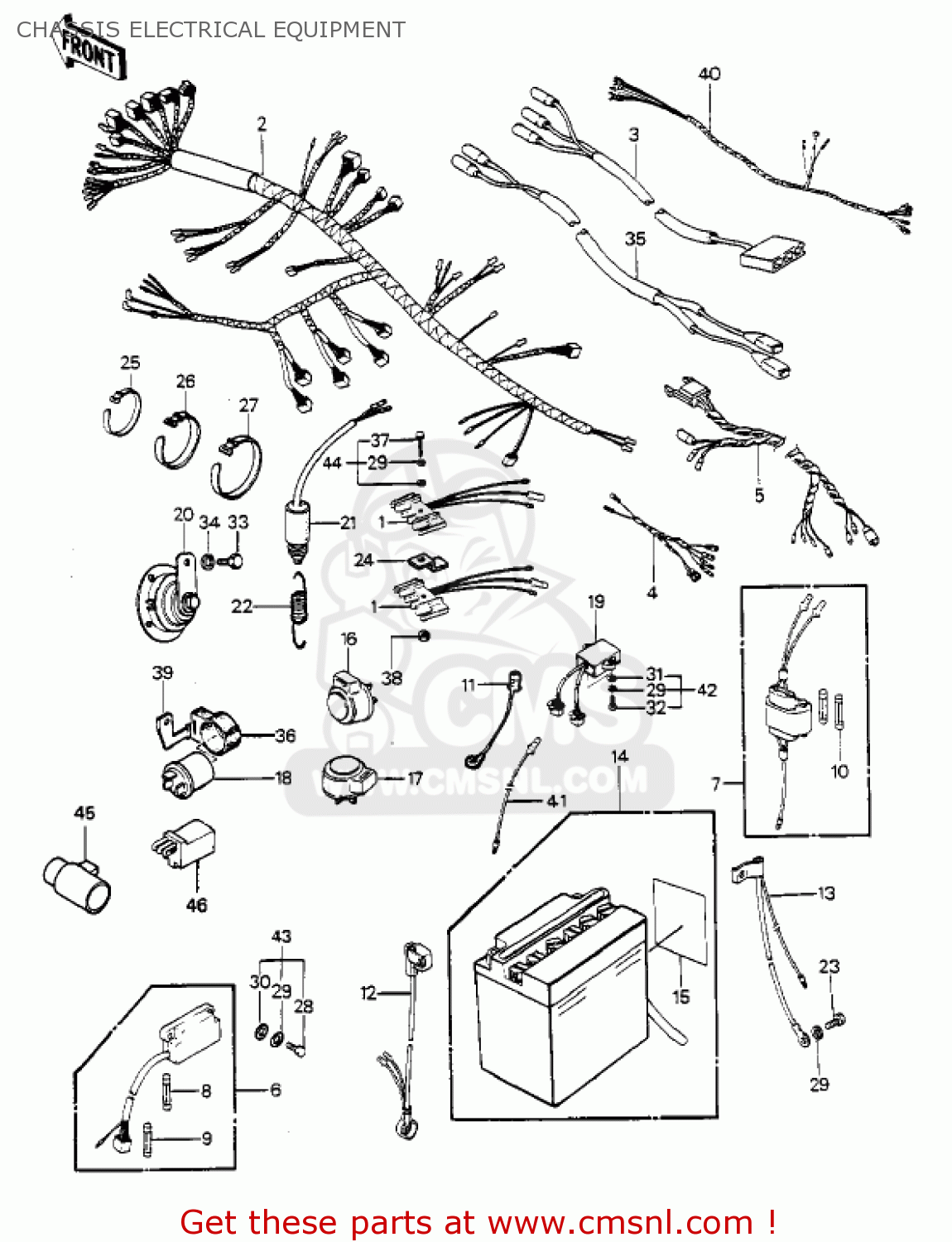

Chassis electrical equipment diagram KZ1000P4 POLICE 1000 1985 USA
CHASSIS ELECTRICAL EQUIPMENT KZ1000P4 POLICE 1000 1985 USA
×
prices are in EUR
ref
part #
description
quantity
1
21066024
ref: 1
REGULATOR
€ 33.00
2
260011341
ref: 2
KZ1000-P1
HARNESS,MAIN
€ 178.50
2
260014025
ref: 2
KZ1000-P1/P2
HARNESS, MAIN
€ 147.00
2
260014025
ref: 2
KZ1000-P3/P4/P5
HARNESS, MAIN
€ 147.00
3
260011343
ref: 3
TAIL HARNESS
€ 18.00
4
260011013
ref: 4
TAIL LAMP WIRING HARNESS
€ 16.50
5
260011342
ref: 5
-F/NO. 500901
FAIRING HARNESS
€ 48.00
5
260014020
ref: 5
F/NO. 500902-
FAIRING HARNESS
€ 45.00
6
260041011
ref: 6
FUSE-ASSY
€ 72.00
7
260041014
ref: 7
FUSE-ASSY,ACCESSORY
€ 47.00
8
26006003
ref: 8
FUSE 10A
€ 3.00
9
260061005
ref: 9
FUSE,30A,L=25M/M
€ 3.00
10
260061002
ref: 10
FUSE,10A,L=30M/M
€ 3.00
11
260111100
ref: 11
WIRE-LEAD,ACCESSORY G
€ 7.00
12
260111118
ref: 12
WIRE-LEAD,BATTERY,(+)
€ 28.50
13
260111124
ref: 13
WIRE-LEAD,BATTERY,(-)
€ 28.50
14
260121039
ref: 14
YB18L-A
BATTERY,12V18AH,YB18L
€ 115.50
15
560401036
ref: 15
KZ1000-P1/P2
WARNING, BATTERY
€ 2.00
15
560401036
ref: 15
KZ1000-P3/P4/P5
WARNING, BATTERY
€ 2.00
16
27002011
ref: 16
RELAY-ASSY,TURN SIGNA
€ 69.50
17
27002016
ref: 17
RELAY-ASSY,HAZARD
€ 26.50
18
270341001
ref: 18
ALTERNATING FLASH RELAY,OPTIONAL
€ 75.00
19
270101048
ref: 19
SWITCH,TURN SIGNAL OP
€ 156.00
20
270031047
ref: 20
HORN
€ 47.50
21
270101019
ref: 21
SWITCH,REAR BRAKE
€ 23.00
22
920811366
ref: 22
SPRING,BRAKE SWITCH
€ 4.50
23
92001137
ref: 23
BOLT,HEX HEAD,6M/M
€ 4.00
24
110344163
ref: 24
HAZARD REGULATOR BRACKET
€ 4.00
25
92072031
ref: 25
BAND,MIDDLE
€ 3.00
26
92072056
ref: 26
BAND,RUBBER
€ 3.00
27
92072032
ref: 27
BAND,LONG
€ 3.00
28
112B0622
ref: 28
KZ1000-P1/P2/P3
BOLT, 6X22
€ 2.50
29
461F0600
ref: 29
KZ1000-P1/P2/P3
WASHER-SPRING,6MM
€ 0.50
29
461F0600
ref: 29
KZ1000-P4/P5
WASHER-SPRING,6MM
€ 0.50
30
411B0600
ref: 30
KZ1000-P1/P2/P3
WASHER-PLAIN,6MM
€ 0.50
31
410B0600
ref: 31
KZ1000-P1/P2/P3
WASHER-PLAIN-SMALL,6M
€ 0.50
32
220B0620
ref: 32
KZ1000-P1/P2/P3
SCREW-PAN HEAD,6X20
€ 2.50
33
115G0816
ref: 33
KZ1000-P1/P2/P3
BOLT-HEX,HEAD 8X16
€ 0.50
33
130D0814
ref: 33
KZ1000-P4/P5
BOLT-FLANGED
€ 0.50
34
461F0800
ref: 34
KZ1000-P1/P2/P3
WASHER-SPRING,8MM
€ 0.50
35
260111148
ref: 35
WIRE-LEAD,TURN SIGNAL
€ 20.50
36
27035001
ref: 36
HORN RELAY RUBBER
€ 13.50
37
110R0635
ref: 37
KZ1000-P1/P2/P3
BOLT 6X35
€ 3.50
38
312B0600
ref: 38
NUT,6MM
€ 0.50
39
32060014
ref: 39
BRACKET,OUTAGE SWITCH
€ 7.50
40
260011344
ref: 40
SIREN HARNESS
€ 26.00
41
260114010
ref: 41
WIRE-LEAD,PRST LAMP
€ 3.50
42
225B0620
ref: 42
KZ1000-P4/P5
SCREW-PAN-WSP-CROS
€ 2.50
43
187B0622
ref: 43
KZ1000-P4/P5
BOLT-UPSET-WSP
€ 2.50
44
187B0635
ref: 44
KZ1000-P4/P5
BOLT-UPSET-WSP
€ 0.50
45
270021051
ref: 45
KZ1000
RELAY-ASSY
€ 32.00
46
490181052
ref: 46
KZ1000
DIODE
€ 35.50
