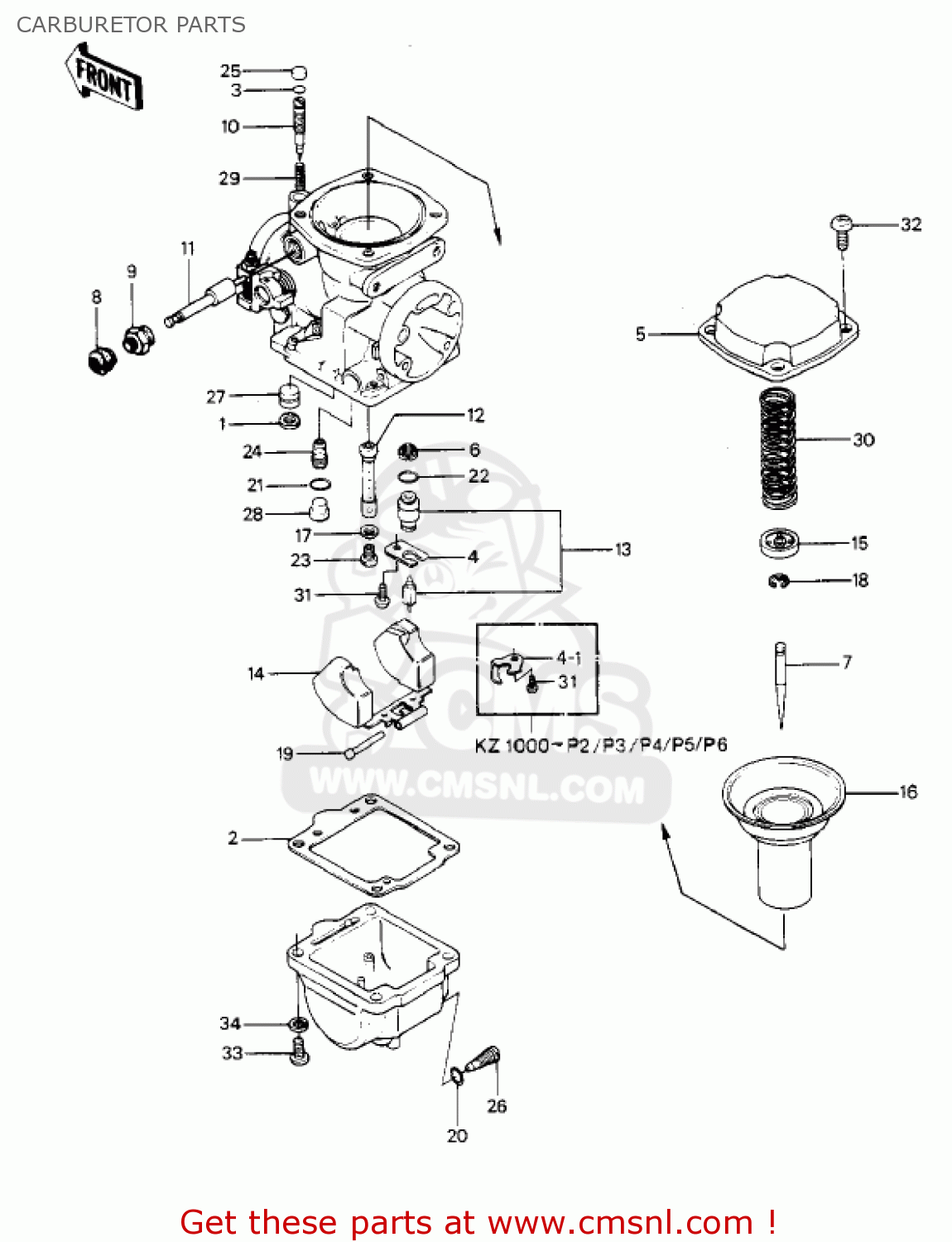

CARBURETOR PARTS

ref

part #

description

quantity

1

110091240
ref: 1
KZ1000-P1

GASKET (NAS)

€ 3.50

2

110091241
ref: 2

110091241

3

16038022
ref: 3

GASKET,O-RING

€ 4.50

4

131691190
ref: 4
KZ1000-P1

PLATE,LOCK

€ 3.50

4-1

131691482
ref: 4-1
KZ1000-P2/P3/P4/P5

PLATE,FLOAT VALVE

€ 4.00

5

140251359
ref: 5
KZ1000-P1

TOP-CHAMBER,MIXING

€ 45.50

5

140251395
ref: 5
KZ1000-P2/P3/P4/P5

TOP-CHAMBER,MIXING

€ 60.50

6

140431010
ref: 6

FILTER,FLOAT VALVE

€ 11.00

7

160091085
ref: 7
KZ1000-P1/P2/P3/P4

JET,NEEDLE

€ 20.50

7

160091285
ref: 7
KZ1000-P5

JET,NEEDLE,#5GN45

€ 20.50

8

160121010
ref: 8

CAP-STARTER PLUNGER,R

€ 17.00

9

160121011
ref: 9

CAP-STARTER PLUNGER

€ 10.50

10

160141014
ref: 10

SCREW-PILOT AIR

€ 18.00

11

160161019
ref: 11

PLUNGER

€ 34.00

12

160171086
ref: 12

JET,NEEDLE

€ 24.50

13

160301016
ref: 13

VALVE-FLOAT,2.5

€ 43.00

14

160311013
ref: 14

FLOAT

€ 46.00

15

16055010
ref: 15

PLATE,NEEDLE

€ 7.00

16

430281025
ref: 16
KZ1000-P1

DIAPHRAGM,VALVE

€ 173.50

16

161261055
ref: 16
KZ1000-P2/P3/P4

VALVE,DIAPHRAGM

€ 140.00

16

161261149
ref: 16
KZ1000-P5

DIAPHRAGM VALVE

€ 104.50

17

16034001
ref: 17

WASHER-MAIN JET

€ 2.50

18

16008014
ref: 18

CLAMP,E-TYPE

€ 5.50

19

16032008
ref: 19

PIN,FLOAT

€ 4.00

20

92055044
ref: 20

'O' RING

€ 7.00

21

920551059
ref: 21

RING-O,CHECK VALVE

€ 7.50

22

920551105
ref: 22

RING-0

€ 3.00

23

920631101
ref: 23
STD. KZ1000-P1/P2/P3

JET-MAIN,#A122.5

€ 9.50

23

920631100
ref: 23
STD. KZ1000-P5

JET-MAIN,#A127.5

€ 9.50

23

920631107
ref: 23
KZ1000-P1/P2/P3/P4

JET-MAIN,#A117.5

€ 11.50

23

920631106
ref: 23

JET-MAIN,#A120

€ 11.50

23

920631102
ref: 23

JET-MAIN,#A125

€ 9.50

23

920631103
ref: 23
KZ1000-P5

JET-MAIN,#A130

€ 9.50

23

920631104
ref: 23
KZ1000-P5

JET-MAIN,#A132.5

€ 9.50

24

920641036
ref: 24

JET-PILOT,#A37.5

€ 13.50

25

920661051
ref: 25

PLUG,PILOT AIR SCREW,

€ 3.00

26

920661064
ref: 26

SCREW,DRAIN

€ 8.50

27

920661086
ref: 27
KZ1000-P1

PLUG,CARBURETOR

€ 2.00

28

920661087
ref: 28

PLUG,PILOT JET

€ 4.00

29

16022016
ref: 29

SPRING, PILOT SCREW

€ 6.00

30

920811363
ref: 30

SPRING,DPHRGM VALVE

€ 16.00

31

220B0406
ref: 31

SCREW-PAN-CROS,4X6

€ 2.50

32

220B0510
ref: 32
KZ1000-P1

SCREW-PAN-CROS,5X10

€ 0.50

32

220B0508
ref: 32
KZ1000-P2/P3/P4/P5

SCREW-PAN-CROS,5X8

€ 0.50

33

220B0514
ref: 33
KZ1000-P1/P2/P3

ACREW-PAN HEAD,5X14

€ 2.50

34

461F0500
ref: 34
KZ1000-P1/P2/P3

WASHER-SPRING,5MM

€ 0.50

35

223B0518
ref: 35
KZ1000-P4/P5

SCREW-PAN-WS-CROS

€ 2.50
