FAIRING
KZ1000P3 POLICE 1000 1984 USA

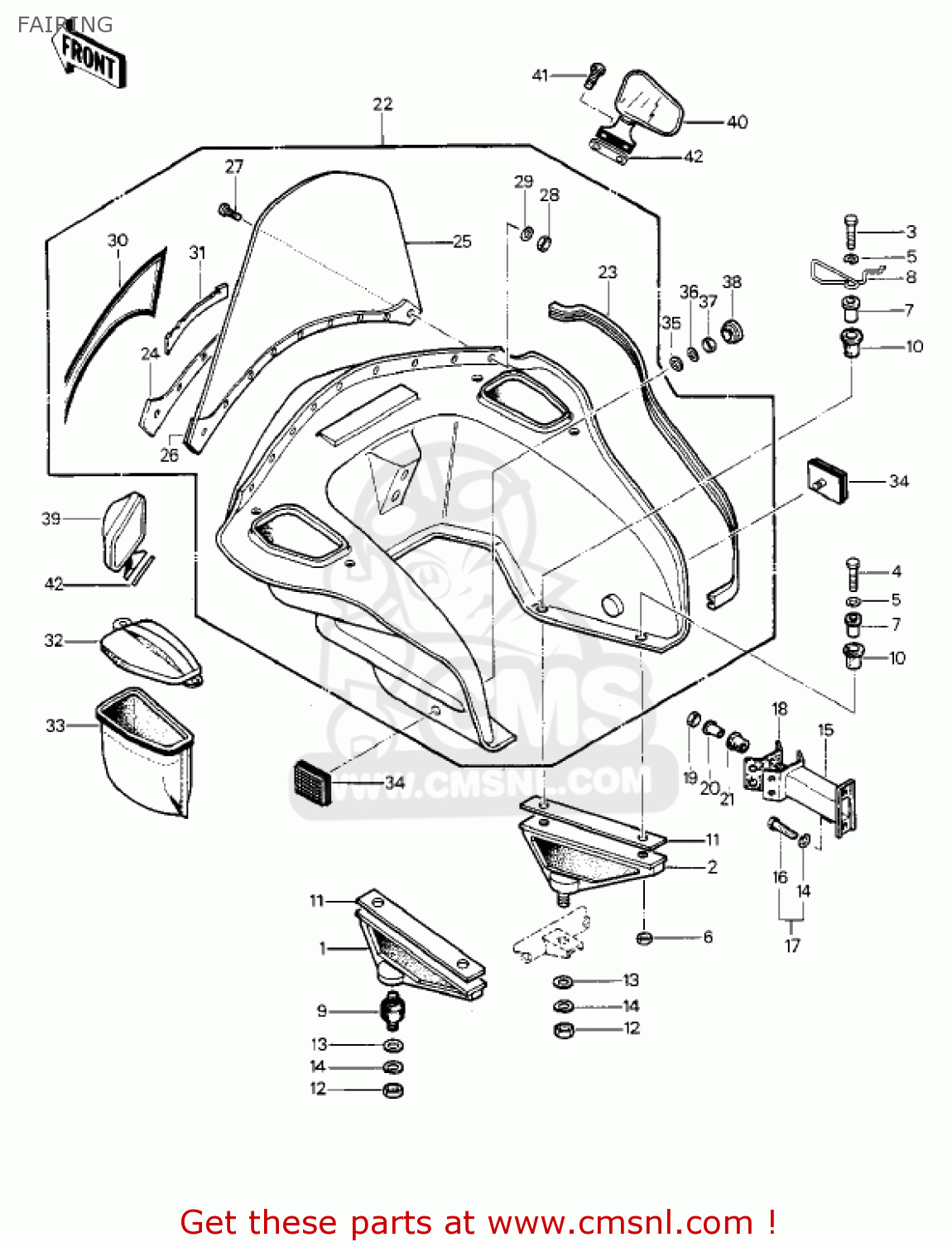

Fairing diagram KZ1000P3 POLICE 1000 1984 USA
FAIRING KZ1000P3 POLICE 1000 1984 USA
×
prices are in EUR
ref
part #
description
quantity
1
110344144
ref: 1
COWLING BRACKET,LH
€ 79.00
2
110344143
ref: 2
COWLING BRACKET,RH
€ 79.00
3
114N0830
ref: 3
BOLT-SMALL,8X30
€ 2.50
4
114N0835
ref: 4
BOLT,HEX HEAD,8X35
€ 1.50
5
461F0800
ref: 5
WASHER-SPRING,8MM
€ 0.50
6
920151124
ref: 6
NUT,LOCK,8MM
€ 3.50
7
920274015
ref: 7
COLLAR,FR COWLING
€ 7.00
8
920374005
ref: 8
CLAMP
€ 19.50
9
920754013
ref: 9
DAMPER,RUBBER
€ 13.00
10
920754020
ref: 10
DAMPER
€ 1.50
11
920754033
ref: 11
COWLING BRACKET DAMPER
€ 4.00
12
350BA1000
ref: 12
NUT
€ 2.50
13
411B0800
ref: 13
WASHER-PLAIN,8MM
€ 0.50
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
110344089
ref: 15
COWLING BRACKET,FRONT
€ 66.50
16
115G0816
ref: 16
KZ1000-P1/P2/P3
BOLT-HEX,HEAD 8X16
€ 0.50
17
183G0816
ref: 17
KZ1000-P4/P5
BOLT-UPSET-WS-SMALL
€ 2.50
18
920751179
ref: 18
DAMPER,COWLING FITTIN
€ 8.00
19
920151124
ref: 19
NUT,LOCK,8MM
€ 3.50
20
920274015
ref: 20
COLLAR,FR COWLING
€ 7.00
21
920754020
ref: 21
DAMPER
€ 1.50
22
5502740018C
ref: 22
KZ1000-P1/P2
COWLING ASSEMBLY,JET WHITE
€ 861.00
22
5502740038C
ref: 22
KZ1000-P2/P3/P4/P5
COWLING-ASSY,J.WHITE
€ 2,241.00
23
530444001
ref: 23
TRIM
€ 30.50
24
131694014
ref: 24
WINDSHIELD PLATE
€ 25.00
25
391544003
ref: 25
WINDSHIELD
€ 560.50
26
560424003
ref: 26
ADHESIVE
€ 3.50
27
920094005
ref: 27
SCREW,PLASTIC 5X28
€ 1.00
28
920154014
ref: 28
NUT,PLASTIC,5MM
€ 1.00
29
920224015
ref: 29
WASHER,PLAIN,PLASTIC,5MM
€ 0.50
30
560274056
ref: 30
PATTERN,PINSTRIPE,LH
€ 9.50
30
560274055
ref: 30
PATTERN,PINSTRIPE,RH
€ 9.50
31
560144011
ref: 31
EMBLEM
€ 13.50
32
140254013
ref: 32
COVER
€ 19.50
33
560084003
ref: 33
BAG
€ 39.50
34
280121003
ref: 34
REFLECTOR,REFLEX
€ 15.00
35
411B0500
ref: 35
WASHER-PLAIN,5MM
€ 0.50
36
461F0500
ref: 36
WASHER-SPRING,5MM
€ 0.50
37
311B0500
ref: 37
NUT-HEX
€ 0.50
38
92074027
ref: 38
PLUG,25X2.5
€ 6.50
39
560014002
ref: 39
-F/NO. 501620
MIRROR ASSEMBLY
€ 47.00
40
560014003
ref: 40
-F/NO. 501620
MIRROR ASSEMBLY
€ 57.50
41
920094006
ref: 41
-F/NO. 501620
SCREW
€ 0.50
42
920751230
ref: 42
-F/NO. 501620
REAR VIEW MIRROR DAMPER
€ 10.00
